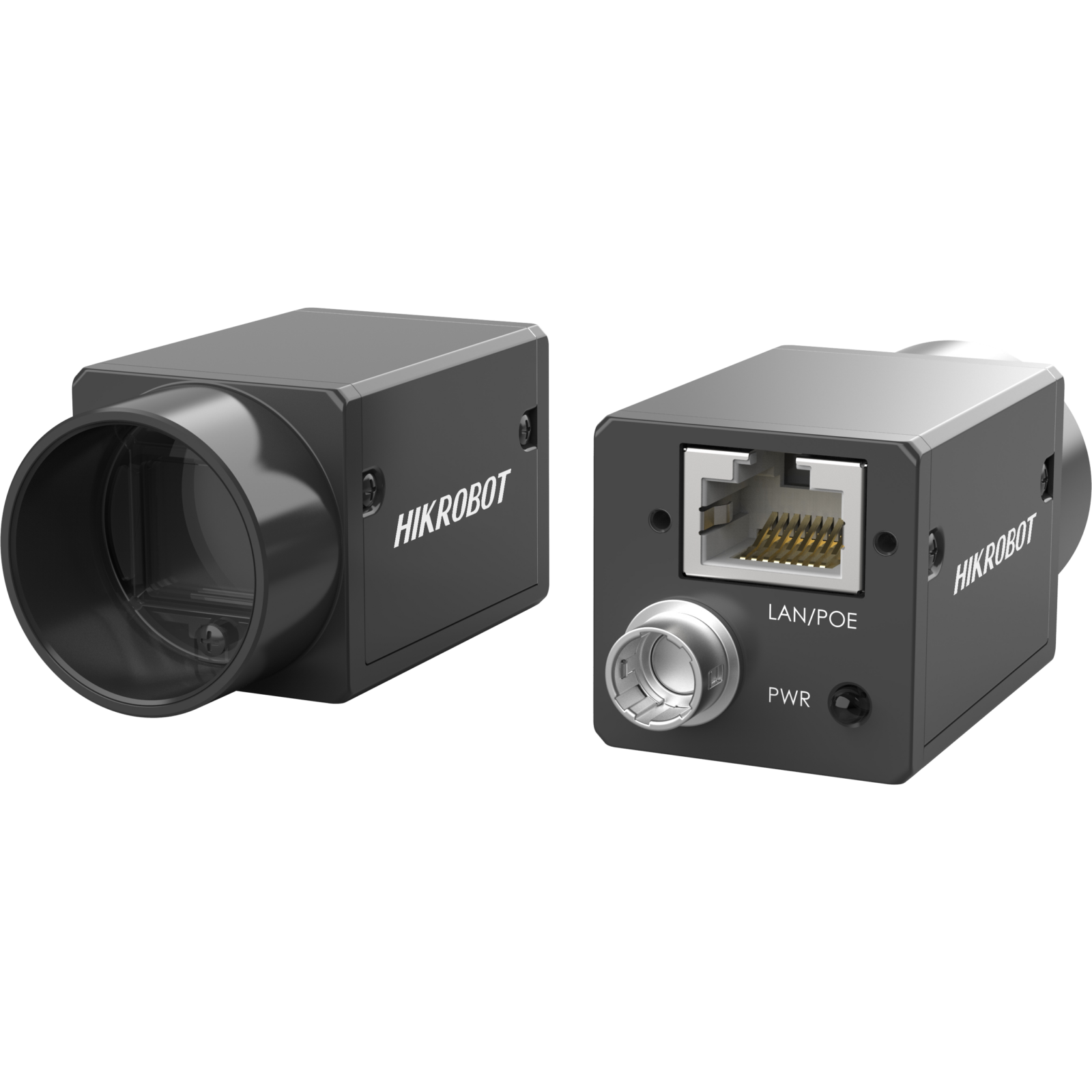

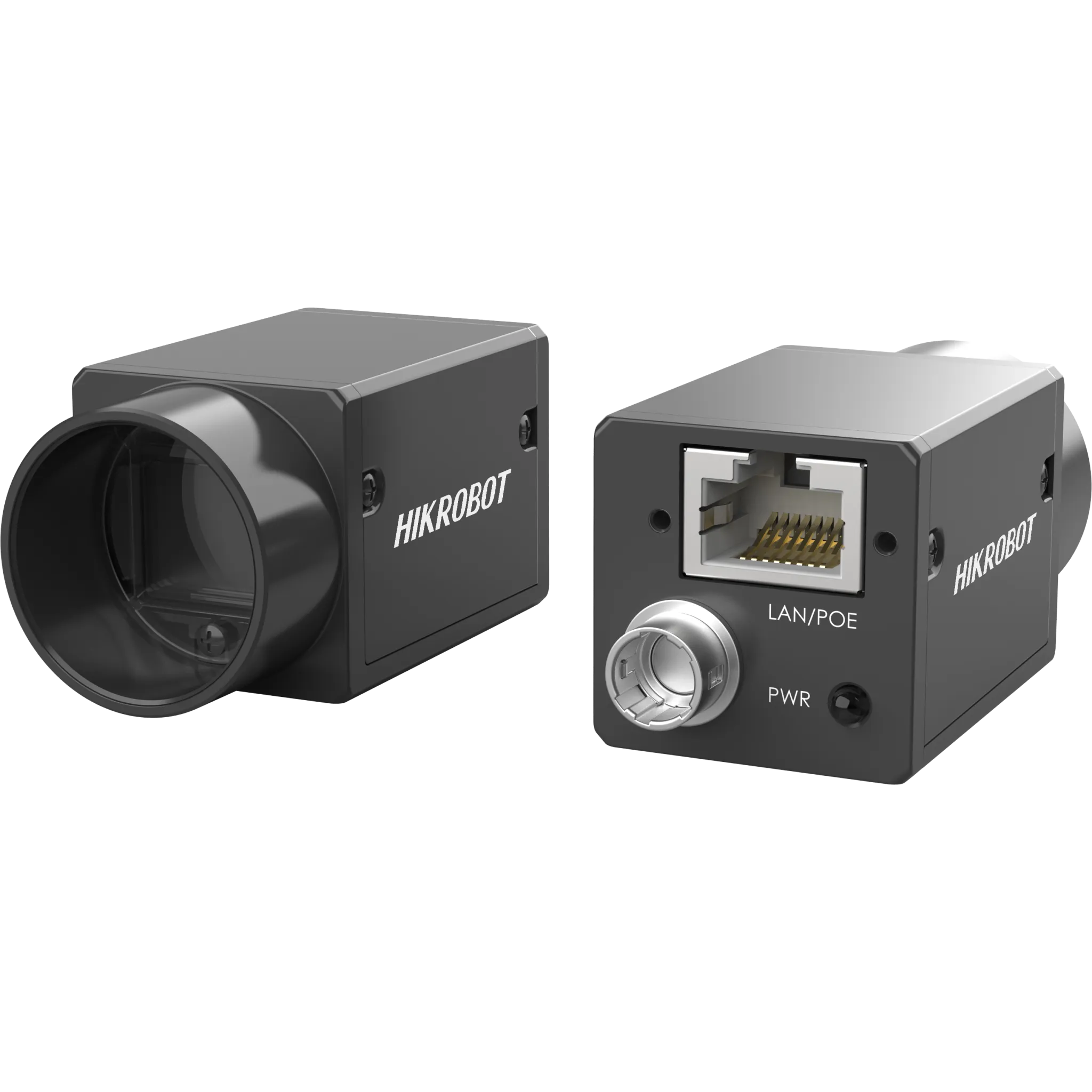

Area Scan Camera, 0.3MP, GigE, PYTHON300, Color
Adopts GigE interface and max. transmission distance of 100 meters without relay.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Up to 128 MB of onboard memory supports burst transmission and retransmission. Offers auto exposure control, LUT, and gamma correction. Supports hardware and software triggering, among other modes. Works with the GigE Vision V1.2 protocol and compatible third-party software.
Product Highlights
Connects via GigE, with cable runs up to 100 m and no repeater required. — Up to 128 MB of onboard memory supports burst transmission and retransmission. — Offers auto exposure control, LUT, and gamma correction. — Supports hardware and software triggering, among other modes. — Works with the GigE Vision V1.2 protocol and compatible third-party software.
Specifications
| Product Model | MV-CA003-20GC |
|---|---|
| Type | Area Scan Camera, 0.3MP, GigE, PYTHON300, Color |
| Sensor Type | CMOS, global shutter |
| Sensor Model | PYTHON300 |
| Pixel Size | 4.8 μm × 4.8 μm |
| Sensor Size | 1/4" |
| Resolution | 672 × 512 |
| Max Frame Rate | 336 fps @672 × 512 |
| Dynamic Range | 59 dB |
| SNR | 39.9 dB |
| Gain | 0 dB to 15 dB |
| Exposure Time | 40 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono8/10/12, Bayer RG 8/10/10p/12/12p, YUV 422 Packed, YUV422_YUYV_Packed, RGB 8 |
| Binning | Supports 1 × 1, 1 × 2, 2 × 1, 1 × 4, 4 × 1, 2 × 2, 2 × 4, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | Gigabit Ethernet, compatible with Fast Ethernet |
| Digital I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 12 VDC, supports PoE |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 68 g (0.15 lb.) |
| Ingress Protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 32/64-bit Linux |
| Compatibility | GigE Vision V1.2, GenICam |
| Certification | CE, RoHS, KC |
| Mono | Color |
| Power Consumption 2 | Typ. 2.6 W @ 12 VDC |
| Image Buffer | 128 MB |
