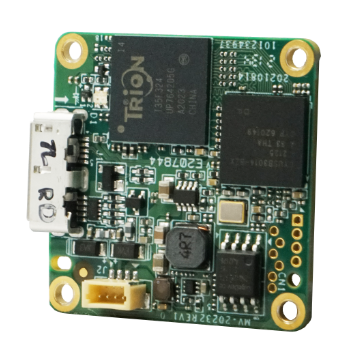

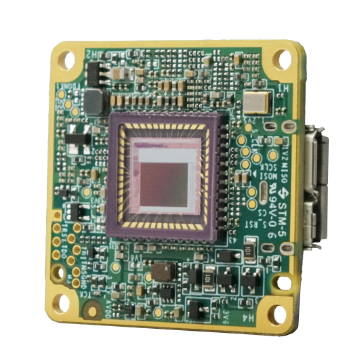

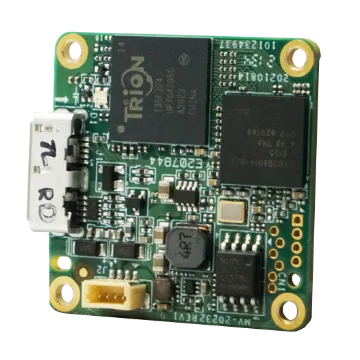

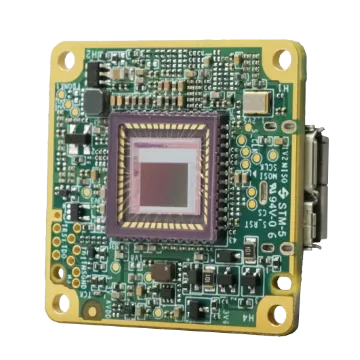

Board Level Camera, 1.3MP, USB3, ISG1307, Mono, C-mout
Compact design for flexible installation.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Offers auto or manual gain, exposure, white balance, gamma correction, and LUT. Image interpolation algorithm improves colour accuracy on colour models. USB 3.0 interface for power and data. Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Product Highlights
Compact design for flexible installation. — Offers auto or manual gain, exposure, white balance, gamma correction, and LUT. — Image interpolation algorithm improves colour accuracy on colour models. — USB 3.0 interface for power and data. — Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Specifications
| Product Model | MV-CB013-A0UM-C |
|---|---|
| Type | Board Level Camera, 1.3MP, USB3, ISG1307, Mono, C-mout |
| Sensor Type | CMOS, global shutter |
| Pixel Size | 4.8 μm × 4.8 μm |
| Sensor Size | 1/2" |
| Resolution | 1280 × 1024 |
| Max Frame Rate | 201 fps @1280 × 1024 |
| Dynamic Range | 53 dB |
| SNR | 40 dB |
| Gain | 0 dB to 16 dB |
| Exposure Time | 9 μs to 10 sec |
| Exposure Mode | Off/ Once/ Continuous exposure mode |
| Pixel Format | Mono 8/10/10p/12/12p |
| Mono Color | Mono |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | USB3.0 |
| Digital I/O | Bi-directional non-isolated I/O × 2 (Line 2, Line 5) |
| Power Supply | USB3.0 power supply |
| Lens Mount | C-mount |
| Dimension | 35 mm × 35 mm × 8.6 mm (1.4" × 1.4" × 0.3") |
| Weight | Approx. 30 g (0.07 lb.) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 80% RH, non-condensing |
| Client Software | MVS or third-party software compatible with USB3 Vision Protocol |
| Operating System | 32/64-bit Windows XP/7/10, 32/64-bit Linux, and 64-bit MacOS |
| Compatibility | USB3 Vision, GenICam |
| Certification | CE, FCC, RoHS, KC |
| Power Consumption 2 | Typ. 1.6 W@5 VDC (USB3.0 provides power supply) |
