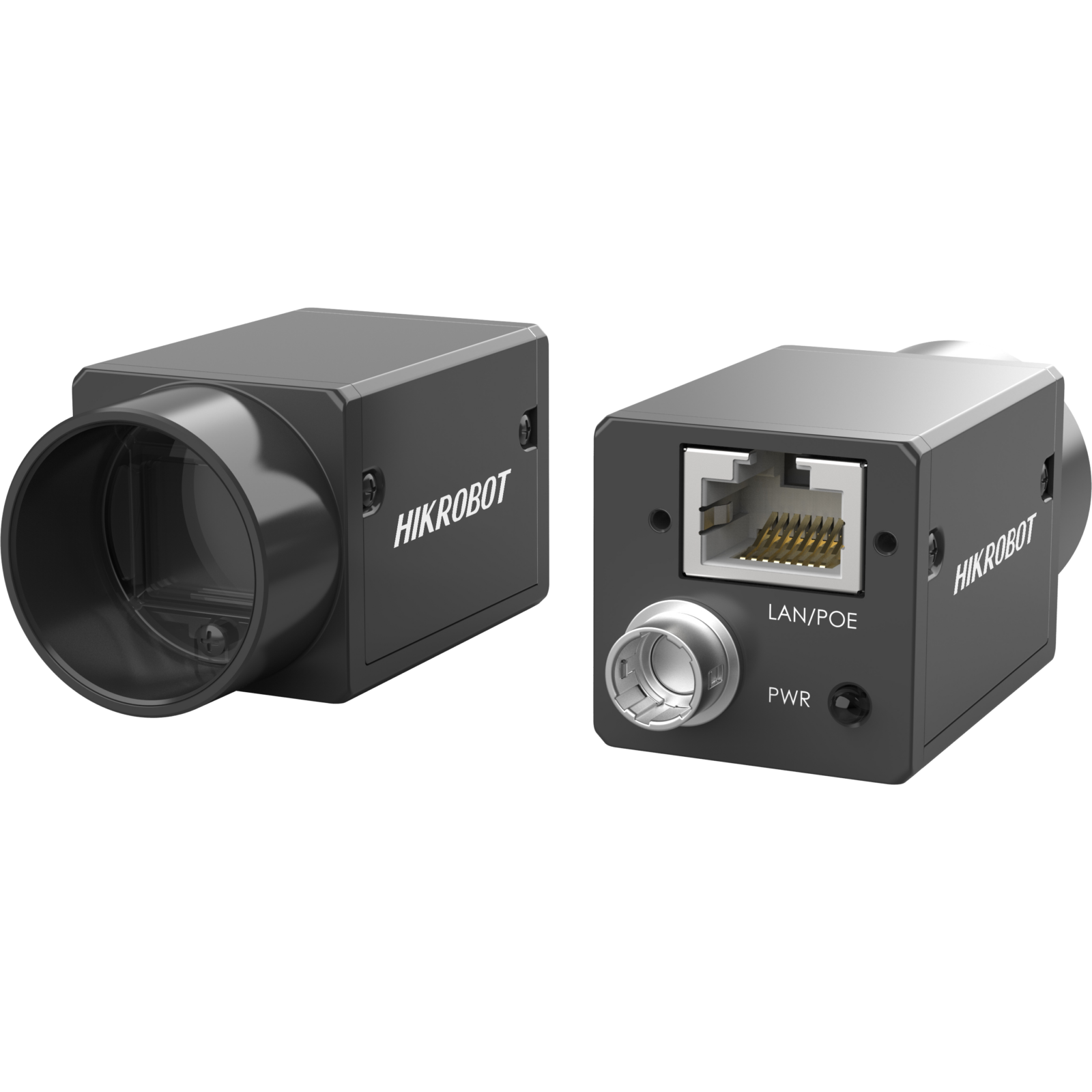

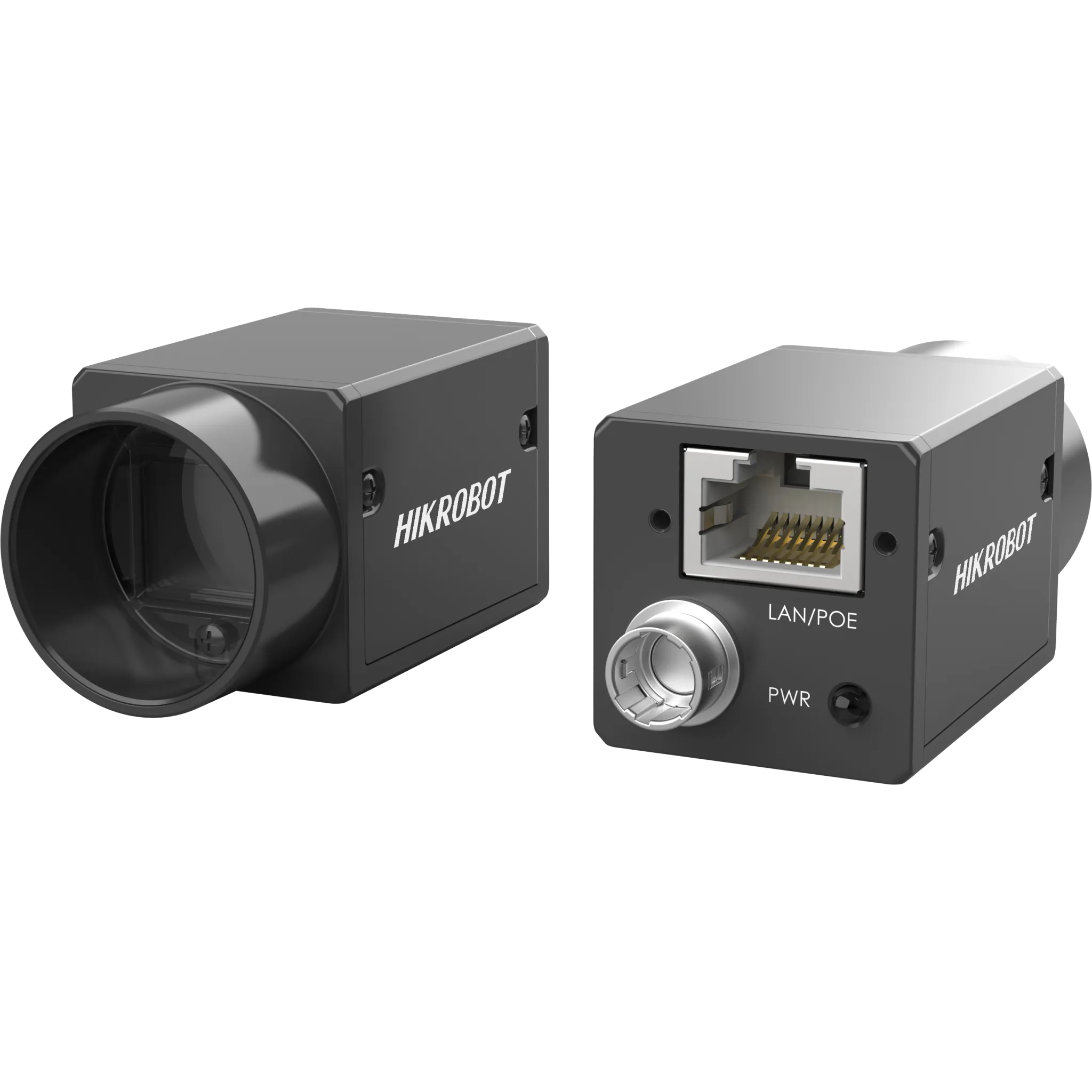

Area Scan Camera, 1.6MP, GigE, IMX273, Color
Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Connects via GigE, with cable runs up to 100 m and no repeater required.
- Offers auto and manual control of exposure, LUT, and gamma correction.
- Up to 128 MB of onboard memory supports burst transmission and retransmission.
- Supports hardware and software triggering, among other modes.
- Works with the GigE Vision V2.0 protocol, the GenICam standard, and protocol-compliant third-party software.
Camera Solutions
Area Scan Camera, 1.6MP, GigE, IMX273, Color is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CA016-10GC. Key data: resolution 1440 × 1080, sensor type CMOS, global shutter, max frame rate 78.2 fps @ 1440 × 1080. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Offers auto and manual control of exposure, LUT, and gamma correction. Up to 128 MB of onboard memory supports burst transmission and retransmission. Supports hardware and software triggering, among other modes. Works with the GigE Vision V2.0 protocol, the GenICam standard, and protocol-compliant third-party software.
Product Highlights
Connects via GigE, with cable runs up to 100 m and no repeater required. — Offers auto and manual control of exposure, LUT, and gamma correction. — Up to 128 MB of onboard memory supports burst transmission and retransmission. — Supports hardware and software triggering, among other modes. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and protocol-compliant third-party software.
Specifications
| Product Model | MV-CA016-10GC |
|---|---|
| Type | Area Scan Camera, 1.6MP, GigE, IMX273, Color |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Sony® IMX273 |
| Pixel Size | 3.45 μm × 3.45 μm |
| Sensor Size | 1/2.9" |
| Resolution | 1440 × 1080 |
| Max Frame Rate | 78.2 fps @ 1440 × 1080 |
| Dynamic Range | 71.4 dB |
| SNR | 41 dB |
| Gain | Gain 0 dB to 20 dB |
| Exposure Time | 1 μs to 10 sec |
| Exposure Mode | Off/ Once /Continuous exposure mode |
| Pixel Format | Mono8/10/12, Bayer RG 8/10/10p/12/12p YUV 422 Packed, YUV422_YUYV_Packed, RGB8 |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | Gigabit Ethernet, compatible with Fast Ethernet |
| Digital I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports PoE |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 68 g (0.15 lb) |
| Ingress Protection | IP 30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenlCam |
| Certification | CE, RoHS |
| Mono | Color |
| Power Consumption 2 | Typ. 3 W @ 12 VDC |
| Image Buffer | 128 MB |
