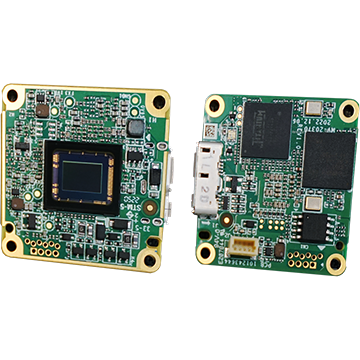

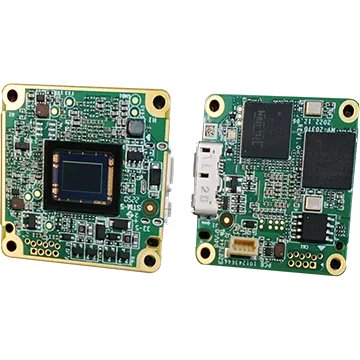

Board Level Camera, 1.6MP, USB3, IMX273, Mono, C-mount
Supports auto and manual adjustment for gain, exposure control, white balance, LUT, etc.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Image interpolation algorithm improves colour accuracy on colour models. Power and data via USB 3.0 interface. Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Product Highlights
Offers auto and manual gain, exposure, white balance, and LUT. — Image interpolation algorithm improves colour accuracy on colour models. — Power and data via USB 3.0 interface. — Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Specifications
| Product Model | MV-CB016-10UM-C |
|---|---|
| Type | Board Level Camera, 1.6MP, USB3, IMX273, Mono, C-mount |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Sony® IMX273 |
| Pixel Size | 3.45 μm × 3.45 μm |
| Sensor Size | 1/2.9" |
| Resolution | 1440 × 1080 |
| Max Frame Rate | 165.4 fps @ 1440 × 1080 Mono 8 (ADC 12) 249.1 fps @ 1440 × 1080 Mono 8 (ADC 8) |
| Dynamic Range | 71.5 dB |
| SNR | 39.9 dB |
| Gain | 0 dB to 17 dB |
| Exposure Time | UltraShort exposure mode: 1 μs to 14 μs Standard exposure mode: 15 μs to 10 sec |
| Exposure Mode | Off/ Once/ Continuous exposure mode |
| Pixel Format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | USB 3.0 |
| Digital I/O | Bi-directional non-isolated I/O × 2 (Line 2, Line 5) |
| Power Supply | USB 3.0 power supply |
| Lens Mount | C-mount |
| Weight | Approx. 30 g (0.07 lb.) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client Software | MVS or third-party software with USB3 Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenICam |
| Certification | CE, RoHS, KC |
| Mono | Mono |
| Power Consumption 2 | Typ. 1.5 W @ 5 VDC |
| Dimension Without Lens | 35 mm × 35 mm × 8.6 mm (1.4" × 1.4" × 0.3") |
