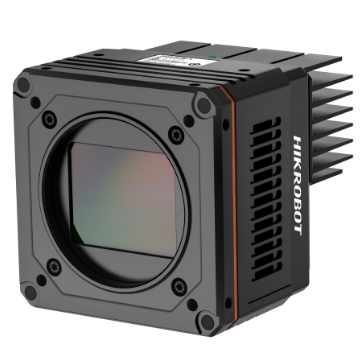

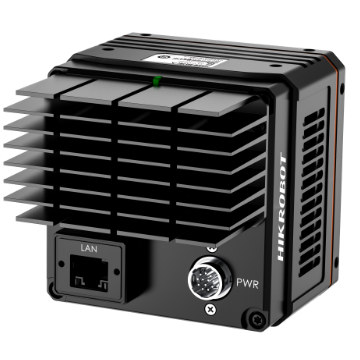

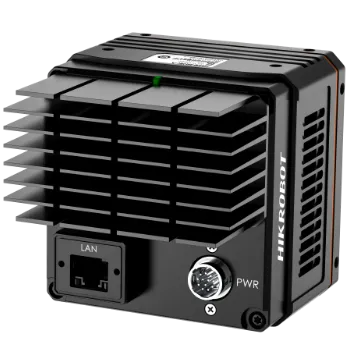

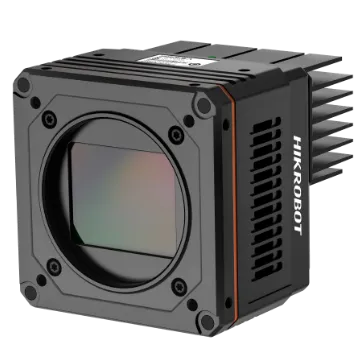

Area Scan Camera, 103MP, 10GigE, GMAX32103, Mono
Resolution of 11276 × 9200, pixel size of 3.2 μm × 3.2 μm.
- Resolution of 11276 × 9200 with 3.2 µm × 3.2 µm pixels.
- Offers auto or manual exposure and white balance, plus manual gain, gamma correction, and LUT.
- Connects via 10 GigE, with cable runs up to 100 m and no repeater required.
- Mounting holes for flexible installation.
- Works with the GigE Vision V2.0 protocol, the GenICam standard, and protocol-compliant third-party software.
Camera Solutions
Area Scan Camera, 103MP, 10GigE, GMAX32103, Mono is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CH1030-90TM-M58S-NN. Key data: resolution 11264 × 9200, sensor type CMOS, global shutter, max frame rate 11 fps @ 11264 × 9200 Mono 8. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Offers auto or manual exposure and white balance, plus manual gain, gamma correction, and LUT. Connects via 10 GigE, with cable runs up to 100 m and no repeater required. Mounting holes for flexible installation. Works with the GigE Vision V2.0 protocol, the GenICam standard, and protocol-compliant third-party software.
Product Highlights
Resolution of 11276 × 9200 with 3.2 µm × 3.2 µm pixels. — Offers auto or manual exposure and white balance, plus manual gain, gamma correction, and LUT. — Connects via 10 GigE, with cable runs up to 100 m and no repeater required. — Mounting holes for flexible installation. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and protocol-compliant third-party software.
Specifications
| Product Model | MV-CH1030-90TM-M58S-NN |
|---|---|
| Type | Area Scan Camera, 103MP, 10GigE, GMAX32103, Mono |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Gpixel GMAX32103 |
| Pixel Size | 3.2 μm × 3.2 μm |
| Sensor Size | 46.6 mm |
| Resolution | 11264 × 9200 |
| Max Frame Rate | 11 fps @ 11264 × 9200 Mono 8 |
| Dynamic Range | 64.86 dB |
| SNR | 39.88 dB |
| Gain | 1.4 × to 5.2 × |
| Exposure Time | 20 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/10Packed/12/12Packed |
| Mono Color | Mono |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | 10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1 |
| Power Supply | 12 VDC to 24 VDC |
| Lens Mount | M58*0.75, flange back length 11.48 mm |
| Dimension | 84 mm × 84 mm × 92.5 mm (3.3" × 3.3" × 3.6") |
| Weight | 738 g (1.6 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows XP/7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 12.6 W @ 12 VDC |
