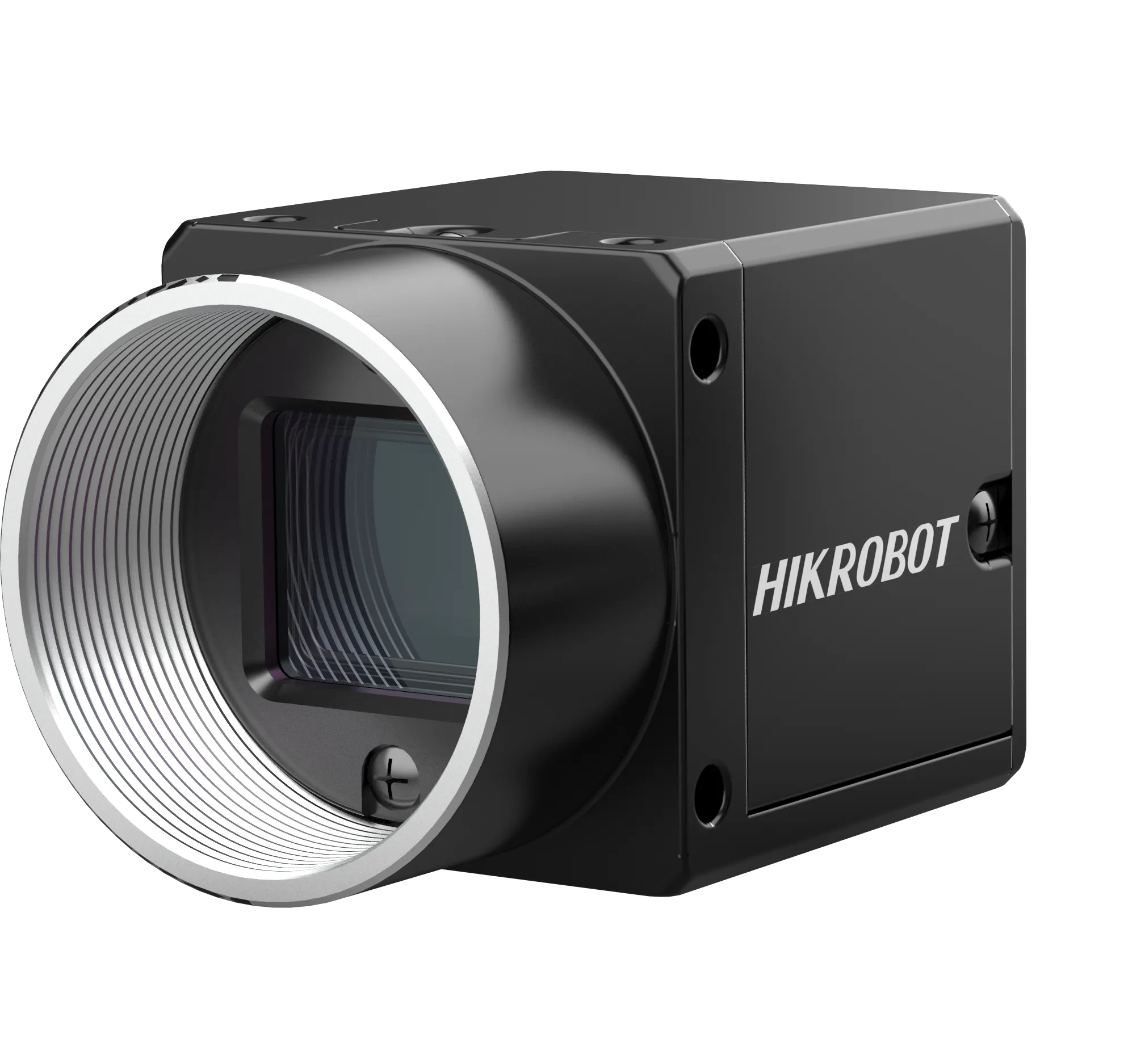

Area Scan Camera, 12.3MP, USB3, IMX545, Color
Supports LSC, sequencer, passive transfer function, etc.
- Supports LSC, Sequencer, and passive transfer.
- Colour models support interpolation, white balance, CCM, Super Palette, and Super Bayer.
- New design with four-side installation.
- Compact design fits tight spaces.
- Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Camera Solutions
Area Scan Camera, 12.3MP, USB3, IMX545, Color is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CH123-10UC. Key data: resolution 4096 × 3000, sensor type CMOS, global shutter, max frame rate 31.5 fps @ 4096 × 3000 Bayer RG 8, data interface USB 3.0, compatible with USB 2.0. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Colour models support interpolation, white balance, CCM, Super Palette, and Super Bayer. New design with four-side installation. Compact design fits tight spaces. Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Product Highlights
Supports LSC, Sequencer, and passive transfer. — Colour models support interpolation, white balance, CCM, Super Palette, and Super Bayer. — New design with four-side installation. — Compact design fits tight spaces. — Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Specifications
| Product Model | MV-CH123-10UC |
|---|---|
| Type | Area Scan Camera, 12.3MP, USB3, IMX545, Color |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Sony® IMX545 |
| Pixel Size | 2.74 μm × 2.74 μm |
| Sensor Size | 1/1.1" |
| Resolution | 4096 × 3000 |
| Max Frame Rate | 31.5 fps @ 4096 × 3000 Bayer RG 8 |
| Dynamic Range | 69.4 dB |
| SNR | 39.4 dB |
| Gain | 0 dB to 24 dB |
| Exposure Time | UltraShort exposure mode: 1 μs to 2 μs Standard exposure mode: 3 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/12, Bayer RG 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed RGB 8, BGR 8 |
| Mono Color | Color |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | USB 3.0, compatible with USB 2.0 |

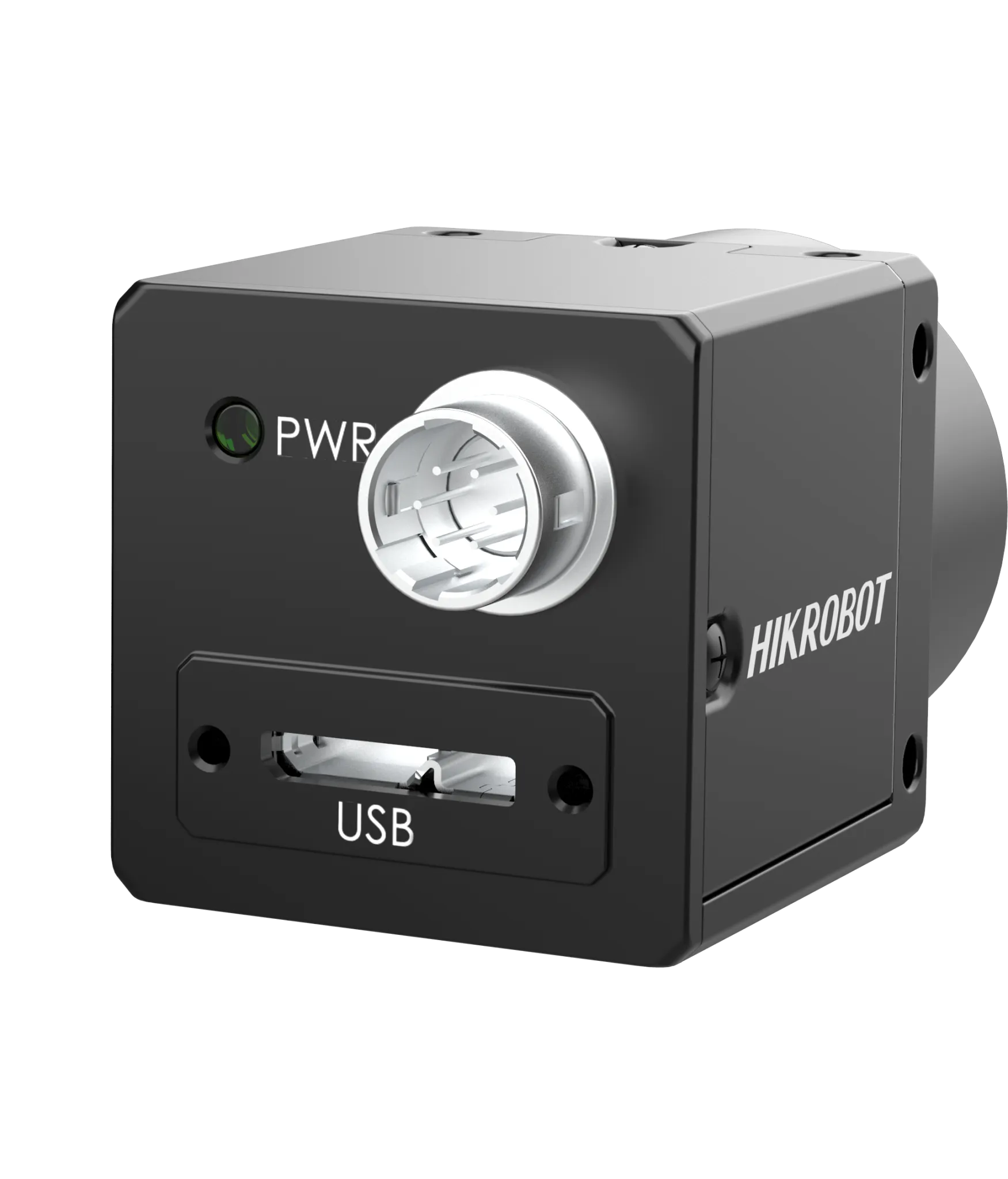

| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports USB 3.0 power supply |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 80 g (0.2 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenICam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 2.3 W @ 5 VDC (USB 3.0 provides power supply) |
