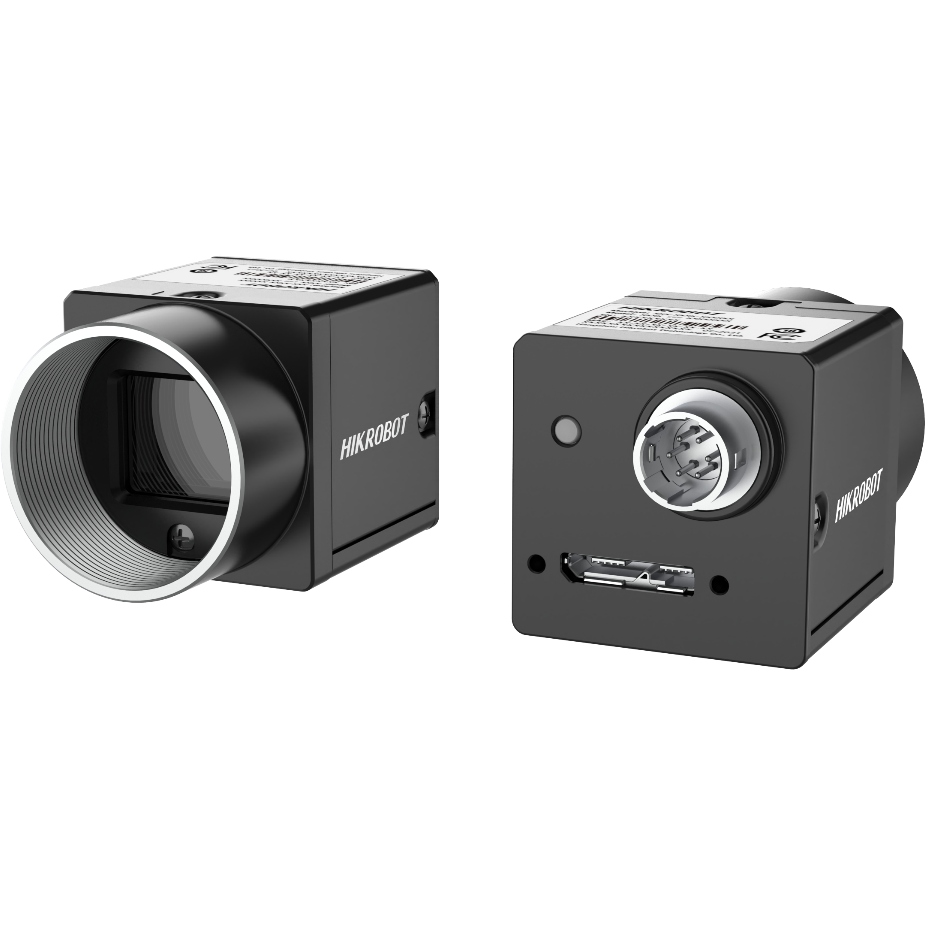

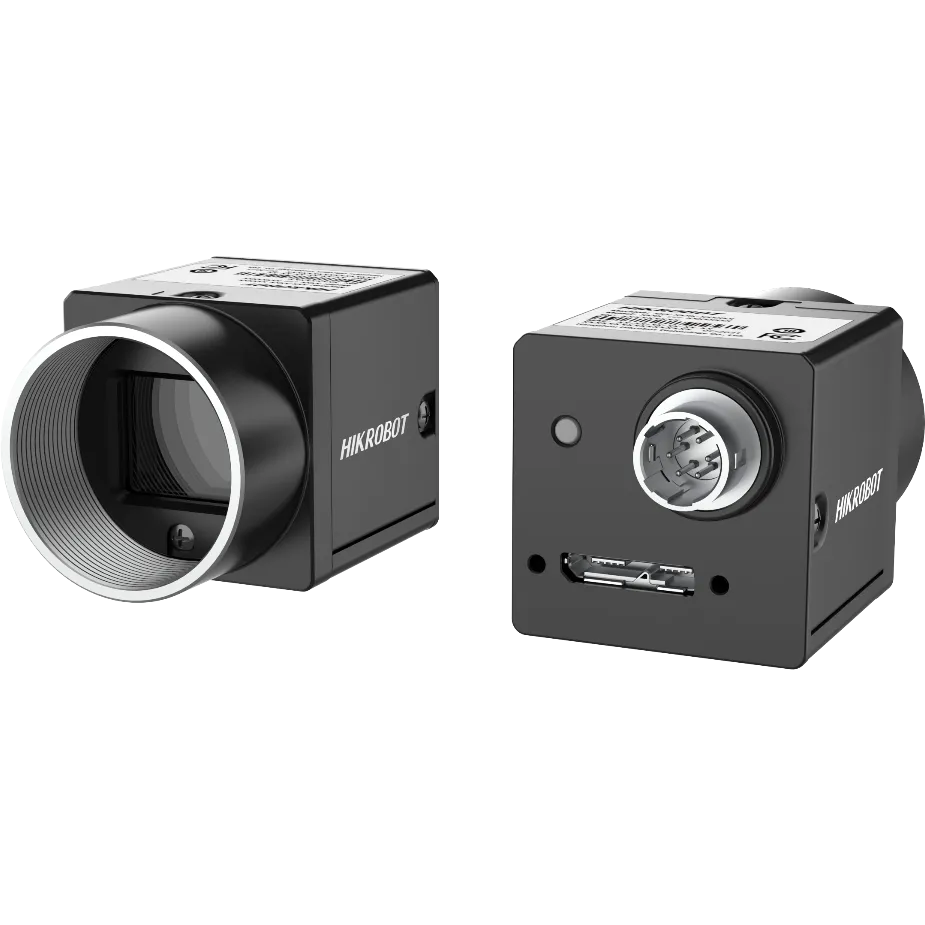

Area Scan Camera, 12MP, USB3, IMX226, Mono
Adopts brand new design to reduce power consumption.
- Redesigned for lower power consumption.
- Offers auto or manual gain and exposure, plus manual LUT and gamma correction.
- Supports custom ROI and horizontal/vertical image flipping.
- Compact design fits tight spaces.
- Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Camera Solutions
Area Scan Camera, 12MP, USB3, IMX226, Mono is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CU120-10UM. Key data: resolution 4024 × 3036, sensor type CMOS, rolling shutter, max frame rate 29.2 fps @4024 × 3036 Mono 8, data interface USB3.0, compatible with USB2.0. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Area Scan Camera, 12MP, GigE, IMX226, Color, with PoE (MV-CU120-10GC)
- Area Scan Camera, 12MP, GigE, IMX226, V2, Color (MV-CU120-10GC V2)
- Area Scan Camera, 12MP, GigE, IMX226, Mono, with PoE (MV-CU120-10GM)
- Area Scan Camera, 12MP, GigE, IMX226, V2, Mono (MV-CU120-10GM V2)
- Area Scan Camera, 12MP, USB3, IMX226, Color (MV-CU120-10UC)
Description
Offers auto or manual gain and exposure, plus manual LUT and gamma correction. Supports custom ROI and horizontal/vertical image flipping. Compact design fits tight spaces. Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Product Highlights
Redesigned for lower power consumption. — Offers auto or manual gain and exposure, plus manual LUT and gamma correction. — Supports custom ROI and horizontal/vertical image flipping. — Compact design fits tight spaces. — Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Specifications
| Product Model | MV-CU120-10UM |
|---|---|
| Type | Area Scan Camera, 12MP, USB3, IMX226, Mono |
| Sensor Type | CMOS, rolling shutter |
| Sensor Model | Sony® IMX226 |
| Pixel Size | 1.85 μm × 1.85 μm |
| Sensor Size | 1/1.7" |
| Resolution | 4024 × 3036 |
| Max Frame Rate | 29.2 fps @4024 × 3036 Mono 8 |
| Dynamic Range | 69.4 dB |
| SNR | 40.3 dB |
| Gain | 0 dB to 24 dB |
| Exposure Time | 20 μs to 0.5 sec |
| Exposure Mode | Off/Once/Continuous exposure mode, supports Global Reset and Rolling |
| Pixel Format | Mono 8/10/10Packed/12/12Packed |
| Mono Color | Mono |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | USB3.0, compatible with USB2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports USB3.0 power supply |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 76 g (0.2 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 80% RH, non-condensing |
| Client Software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating System | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 1.9 W@5 VDC (USB3.0 provides power supply) |
