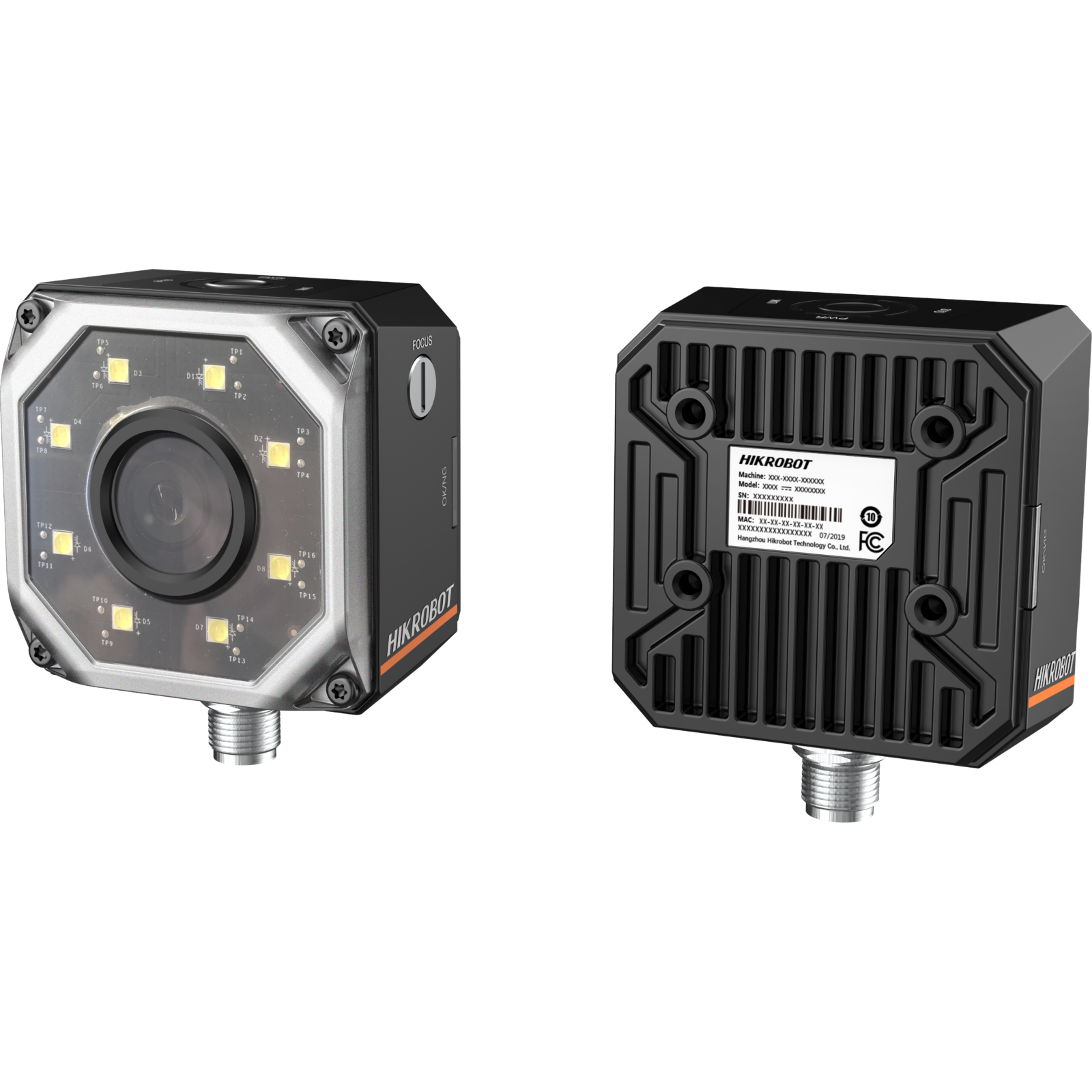

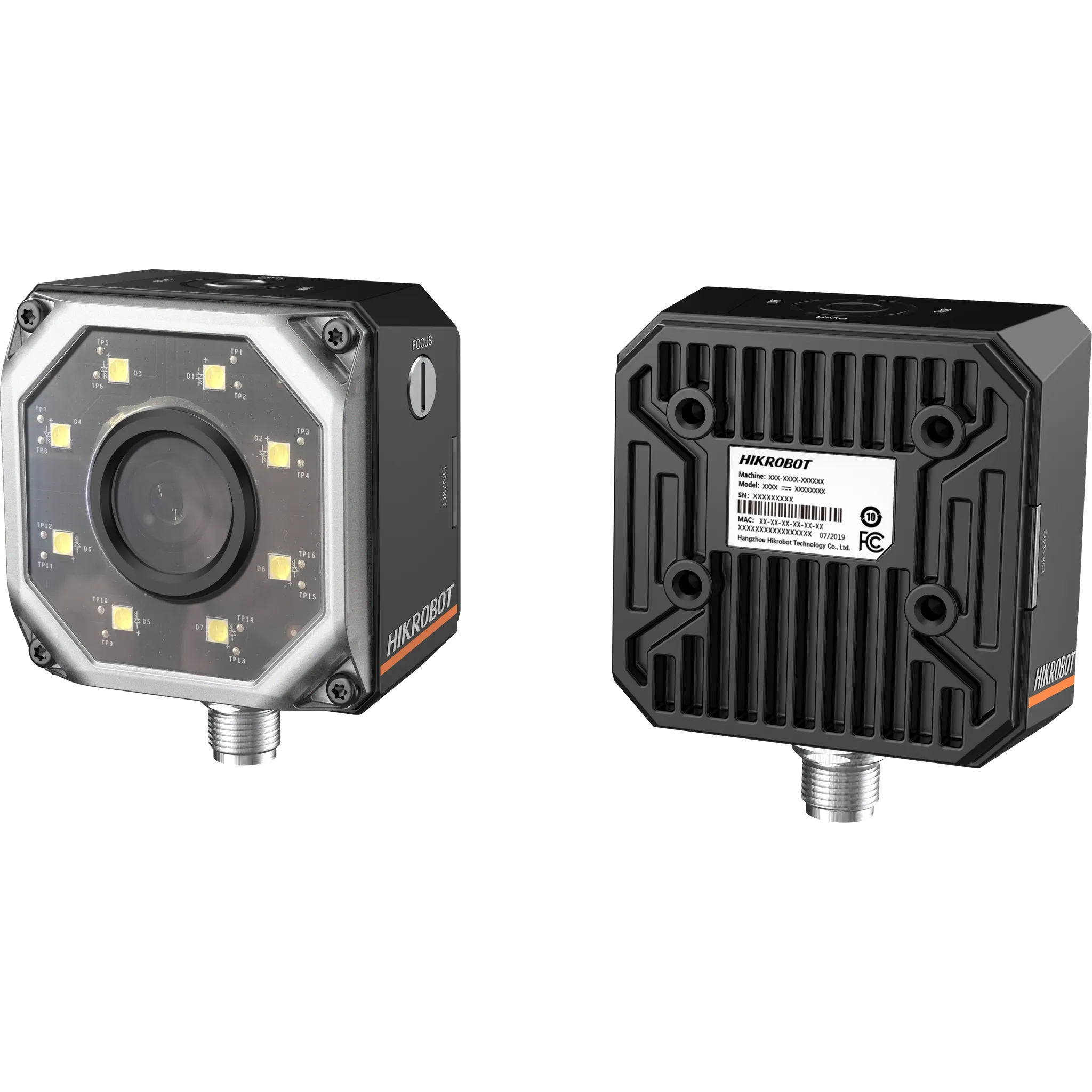

Compact Industrial Code Reader, 14.8mm Mechanical Autofocus len 1.6MP PRO Series
Adopts built-in deep learning algorithm to read codes with good robustness.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
I/O interfaces carry input and output signals. Speaks multiple protocols: TCP, Serial, FTP, and PROFINET. A CMOS sensor captures high-quality image data. RS-232 serial port and status indicators.
Product Highlights
A built-in deep-learning algorithm reads codes robustly. — I/O interfaces carry input and output signals. — Speaks multiple protocols: TCP, Serial, FTP, and PROFINET. — A CMOS sensor captures high-quality image data. — RS-232 serial port and status indicators.
Specifications
| Product Model | MV-ID3016PM-15M-WBN |
|---|---|
| Type | Compact Industrial Code Reader, 14.8mm Mechanical Autofocus len 1.6MP PRO Series |
| Symbologies | 1-dimensional codes: Code 39, Code 93, Code 128, ITF 25, CodaBar, EAN, MATRIX 25, MSI, Industrial 25, China Post, Code 11 2-dimensional codes: QR Code, Data Matrix |
| Max Frame Rate | 60 fps |
| Max Reading Speed | 84 codes/sec |
| Sensor Type | CMOS, global shutter |
| Pixel Size | 3.45 μm × 3.45 μm |
| Sensor Size | 1/2.9" |
| Resolution | 1408 × 1024 |
| Exposure Time | 16 μs to 1 sec |
| Gain | 0 dB to 40 dB |
| Mono Color | Mono |
| Communication Protocol | SmartSDK, TCP Client, TCP Server, UDP, Serial, FTP, PROFINET, Ethernet/IP, MELSEC, ModBus |
| Data Interface | Fast Ethernet |
| Digital I/O | 17-pin M12 interface provides power supply and I/O, including non-isolated input (LineIn 0/1/2) × 3, non-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1. Device trigger via pressing button on top supported. |
| Power Supply | 24 VDC |
| Max Power Consumption | 20 W@24 VDC (light source enabled) |
| Focal Length | 14.8 mm (0.6") |
| Lens Mount | M12-mount, mechanical autofocus. |
| Light Source | Spotlight white light. Spotlight red/blue/IR, and wide-angle white/red/blue light is optional. |
| Indicator | Power indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG) |
| Dimension | 65.2 mm × 65.2 mm × 42 mm (2.6" × 2.6" × 1.7") |
| Weight | Approx. 250 g (0.6 lb.) |
| Ingress Protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 95% RH, non-condensing |
| Client Software | IDMVS |
| Certification | CE, FCC, RoHS, KC |
| Lens Cap | Transparent lens cap. Polarization lens cap is optional. |
