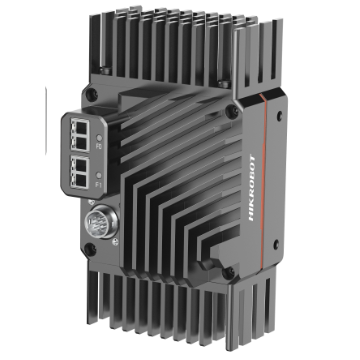

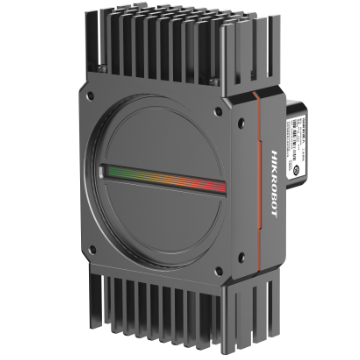

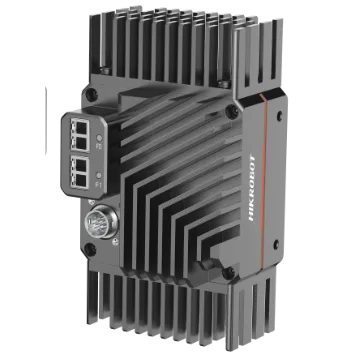

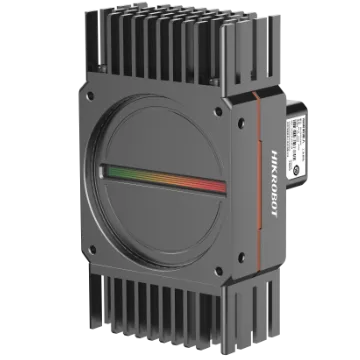

Line Scan Camera, 16k 3.5μm XoF(2 SFP+), mono
Adopts multiple ISP like Gamma, flat field correction, LUT, black level offset, etc.
- ISP functions including gamma correction, flat-field correction, LUT, and black-level offset.
- Dual XoF fibre connectors with 20 Gbps bandwidth.
- Multiple exposure and acquisition methods.
- Image modes: 1-Line and 2-TDI.
- Bi-directional configurable I/O hardware design.
- Compact design for flexible installation.
Camera Solutions
Line Scan Camera, 16k 3.5μm XoF(2 SFP+), mono is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CL162-91F2M(2.0). Key data: resolution 16384 × 2, sensor type CMOS, data interface 2LC fiber connector. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Dual XoF fibre connectors with 20 Gbps bandwidth. Multiple exposure and acquisition methods. Image modes: 1-Line and 2-TDI. Bi-directional configurable I/O hardware design. Compact design for flexible installation.
Product Highlights
ISP functions including gamma correction, flat-field correction, LUT, and black-level offset. — Dual XoF fibre connectors with 20 Gbps bandwidth. — Multiple exposure and acquisition methods. — Image modes: 1-Line and 2-TDI. — Bi-directional configurable I/O hardware design. — Compact design for flexible installation.
Specifications
| Product Model | MV-CL162-91F2M(2.0) |
|---|---|
| Type | Line Scan Camera, 16k 3.5μm XoF(2 SFP+), mono |
| Sensor Type | CMOS |
| Pixel Size | 3.5 μm × 3.5 μm |
| Resolution | 16384 × 2 |
| Dynamic Range | 62.04 dB |
| SNR | 39.22 dB |
| Gain | 1.0 × |
| Exposure Time | 3 μs to 10 ms |
| Exposure Mode | Off/Once/Continuous exposure mode, and supports trigger-width exposure |
| Pixel Format | Mono 8/10/12 |
| Mono Color | Mono |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse Image | Supports horizontal reverse image output |
| Data Interface | 2LC fiber connector |
| Digital I/O | 12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4) and single-ended/differential is supported. |
| Power Supply | 12 VDC to 24 VDC |
| Lens Mount | M72*0.75, flange back length 12 mm, applicable to F-mount via lens adapter |
| Dimension | 132 mm × 76 mm × 57.4 mm (5.2" × 3.0" × 2.3") |
| Weight | Approx. 600 g (1.3 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –20 °C to 50 °C (–4 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 5% RH to 90% RH (no condensation) |
| Client Software | MVS |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11 |
| Compatibility | XoFLink, GenlCam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 10.6 W @ 24VDC |
| Max Line Rate | 1 Link mode: 73.2 kHz (1-Line), 60 kHz (2-TDI) 2 Link mode: 120 kHz (1-Line), 60 kHz (2-TDI) |
| Trigger Mode | External trigger, internal trigger |
| External Trigger Mode | Line trigger, frame trigger, line + frame trigger |
| Image Mode | Supports 1-Line, 2-TDI |
