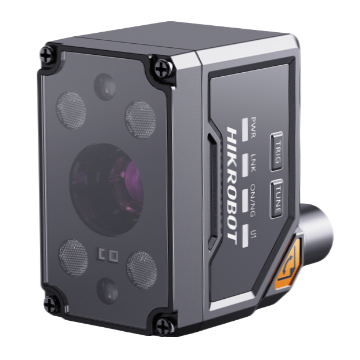

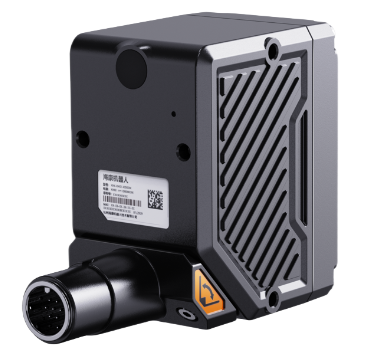

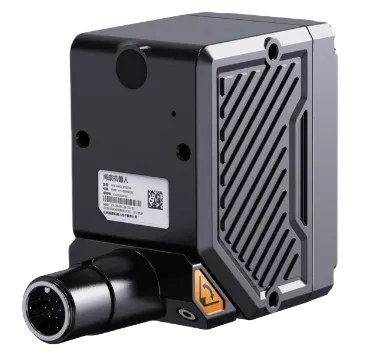

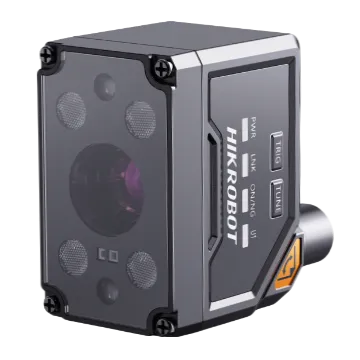

Industrial Code Reader, 2.4MP, USB, 5mm focal length, full red light transmission, autofocus

Name: Industrial Code Reader, 2.4MP, USB, 5mm focal length, full red light transmission, autofocus
Brand: HIKROBOT
SKU: MV-ID2023XM-05M-RBN-U

Adopts high-robustness algorithm to accurately identify difficult codes, such as stained code, skewed code, low-contrast code, and code on laser-marked metal surfaces.

Send inquiry

Download datasheet (PDF)

Highlights

A high-robustness algorithm reliably reads difficult codes: stained, skewed, low-contrast, and laser-marked metal surfaces.
Combines a digital WDR algorithm with 4-channel lighting control and optical accessories to sharpen code clarity.
Modular design with rotatable or detachable cable and multi-surface mounts for flexible installation.
Multi-channel isolated I/O and several industrial protocols suit diverse automation systems.
With IDMVS client software V5.0.0 or later, it adds auto-focus and one-click tuning for fast debugging.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-ID2023XM-05M-RBN-U Category: Fixed Code Reader

Industrial Code Reader, 2.4MP, USB, 5mm focal length, full red light transmission, autofocus is a fixed-mount code reader from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-ID2023XM-05M-RBN-U. Key data: max reading speed 80 codes/sec, resolution 1920 × 1280, data interface USB 2.0 (with DC power supply), ingress protection IP65. Typical use is track-and-trace on production and logistics lines. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Industrial Code Reader, 2.4MP, 5mm focal length, full red light transmission, autofocus (MV-ID2023XM-05M-RBN)

Description

Description

Combines a digital WDR algorithm with 4-channel lighting control and optical accessories to sharpen code clarity. Modular design with rotatable or detachable cable and multi-surface mounts for flexible installation. Multi-channel isolated I/O and several industrial protocols suit diverse automation systems. With IDMVS client software V5.0.0 or later, it adds auto-focus and one-click tuning for fast debugging.

Industrial Code Reader, 2.4MP, USB, 5mm focal length, full red light transmission, autofocus (MV-ID2023XM-05M-RBN-U) at a glance: 1920 × 1280 resolution, Mono sensor, 5 mm lens, up to 60 fps, USB 2.0 (with DC power supply) interface, Straight angle: 72.7 mm × 31.5 mm × 41 mm (2.9" × 1.2" × housing and weighs 118 g (0.3 lb.). The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

A high-robustness algorithm reliably reads difficult codes: stained, skewed, low-contrast, and laser-marked metal surfaces. — Combines a digital WDR algorithm with 4-channel lighting control and optical accessories to sharpen code clarity. — Modular design with rotatable or detachable cable and multi-surface mounts for flexible installation. — Multi-channel isolated I/O and several industrial protocols suit diverse automation systems. — With IDMVS client software V5.0.0 or later, it adds auto-focus and one-click tuning for fast debugging.

Specifications

Product Model	MV-ID2023XM-05M-RBN-U
Type	Industrial Code Reader, 2.4MP, USB, 5mm focal length, full red light transmission, autofocus
Symbologies	1D codes: Code 39, Code 93, Code 128 (GS1-128 included), CodaBar, EAN 8, EAN 13, UPCA, UPCE ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, and Pharmacode 2D matrix codes: QR Code (GS1-QR included), Data Matrix (GS1-DM included), MicroQR, AZTEC, HanXin Stacked codes: PDF417
Max Frame Rate	60 fps
Max Reading Speed	80 codes/sec
Sensor Type	CMOS, global shutter
Pixel Size	2.2 μm × 2.2 μm
Sensor Size	1/3.52"
Resolution	1920 × 1280
Exposure Time	36 μs to 100 ms
Gain	0 dB to 48 dB
Mono Color	Mono
Communication Protocol	SmartSDK, USB (CDC, HID)
Data Interface	USB 2.0 (with DC power supply)
Digital I/O	17-pin M12 connector provides power and I/O, including isolated input (LineIn 0/1) × 2, isolated output (LineOut 3/4) × 2, RS-232 × 1. Supports device triggering via pressing side button.
Power Supply	24 VDC
Focal Length	5 mm
Lens Mount	M12-mount, mechanical focus supported
Light Source	Red light by default. White/blue/IR/UV/two-color (red/blue) light is optional.
Aiming System	2 green LED lights
Indicator	Power indicator (PWR), network indicator (LNK), result indicator (OK/NG), user-defined indicator (U1)
Dimension	Straight angle: 72.7 mm × 31.5 mm × 41 mm (2.9" × 1.2" × 1.6") Right angle: 51.5 mm × 31.5 mm × 61 mm (2.0" × 1.2" × 2.4")
Weight	Approx. 118 g (0.3 lb.)
Ingress Protection	IP65
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Client Software	IDMVS
Certification	CE, RoHS, KC
Power Consumption	Avg.: 5 W @ 24 VDC (light source enabled) Max.: 12 W @ 24 VDC (light source enabled)
Lens Cap	Half-polarized lens cap by default. Transparent and fully-polarized caps are optional.
Vibration Resistance	Device only: 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X/Y/Z) (IEC 60068-2-6:2007\GB/T 2423.10-2019)
Shock Resistance	Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019)
