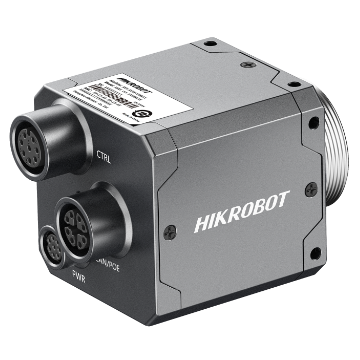

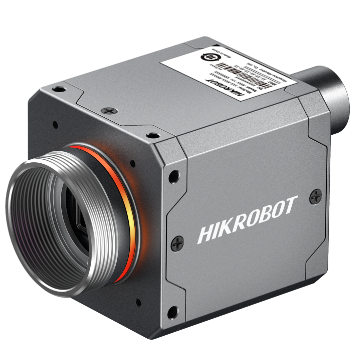

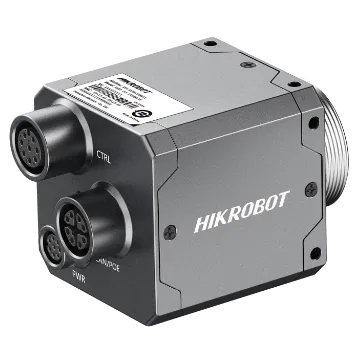

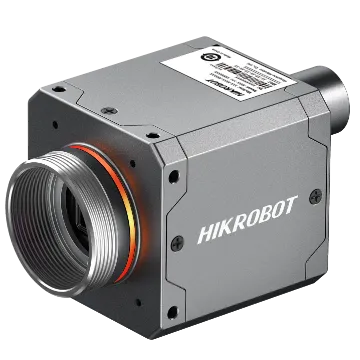

Area Scan Camera, 20MP, 3rd Gen., GigE, Color, MAX
The devices with PRO version and MAX version support waterproof connector.
- PRO and MAX versions offer a waterproof connector.
- PRO and MAX versions add precision temperature control for fast thermal stabilization.
- On PRO and MAX colour models, automatic colour correction uses multi-spectral fusion.
- The MAX version integrates lens and light source, with on-board focusing and lighting control.
- Connects via GigE, with cable runs up to 100 m and no repeater required.
- Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Camera Solutions
Area Scan Camera, 20MP, 3rd Gen., GigE, Color, MAX is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CT2CG0200/R/NN/NN. Key data: resolution 5472 × 3648, sensor type CMOS, rolling shutter. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Area Scan Camera, 12MP, 3rd Gen., GigE, Color, MAX, 16mm liquid lens, white lighting, with lens cover (MV-CT2CG0120/G/16LC/WN)
- Area Scan Camera, 12MP, 3rd Gen., GigE, Color, MAX (MV-CT2CG0120/G/NN/NN)
- Area Scan Camera, 12MP, 3rd Gen., GigE, Color, MAX (MV-CT2CG0120/R/NN/NN)
- Area Scan Camera, 20MP, 3rd Gen., GigE, Color, MAX, 16mm liquid lens, white lighting, with lens cover (MV-CT2CG0200/R/16LC/WN)
- Area Scan Camera, 3.2MP, 3rd Gen., USB3.0, Color, MAX (MV-CT2CU0032/G/NN/NN)
- Area Scan Camera, 5MP, 3rd Gen., USB3.0, Color, MAX, 16mm liquid lens, white lighting, with lens cover (MV-CT2CU0050/G/16LC/WN)
- Area Scan Camera, 5MP, 3rd Gen., USB3.0, Color, MAX (MV-CT2CU0050/G/NN/NN)
- Area Scan Camera, 8.9MP, 3rd Gen., USB3.0, Color, MAX (MV-CT2CU0089/G/NN/NN)
Description
PRO and MAX versions add precision temperature control for fast thermal stabilization. On PRO and MAX colour models, automatic colour correction uses multi-spectral fusion. The MAX version integrates lens and light source, with on-board focusing and lighting control. Connects via GigE, with cable runs up to 100 m and no repeater required. Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Product Highlights
PRO and MAX versions offer a waterproof connector. — PRO and MAX versions add precision temperature control for fast thermal stabilization. — On PRO and MAX colour models, automatic colour correction uses multi-spectral fusion. — The MAX version integrates lens and light source, with on-board focusing and lighting control. — Connects via GigE, with cable runs up to 100 m and no repeater required. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Specifications
| Product Model | MV-CT2CG0200/R/NN/NN |
|---|---|
| Type | Area Scan Camera, 20MP, 3rd Gen., GigE, Color, MAX |
| Sensor Type | CMOS, rolling shutter |
| Sensor Model | Sony IMX183 |
| Pixel Size | 2.4 μm × 2.4 μm |
| Sensor Size | 1" |
| Resolution | 5472 × 3648 |
| Max Frame Rate | 5.9 fps @ 5472 × 3648 Bayer GB 8 22.3 fps @ 5472 × 3648 Bayer GB 8 (lossless compression mode enabled) |
| Dynamic Range | 65.9 dB |
| SNR | 41.3 dB |
| Gain | 0 dB to 24 dB |
| Exposure Time | 46 μs to 2.78 sec |
| Exposure Mode | Off/Once/Continuous exposure mode, supports Trigger Width and Trigger Controlled, supports Rolling and Global Reset |
| Pixel Format | Mono 8, Bayer GB 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 |
| Mono Color | Color |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Data Interface Type | 8-pin M12 X-Code waterproof aviation connector |
| Control Interface | 8-pin M12 A-Code waterproof aviation connector |
| Digital I/O | 8-pin M8 A-Code aviation connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports PoE |
| Power Consumption | Typ. 2.3 W @ 24 VDC (fast heat balance not enabled and external device not be controlled) |
| Lens Mount | C-mount |
| Dimension | 42 mm × 42 mm × 43 mm (1.7" × 1.7" × 1.7") |
| Weight | Approx. 120 g (0.3 lb.) |
| Ingress Protection | IP67 (under proper lens and lens cap installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
