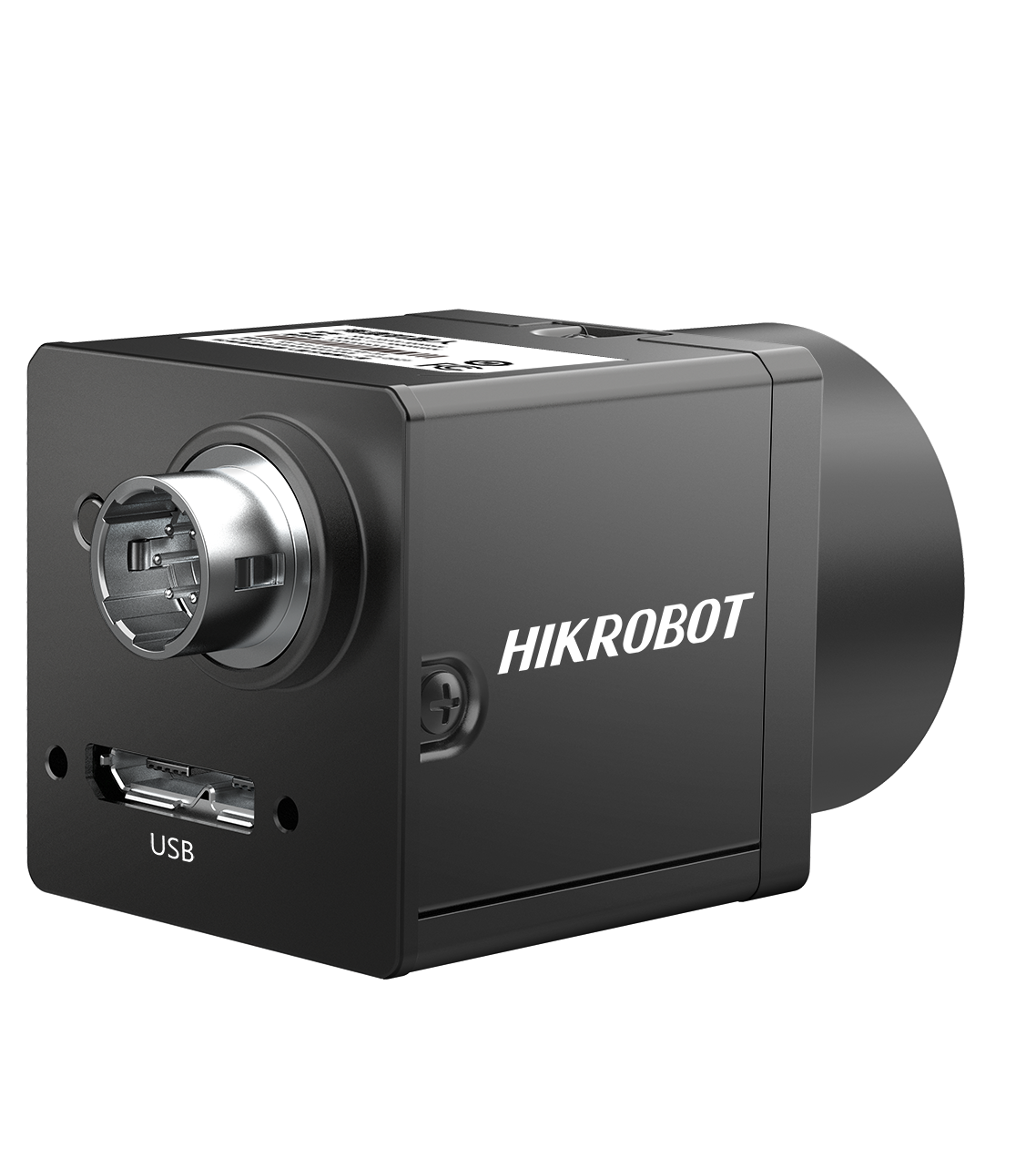

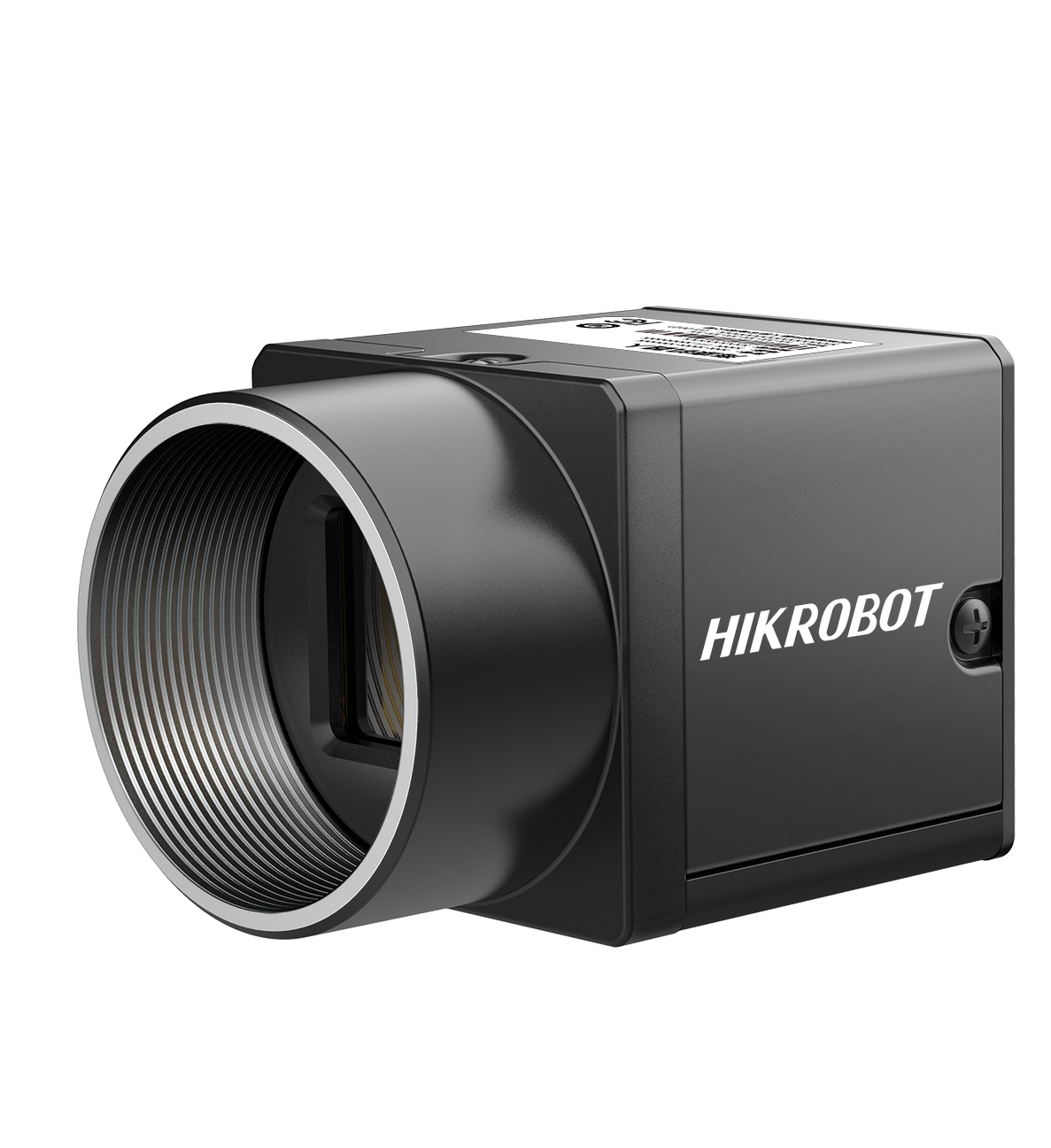

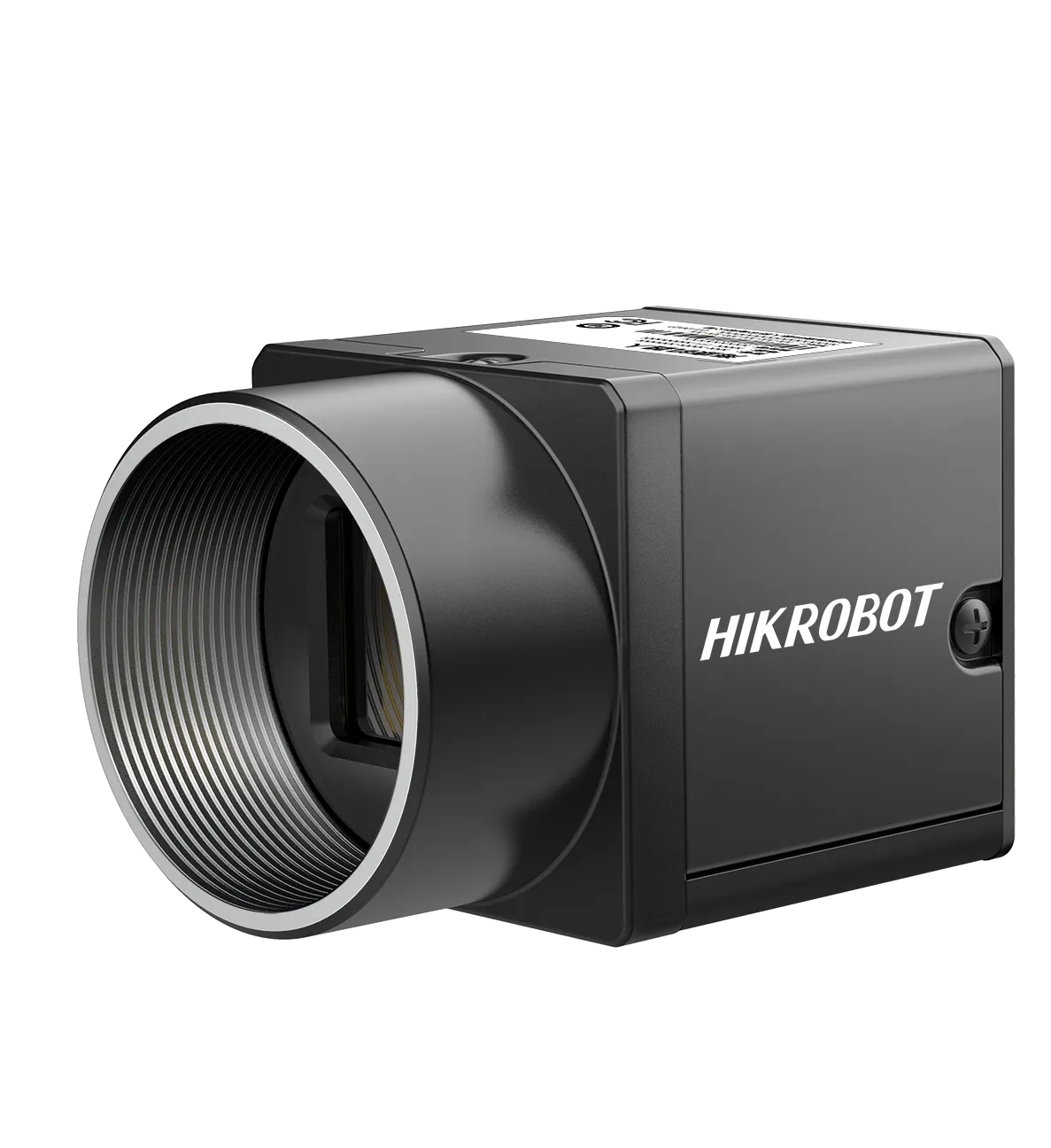

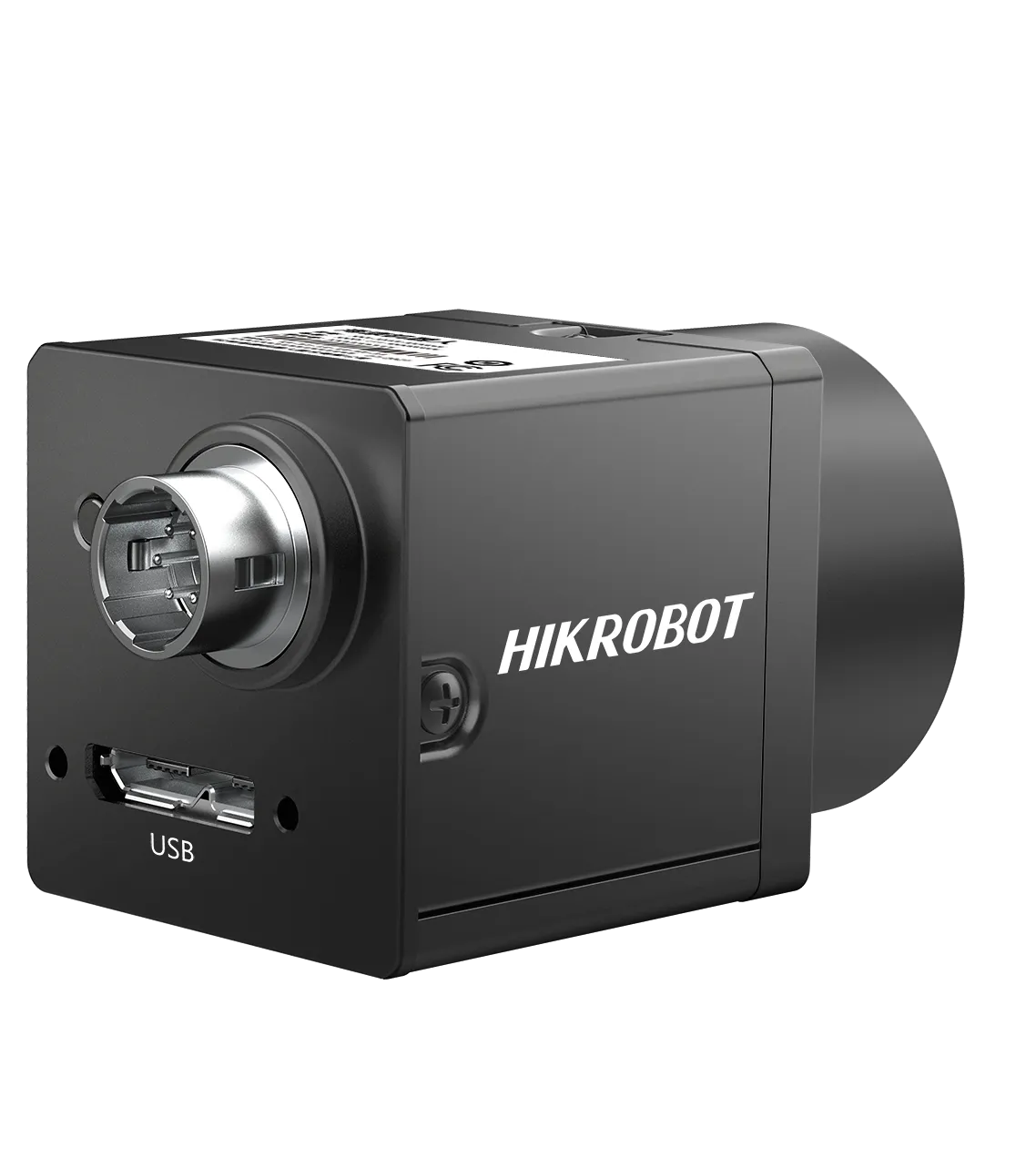

Area Scan Camera, 20MP, USB3, AR2020, mono
Adopts brand new design to reduce power consumption.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Offers auto or manual gain and exposure, plus manual LUT and gamma correction. Supports custom ROI and horizontal/vertical image flipping. Compact design fits tight spaces. Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Product Highlights
Redesigned for lower power consumption. — Offers auto or manual gain and exposure, plus manual LUT and gamma correction. — Supports custom ROI and horizontal/vertical image flipping. — Compact design fits tight spaces. — Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Specifications
| Product Model | MV-CU200-20UM |
|---|---|
| Type | Area Scan Camera, 20MP, USB3, AR2020, mono |
| Sensor Type | CMOS, rolling shutter |
| Sensor Model | AR2020 |
| Pixel Size | 1.4 μm × 1.4 μm |
| Sensor Size | 1/1.8" |
| Resolution | 5120 × 3840 |
| Max Frame Rate | 18 fps @ 5120 × 3840 Mono 8 |
| Dynamic Range | 61 dB |
| SNR | 39 dB |
| Gain | 0 dB to 48 dB |
| Exposure Time | 54 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/10 Packed/12/12 Packed |
| Mono Color | Mono |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Not support |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | USB3.0, compatible with USB2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports USB3.0 power supply |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 76 g (0.2 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client Software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 1.8 W @ 5 VDC(USB3.0 provides power supply) |
