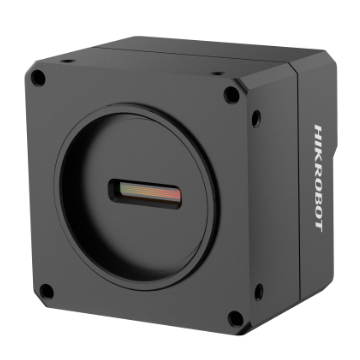

Line Scan Camera, 2k, color, GPixel, 7μm
Supports RGB true color output and image high-bandwidth function.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Supports gamma correction, FFC, LUT, and black-level adjustment. Bi-directional I/O for flexible signal configuration. Supports flat-field correction. Works with the GigE Vision V2.0 protocol and the GenICam standard.
Product Highlights
RGB true colour output with high-bandwidth image mode. — Supports gamma correction, FFC, LUT, and black-level adjustment. — Bi-directional I/O for flexible signal configuration. — Supports flat-field correction. — Works with the GigE Vision V2.0 protocol and the GenICam standard.
Specifications
| Product Model | MV-CL024-91GC |
|---|---|
| Type | Line Scan Camera, 2k, color, GPixel, 7μm |
| Sensor Type | CMOS |
| Pixel Size | 7 μm × 7 μm |
| Resolution | 2048 × 3 |
| Dynamic Range | 68 dB |
| SNR | 44.7 dB |
| Gain | 1.0 × |
| Exposure Time | 3 μs to 10 ms |
| Exposure Mode | Off/Once/Continuous exposure mode, and supports trigger-width exposure |
| Pixel Format | Mono 8, Bayer RG 8/10/12, RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal reverse image output |
| Data Interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |

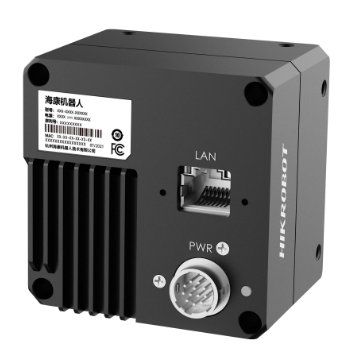

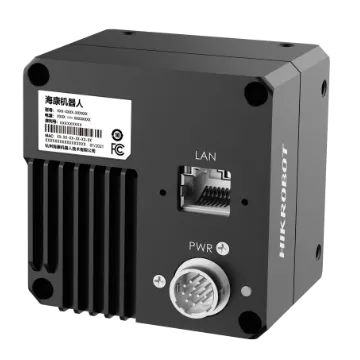

| Digital I/O | 12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4) and single-ended/differential is supported. |
| Power Supply | 12 VDC to 24 VDC, supports PoE |
| Lens Mount | M42*1.0, flange back length 12 mm, applicable to F-mount, C-mount and others via lens adapter |
| Dimension | 62 mm × 62 mm × 40.5 mm (2.4" × 2.4" × 1.6") |
| Weight | Approx. 256 g (0.6 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –20 °C to 55 °C (–4 °F to 131 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 5% RH to 90% RH (no condensation) |
| Client Software | MVS or the third-party software meeting with GigE Vision protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Mono | Color |
| Power Consumption 2 | Typ. 5.7 W @12 VDC |
| Max Line Rate | Standard mode: 58 kHz @ Mono 8/Bayer RG 8, 29 kHz @ Bayer RG 10/12, 19 kHz @ RGB 8/BGR 8 High-bandwidth mode: 70 kHz @ Bayer RG 8/Mono 8, 40 kHz @ RGB 8 |
| Trigger Mode | External trigger, internal trigger |
| External Trigger Mode | Line trigger, frame trigger, line + frame trigger |
