Area Scan Camera, 2MP, 3rd Gen., GigE, Mono, MAX

Name: Area Scan Camera, 2MP, 3rd Gen., GigE, Mono, MAX
Brand: HIKROBOT
SKU: MV-CT2MG0020/G/NN/NN

The devices with PRO version and MAX version support waterproof connector.

Send inquiry

Download datasheet (PDF)

Highlights

PRO and MAX versions offer a waterproof connector.
PRO and MAX versions add precision temperature control for fast thermal stabilization.
On PRO and MAX colour models, automatic colour correction uses multi-spectral fusion.
The MAX version integrates lens and light source, with on-board focusing and lighting control.
Connects via GigE, with cable runs up to 100 m and no repeater required.
Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-CT2MG0020/G/NN/NN Category: Area & Line Scan Cameras

Area Scan Camera, 2MP, 3rd Gen., GigE, Mono, MAX is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CT2MG0020/G/NN/NN. Key data: resolution 1624 × 1240, sensor type CMOS, global shutter. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

PRO and MAX versions add precision temperature control for fast thermal stabilization. On PRO and MAX colour models, automatic colour correction uses multi-spectral fusion. The MAX version integrates lens and light source, with on-board focusing and lighting control. Connects via GigE, with cable runs up to 100 m and no repeater required. Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.

Area Scan Camera, 2MP, 3rd Gen., GigE, Mono, MAX (MV-CT2MG0020/G/NN/NN) at a glance: 1624 × 1240 resolution, Stacked BSI sensor, 1/2.53" sensor format, 3.45 μm × 3.45 μm pixel size, up to 60.3 fps, Mono output, Gigabit Ethernet (1000 Mbit/s) interface and C-mount lens mount. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

PRO and MAX versions offer a waterproof connector. — PRO and MAX versions add precision temperature control for fast thermal stabilization. — On PRO and MAX colour models, automatic colour correction uses multi-spectral fusion. — The MAX version integrates lens and light source, with on-board focusing and lighting control. — Connects via GigE, with cable runs up to 100 m and no repeater required. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.

Specifications

Product Model	MV-CT2MG0020/G/NN/NN
Type	Area Scan Camera, 2MP, 3rd Gen., GigE, Mono, MAX
Sensor Type	CMOS, global shutter
Sensor Model	Stacked BSI
Pixel Size	3.45 μm × 3.45 μm
Sensor Size	1/2.53"
Resolution	1624 × 1240
Max Frame Rate	60.3 fps @ 1624 × 1240 Mono 8 177.3 fps @ 1624 × 1240 Mono 8 (lossless compression mode enabled)
Dynamic Range	68.5 dB
SNR	44.1 dB
Gain	0 dB to 24 dB
Exposure Time	23 μs to 10 sec
Exposure Mode	Off/Once/Continuous exposure mode, supports Trigger Width and Trigger Controlled
Pixel Format	Mono 8/10/10Packed/12/12Packed
Mono Color	Mono
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse Image	Supports horizontal and vertical reverse image output
Data Interface	Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)

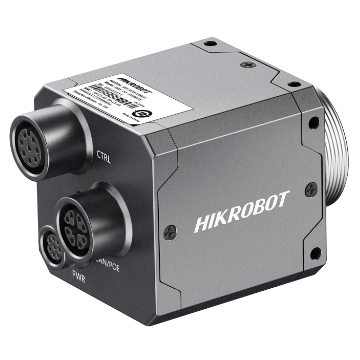

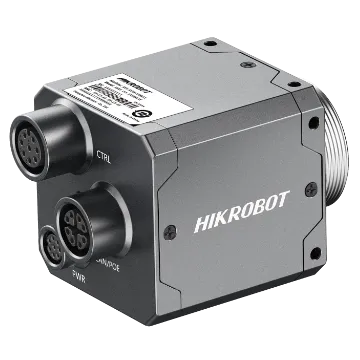

Data Interface Type	8-pin M12 X-Code waterproof aviation connector
Control Interface	8-pin M12 A-Code waterproof aviation connector
Digital I/O	8-pin M8 A-Code aviation connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power Supply	9 VDC to 24 VDC, supports PoE
Power Consumption	Typ. 1.6 W @ 24 VDC (fast heat balance not enabled and external device not be controlled)

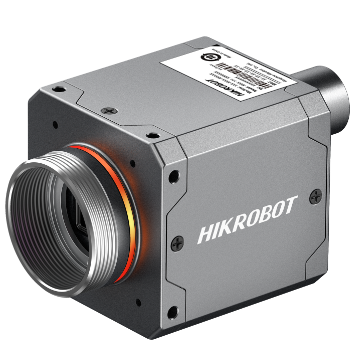

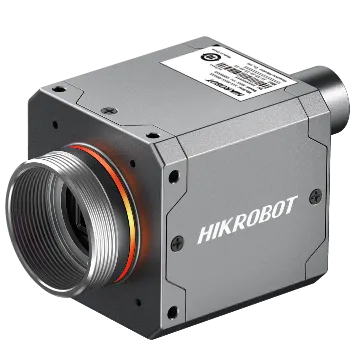

Lens Mount	C-mount
Dimension	42 mm × 42 mm × 43 mm (1.7" × 1.7" × 1.7")
Weight	Approx. 120 g (0.3 lb.)
Ingress Protection	IP67 (under proper lens and lens cap installation and wiring)
Temperature	Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Client Software	MVS or third-party software meeting with GigE Vision Protocol
Operating System	32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux
Compatibility	GigE Vision V2.0, GenICam
Certification	CE, RoHS, KC
