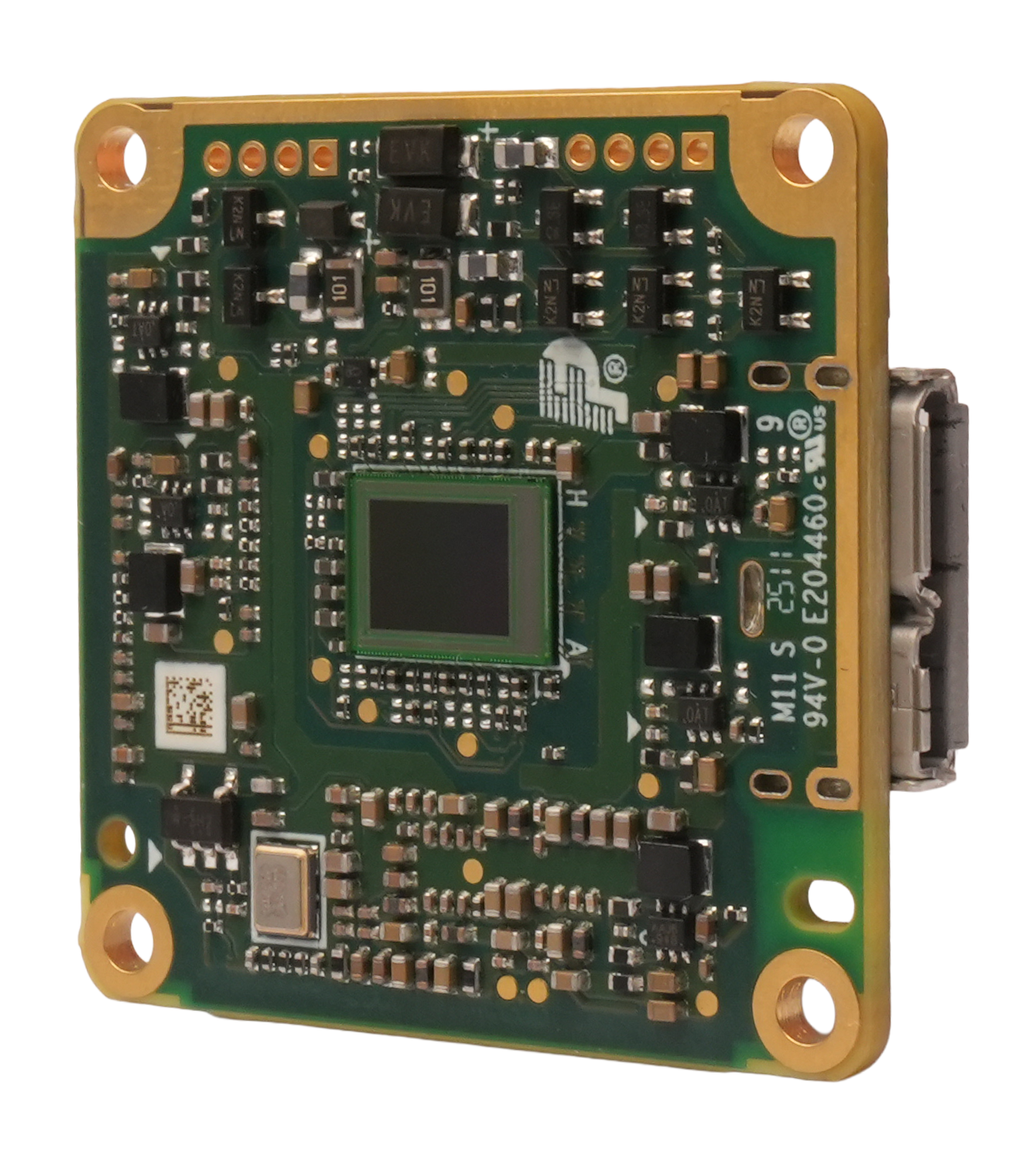

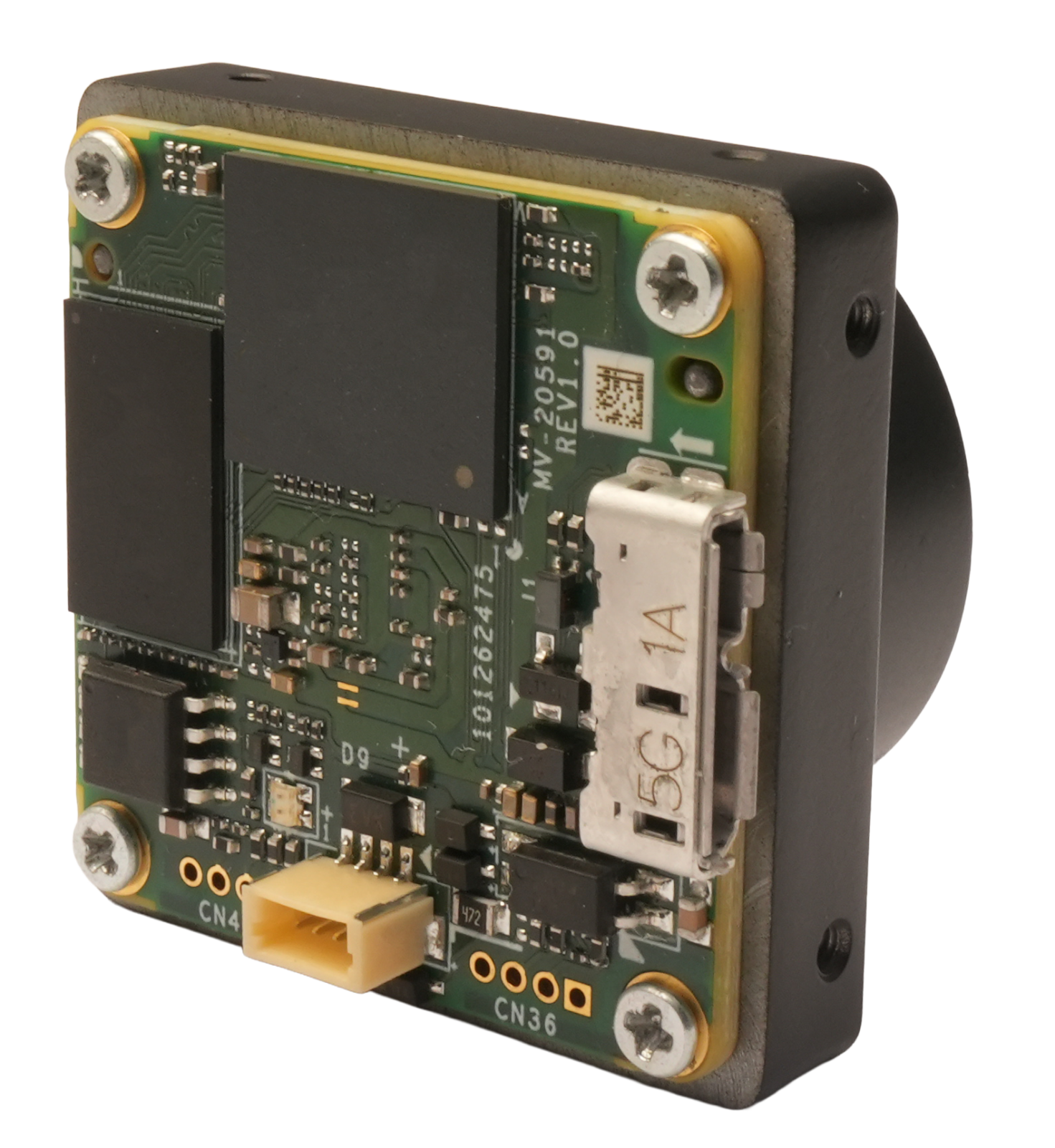

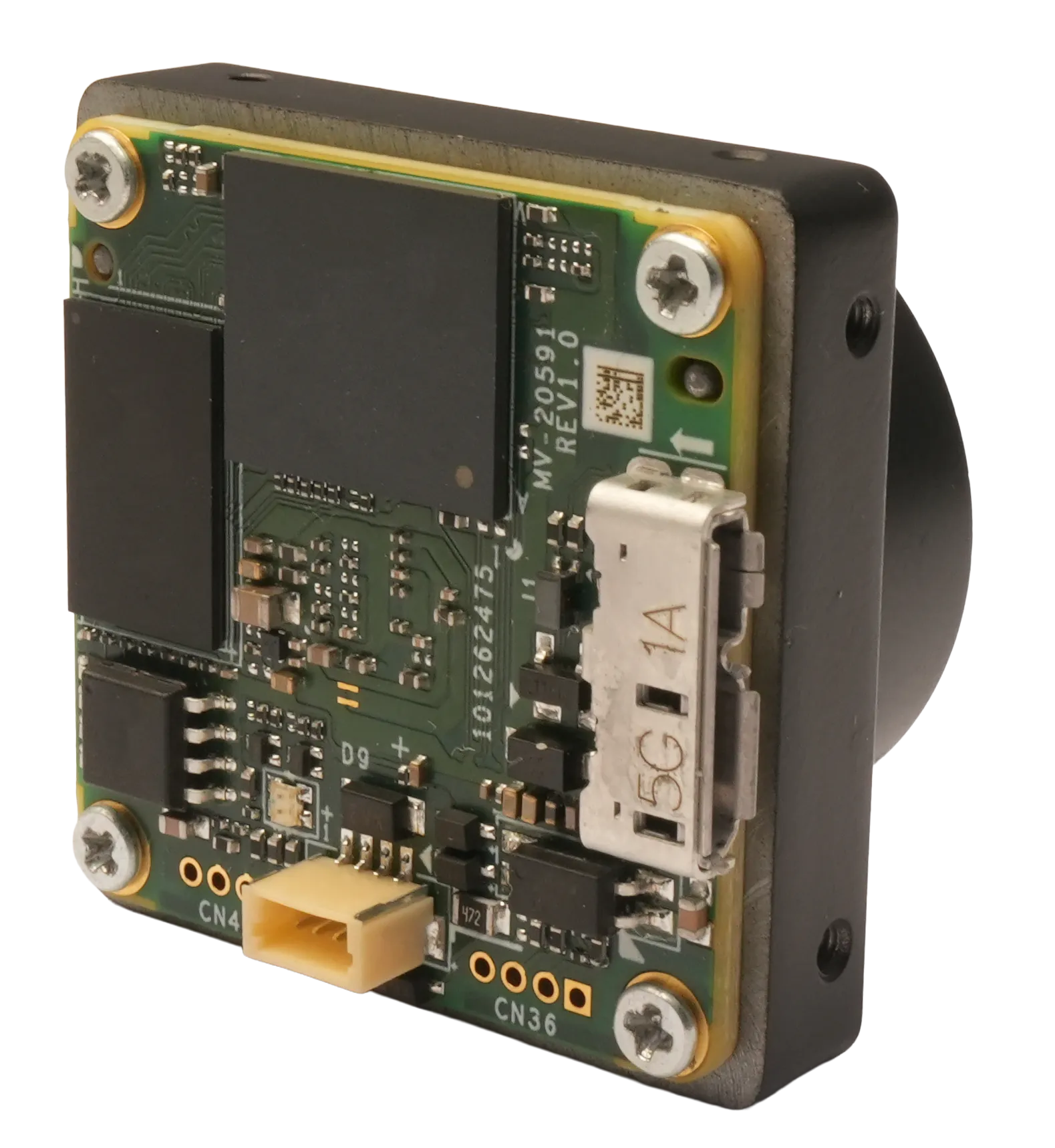

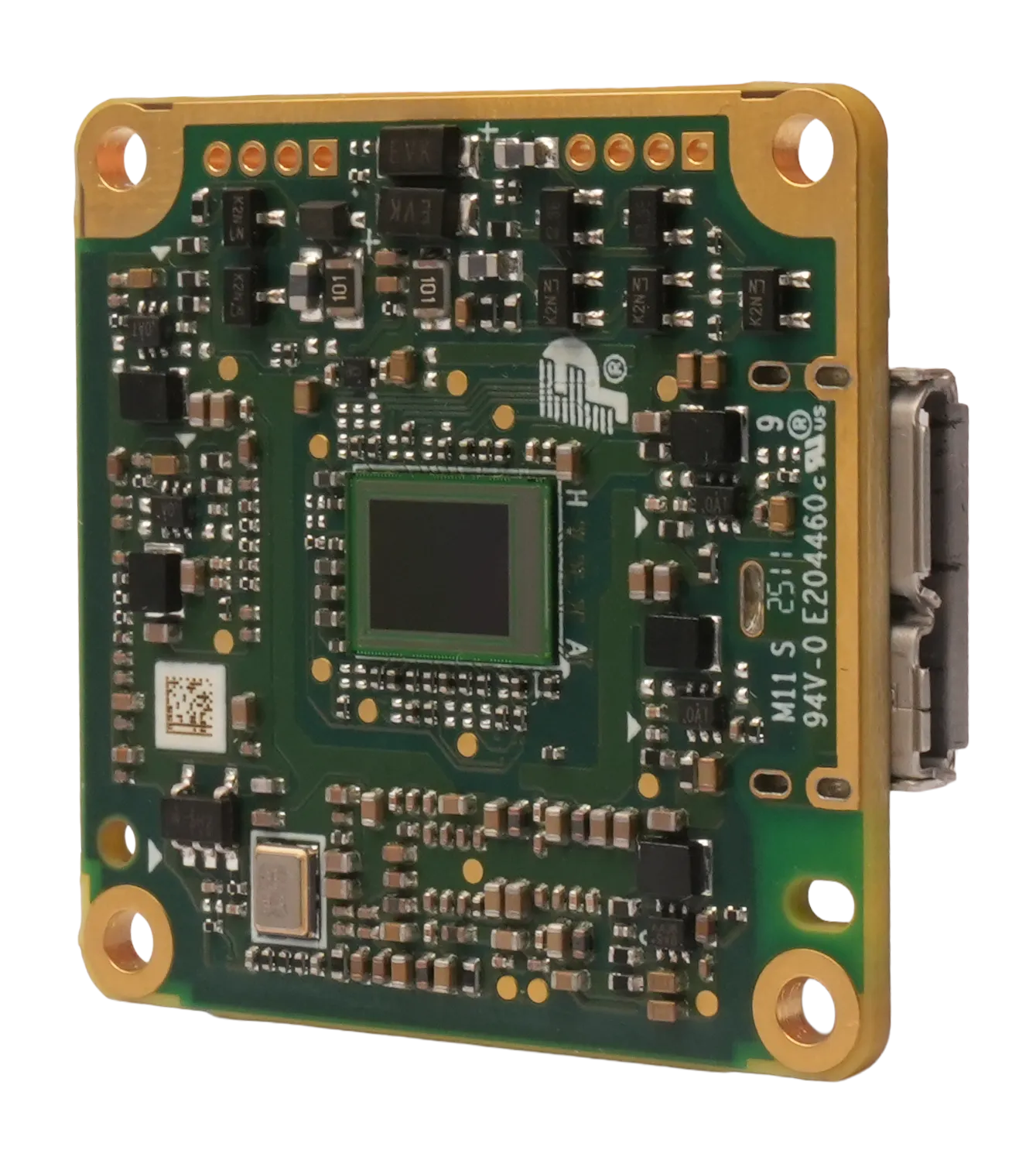

Board Level Camera, 2MP, USB3, Mono, C-mount
Supports auto and manual adjustment for gain, exposure control, white balance, LUT, etc.
- Offers auto and manual gain, exposure, white balance, and LUT.
- Image interpolation algorithm improves colour accuracy on colour models.
- Power and data via USB 3.0 interface.
- Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Camera Solutions
Board Level Camera, 2MP, USB3, Mono, C-mount is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CB020-60UM-C. Key data: resolution 1624 × 1240, sensor type CMOS, global shutter, max frame rate 179.9 fps @ 1624 × 1240 Mono 8, data interface USB 3.0, compatible with USB 2.0. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Image interpolation algorithm improves colour accuracy on colour models. Power and data via USB 3.0 interface. Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Product Highlights
Offers auto and manual gain, exposure, white balance, and LUT. — Image interpolation algorithm improves colour accuracy on colour models. — Power and data via USB 3.0 interface. — Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Specifications
| Product Model | MV-CB020-60UM-C |
|---|---|
| Type | Board Level Camera, 2MP, USB3, Mono, C-mount |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Stacked BSI |
| Pixel Size | 3.45 μm × 3.45 μm |
| Sensor Size | 1/2.53" |
| Resolution | 1624 × 1240 |
| Max Frame Rate | 179.9 fps @ 1624 × 1240 Mono 8 |
| Dynamic Range | 68.6 dB |
| SNR | 44.1 dB |
| Gain | 0 dB to 24 dB |
| Exposure Time | 23 μs to 10 sec |
| Exposure Mode | Off/ Once/ Continuous exposure mode |
| Pixel Format | Mono 8/10/10Packed/12/12Packed |
| Mono Color | Mono |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | USB 3.0, compatible with USB 2.0 |
| Digital I/O | Bi-directional non-isolated I/O × 2 (Line 2, Line 5) |
| Power Supply | USB 3.0 power supply |
| Lens Mount | C-mount |
| Weight | Approx. 30 g (0.07 lb.) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client Software | MVS or third-party software with USB3 Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenICam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 1.5 W @ 5 VDC |
| Dimension Without Lens | 35 mm × 35 mm × 8.6 mm (1.4" × 1.4" × 0.3") |
