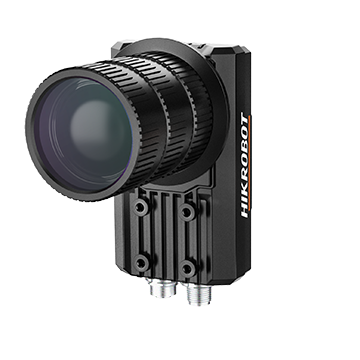

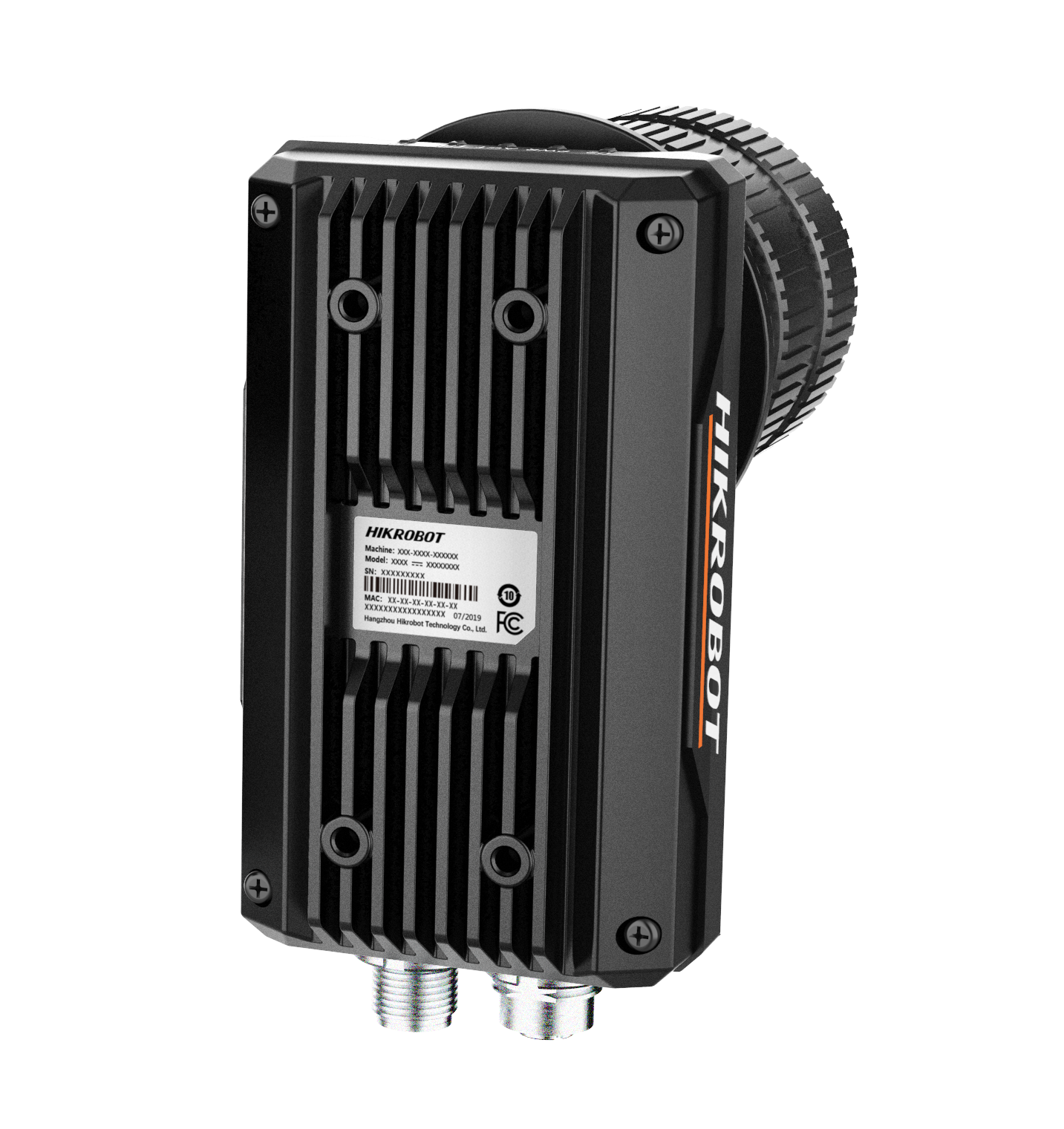

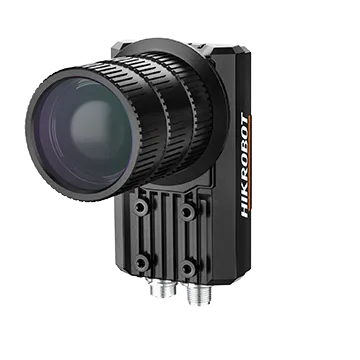

Industrial Code Reader, 3.1MP Allfunction
Adopts built-in deep learning algorithm to read codes with good robustness.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
A global-shutter CMOS sensor delivers high-quality images. A mechanical autofocus lens focuses automatically. Scores and grades print quality for codes. Controllable light source provides varied lighting. Rated IP67 against dust and water.
Product Highlights
A built-in deep-learning algorithm reads codes robustly. — A global-shutter CMOS sensor delivers high-quality images. — A mechanical autofocus lens focuses automatically. — Scores and grades print quality for codes. — Controllable light source provides varied lighting. — Rated IP67 against dust and water.
Specifications
| Product Model | MV-ID5030M-00C-NNN |
|---|---|
| Type | Industrial Code Reader, 3.1MP Allfunction |
| Symbologies | 1-dimensional codes: Code 39, Code 93 (including GS1 128), Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, Pharmacode and Industrial 25 2-dimensional codes: QR Code (including GS1 QR), Data Matrix (including GS1 DM), Micro QR, AZTEC Stack codes: PDF 417 |
| Max Frame Rate | 60 fps |
| Max Reading Speed | 90 codes/sec |
| Sensor Type | CMOS, global shutter |
| Pixel Size | 2.5 μm × 2.5 μm |
| Sensor Size | 1/2" |
| Resolution | 2048 × 1536 |
| Exposure Time | 16 μs to 1 sec |
| Gain | 1 dB to 4 dB |
| Mono Color | Mono |
| Communication Protocol | SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC, ModBus, Fins, SLMP, UDP |
| Data Interface | Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1. |
| Power Supply | 24 VDC |
| Max Power Consumption | 20W@24 VDC |
| Focal Length | / |
| Lens Mount | C-Mount |
| Light Source | No light source included. |
| Indicator | Power indicator (PWR), network indicator (LNK/ACT), and user-defined indicator (U1/U2). |
| Dimension | 109.5 mm × 64.4 mm × 109 mm |
| Weight | 约400 g |
| Ingress Protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 95% RH, non-condensing |
| Client Software | IDMVS |
| Certification | CE, RoHS, KC |
| Lens Cap | Transparent |
