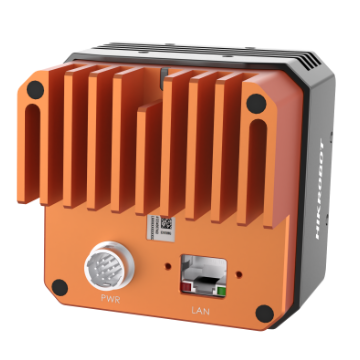

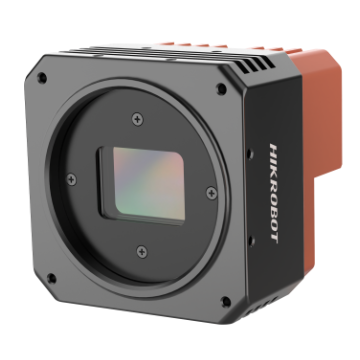

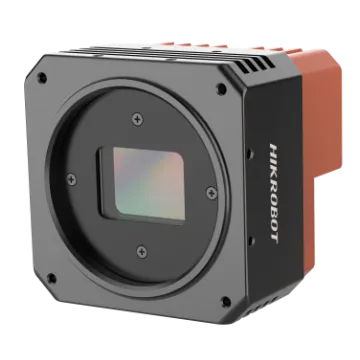

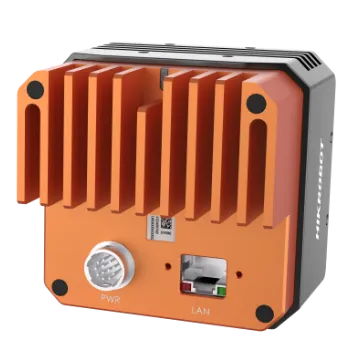

Area Scan Camera, 31MP, 10GigE, IMX342, Mono, M58-mount, fanless
31 MP resolution, and pixel size of 3.45 μm × 3.45 μm.
- 31 MP resolution with 3.45 µm × 3.45 µm pixels.
- Offers auto or manual exposure and gain, plus manual white balance, LUT, and gamma correction.
- Fanless design ensures stable high-speed image acquisition.
- Low-power-consumption design.
- Connects via 10 GigE, with cable runs up to 100 m and no repeater required.
- Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Camera Solutions
Area Scan Camera, 31MP, 10GigE, IMX342, Mono, M58-mount, fanless is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CH310-10TM-M58S-NN. Key data: resolution 6464 × 4852, sensor type CMOS, global shutter, max frame rate 17.2 fps @ 6464 × 4852 Mono 8. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Area Scan Camera, 31MP, GigE, IMX342, Color, F-mount, with fan (MV-CH310-10GC-F-NF)
- Area Scan Camera, 31MP, GigE, IMX342, Color, M58-mount, with fan (MV-CH310-10GC-M58S-NF)
- Area Scan Camera, 31MP, GigE, IMX342, Mono, F-mount, with fan (MV-CH310-10GM-F-NF)
- Area Scan Camera, 31MP, GigE, IMX342, Mono, M58-mount, with fan (MV-CH310-10GM-M58S-NF)
- Area Scan Camera, 31MP, 10GigE, IMX342, Color, M58-mount, fanless (MV-CH310-10TC-M58S-NN)
Description
Offers auto or manual exposure and gain, plus manual white balance, LUT, and gamma correction. Fanless design ensures stable high-speed image acquisition. Low-power-consumption design. Connects via 10 GigE, with cable runs up to 100 m and no repeater required. Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Product Highlights
31 MP resolution with 3.45 µm × 3.45 µm pixels. — Offers auto or manual exposure and gain, plus manual white balance, LUT, and gamma correction. — Fanless design ensures stable high-speed image acquisition. — Low-power-consumption design. — Connects via 10 GigE, with cable runs up to 100 m and no repeater required. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Specifications
| Product Model | MV-CH310-10TM-M58S-NN |
|---|---|
| Type | Area Scan Camera, 31MP, 10GigE, IMX342, Mono, M58-mount, fanless |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Sony® IMX342 |
| Pixel Size | 3.45 μm × 3.45 μm |
| Sensor Size | 22.3 mm × 16.7 mm |
| Resolution | 6464 × 4852 |
| Max Frame Rate | 17.2 fps @ 6464 × 4852 Mono 8 |
| Dynamic Range | 73 dB |
| SNR | 40 dB |
| Gain | 0 dB to 24 dB |
| Exposure Time | 4 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/10Packed/12/12Packed |
| Mono Color | Mono |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | 10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1 |
| Power Supply | 9 VDC to 24 VDC |
| Lens Mount | M58*0.75, flange back length 11.48 mm |
| Dimension | 74 mm × 74 mm × 64.4 mm (2.9" × 2.9" × 2.5") |
| Weight | Approx. 560 g (1.2 lb.) |
| Ingress Protection | IP40 ( under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 11.2 W @ 12 VDC |
