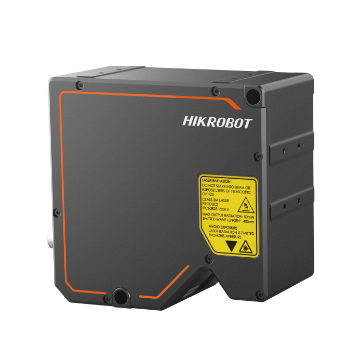

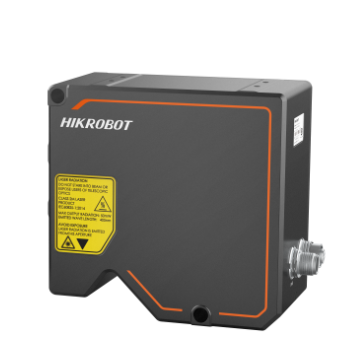

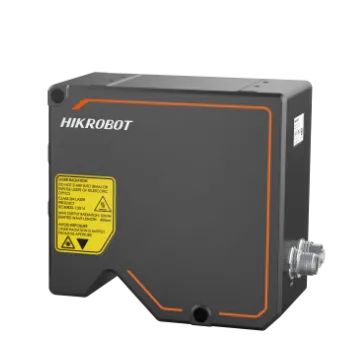

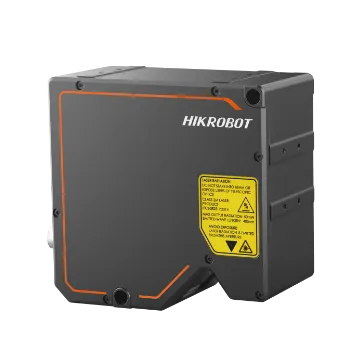

3D Laser Profile Sensor
Adopts high-speed, high-resolution, and large-pixel element image chips.
Camera Solutions
Beschreibung
FPGA hardware drives a 49 kHz scan frame rate. Custom large-iris lens with an ultra-uniform laser optical solution. Ultra-high sub-pixel algorithm delivers submicron precision. Offers multiple exposure modes for robust imaging. Multi-frame integration builds complete profiles. Multiple filter modes deliver stable data. Integrated design simplifies installation and commissioning.
Product Highlights
High-precision 3D measurement. — FPGA hardware drives a 49 kHz scan frame rate. — Custom large-iris lens with an ultra-uniform laser optical solution. — Ultra-high sub-pixel algorithm delivers submicron precision. — Offers multiple exposure modes for robust imaging. — Multi-frame integration builds complete profiles. — Multiple filter modes deliver stable data. — Integrated design simplifies installation and commissioning.
Specifications
| Product Model | MV-DP4020-01P |
|---|---|
| Type | 3D Laser Profile Sensor |
| Data Points Profile | 4080 |
| Reference Distance | 22.6 mm |
| Measurement Range Z Axis | 5.2 mm |
| Measurement Range X Axis | 13.5 mm @ near field of view 14 mm @ reference distance 14.5 mm @ far field of view |
| Resolution Z Axis | 0.41 μm to 0.58 μm |
| Repeatability Z Axis | 0.15 μm @ data that sensor tests gauge block on optical platform |
| Linearity Z Axis Of Mr | 0.01 |
| Profile Data Interval | 3.3 μm to 3.9 μm |
| Scan Frame Rate | 2.5 kHz (within max. measurement range), max. 49 kHz (in ROI mode) |
| Data Output | Profile data, depth image, brightness image |
| Trigger Mode | Software trigger, external trigger (differential encoder) |
| Laser Safety Class | Class 3B |
| Wavelength | 405 nm |
| Data Interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 12-pin M12 interface provides power and I/O, including differential input × 3 (Line 0/3/6), differential output × 1 (Line 1), and RS-232 × 1 |
| Power Consumption | Typ. 20.6 W @ 24 VDC |
| Power Supply | 24 VDC |
| Dimension | 129 mm × 125 mm × 69 mm (5.1" × 4.9" × 2.7") |
| Weight | Approx. 1330 g (2.9 lb.) |
| Ingress Protection | IP67 |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Client Software | 3DMVS (V3.1.0 and above), VM3D, or third-party software |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended) |
