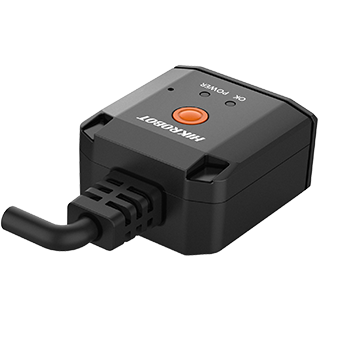

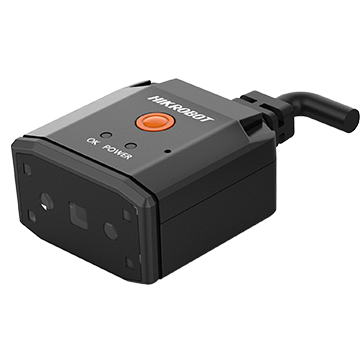

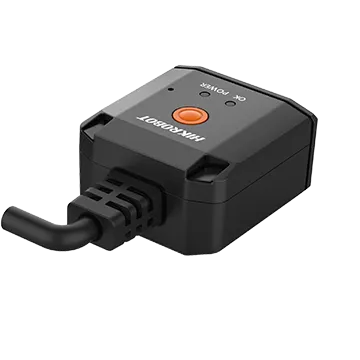

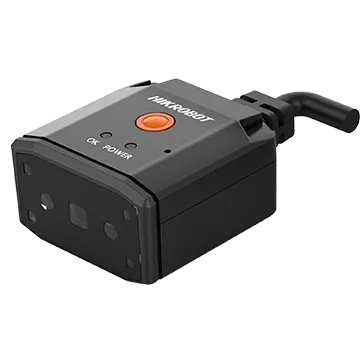

Ultra-Compact Industrial Code Reader, 3mm Near Focus length 1.3MP

Name: Ultra-Compact Industrial Code Reader, 3mm Near Focus length 1.3MP
Brand: HIKROBOT
SKU: MV-ID2013EM-03N-RBN

Built-in deep learning algorithm to read codes with good robustness.

Send inquiry

Download datasheet (PDF)

Highlights

A built-in deep-learning algorithm reads codes robustly.
Compact and small-footprint design.
Includes multiple IO interfaces and a plug-in power connector.
An LED aiming light helps line up codes.
A buzzer and indicator signal device status.
One-click parameter setup keeps operation simple.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-ID2013EM-03N-RBN Category: Fixed Code Reader

Ultra-Compact Industrial Code Reader, 3mm Near Focus length 1.3MP is a fixed-mount code reader from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-ID2013EM-03N-RBN. Key data: max reading speed 30 codes/sec, resolution 1280 × 1024, ingress protection IP54. Typical use is track-and-trace on production and logistics lines. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Ultra-Compact Industrial Code Reader, 3mm Near Focus length 1.3MP (MV-ID2013EM-03N-RBP)

Description

Description

Compact and small-footprint design. Includes multiple IO interfaces and a plug-in power connector. An LED aiming light helps line up codes. A buzzer and indicator signal device status. One-click parameter setup keeps operation simple.

Ultra-Compact Industrial Code Reader, 3mm Near Focus length 1.3MP (MV-ID2013EM-03N-RBN) at a glance: 1280 × 1024 resolution, Mono sensor, 2.45 mm lens, Code 39 (5 mil): 40 mm to 120 mm depth of field, up to 50 fps, Fast Ethernet (100 Mbit/s), RS-232, DC terminal interface, 45 mm × 43 mm × 25 mm (1.8" × 1.7" × 1.0") housing and weighs 68.5 g (0.2 lb.). The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

A built-in deep-learning algorithm reads codes robustly. — Compact and small-footprint design. — Includes multiple IO interfaces and a plug-in power connector. — An LED aiming light helps line up codes. — A buzzer and indicator signal device status. — One-click parameter setup keeps operation simple.

Specifications

Product Model	MV-ID2013EM-03N-RBN
Type	Ultra-Compact Industrial Code Reader, 3mm Near Focus length 1.3MP
Symbologies	1D codes: Code 39, Code 93, Code 128, ITF 14, ITF 25, CodaBar, EAN, UPCA, UPCE 2D codes: QR Code, Data Matrix
Max Frame Rate	50 fps
Max Reading Speed	30 codes/sec
Sensor Type	CMOS, global shutter
Pixel Size	2.7 μm × 2.7 μm
Sensor Size	1/4"
Resolution	1280 × 1024
Exposure Time	60 μs to 0.6 sec
Gain	1 dB to 28 dB
Mono Color	Mono
Communication Protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, UDP, Profinet, Ethernet/IP
Depth Of Field	Code 39 (5 mil): 40 mm to 120 mm Code 128 (10 mil): 15 mm to 250 mm EAN 13 (13 mil): 30 mm to 280 mm QR Code (10 mil): 35 mm to 155 mm QR Code (15 mil): 15 mm to 215 mm QR Code (20 mil): 15 mm to 270 mm
Data Interface	Fast Ethernet (100 Mbit/s), RS-232, DC terminal
Digital I/O	DB15 connector provides power and I/O, including non-isolated input × 2 (Line 0/1), non-isolated output × 2 (Line 2/3), RS-232 × 1. Supports device triggering via pressing button on side.
Power Supply	12 VDC to 24 VDC
Max Power Consumption	2.5 W @ 12 VDC
Focal Length	2.45 mm
Lens Mount	M5.8-mount
Ambient Illumination	0 lux to 10000 lux
Light Source	Red
Aiming System	Green LED
Indicator	Power indicator (POWER), status indicator (OK/NG)
Dimension	45 mm × 43 mm × 25 mm (1.8" × 1.7" × 1.0")
Weight	Approx. 68.5 g (0.2 lb.)
Ingress Protection	IP54
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Client Software	IDMVS
Certification	CE, RoHS, KC
