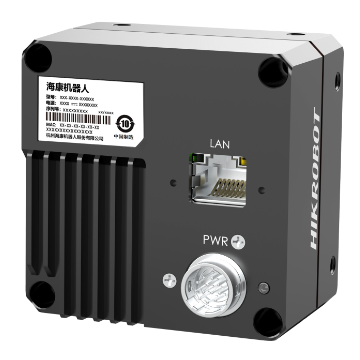

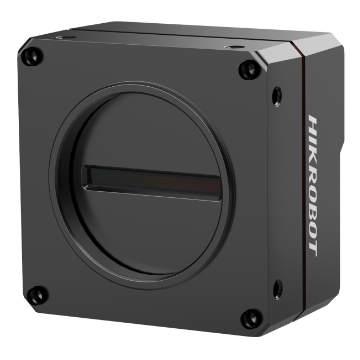

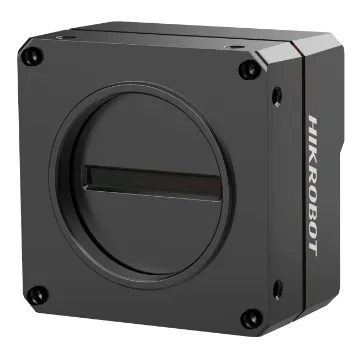

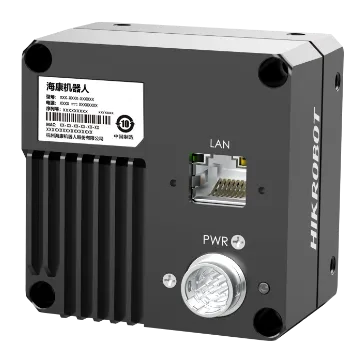

Line Scan Camera, 4K 7μm, GigE, mono, V2
Supports 1-line and TDI imaging.
- 1-Line and TDI imaging modes.
- Integrated ISP algorithms including gamma correction, flat-field correction, and gain.
- Bi-directional I/O wiring for flexible input/output configuration.
- Compact design for flexible installation.
- Works with the GigE Vision V2.0 protocol and the GenICam standard.
Camera Solutions
Line Scan Camera, 4K 7μm, GigE, mono, V2 is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CL043-A1GM-V2. Key data: resolution 4096 × 3, sensor type CMOS. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Integrated ISP algorithms including gamma correction, flat-field correction, and gain. Bi-directional I/O wiring for flexible input/output configuration. Compact design for flexible installation. Works with the GigE Vision V2.0 protocol and the GenICam standard.
Product Highlights
1-Line and TDI imaging modes. — Integrated ISP algorithms including gamma correction, flat-field correction, and gain. — Bi-directional I/O wiring for flexible input/output configuration. — Compact design for flexible installation. — Works with the GigE Vision V2.0 protocol and the GenICam standard.
Specifications
| Product Model | MV-CL043-A1GM-V2 |
|---|---|
| Type | Line Scan Camera, 4K 7μm, GigE, mono, V2 |
| Sensor Type | CMOS |
| Pixel Size | 7 μm × 7 μm |
| Resolution | 4096 × 3 |
| Dynamic Range | 66.2 dB |
| SNR | 39 dB |
| Gain | Supports 1.0 ×, 2.0 ×, 4.0 × |
| Exposure Time | 1 μs to 10 ms |
| Exposure Mode | Off/ Once/ Continuous exposure mode, and supports trigger-width exposure |
| Pixel Format | Mono 8/10/12 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse Image | Supports horizontal reverse image output |
| Data Interface | Gigabit Ethernet, compatible with Fast Ethernet |
| Digital I/O | 12-pin P10 connector provides power and I/O: configurable input/output × 4 (Line 0/1/3/4), supports single-end/differential |
| Power Supply | 12 VDC to 24 VDC |
| Lens Mount | M42*1.0, flange back length 12 mm, applicable to F-mount, C-mount and others via adapter |
| Dimension | 62 mm × 62 mm × 41 mm (2.4" × 2.4" × 1.6") |
| Weight | Approx. 280 g (0.6 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –20 °C to 50 °C (–4 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 5% RH to 90% RH (no condensation) |
| Client Software | MVS or the third-party software meeting with GigE Vision protocol |
| Operating System | 32/64-bit Windows XP/7/10, 32/64-bit Linux, and 64-bit MacOS |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Mono | Mono |
| Power Consumption 2 | Typ. 3.9 W @ 12 VDC |
| Max Line Rate | 28 kHz @ Mono 8, 14 kHz @ Mono 10/12 |
| Trigger Mode | External trigger, internal trigger |
| External Trigger Mode | Line trigger, frame trigger, line + frame trigger |
| Image Mode | Supports 1 Line / 2 TDI / 3 TDI |
