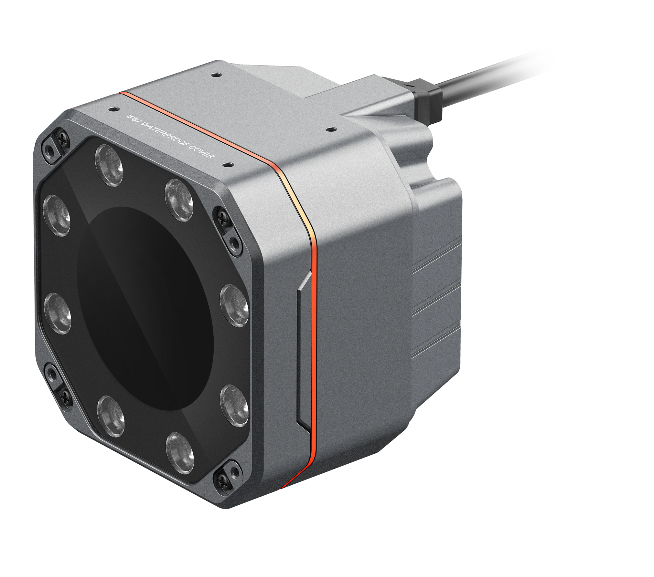

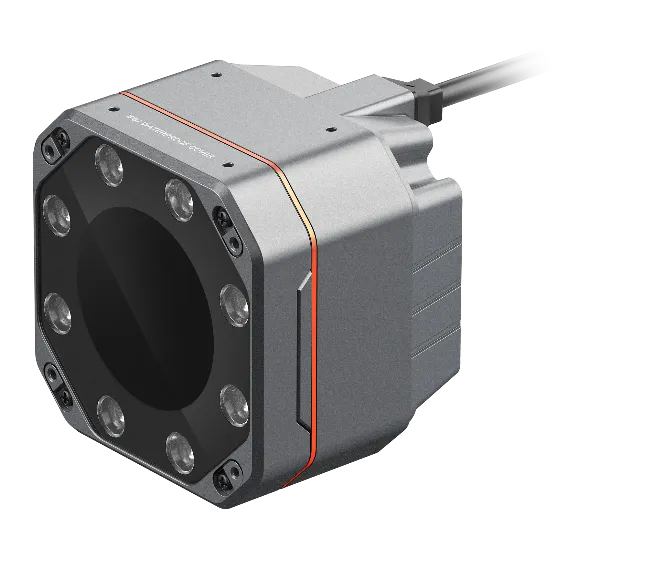

Area Scan Camera, 5MP, 3rd Gen., USB3.0, Mono, MAX, 16mm liquid lens, white lighting, with lens cover

Name: Area Scan Camera, 5MP, 3rd Gen., USB3.0, Mono, MAX, 16mm liquid lens, white lighting, with lens cover
Brand: HIKROBOT
SKU: MV-CT2MU0050/G/16LC/WN

The devices with PRO version and MAX version support waterproof connector.

Send inquiry

Download datasheet (PDF)

Highlights

PRO and MAX versions offer a waterproof connector.
PRO and MAX versions add precision temperature control for fast thermal stabilization.
On PRO and MAX colour models, automatic colour correction uses multi-spectral fusion.
The MAX version integrates lens and light source, with on-board focusing and lighting control.
Type-C interface provides higher transmission bandwidth.
Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-CT2MU0050/G/16LC/WN Category: Area & Line Scan Cameras

Area Scan Camera, 5MP, 3rd Gen., USB3.0, Mono, MAX, 16mm liquid lens, white lighting, with lens cover is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CT2MU0050/G/16LC/WN. Key data: resolution 2448 × 2048, sensor type CMOS, global shutter, data interface USB 3.0, compatible with USB 2.0. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

PRO and MAX versions add precision temperature control for fast thermal stabilization. On PRO and MAX colour models, automatic colour correction uses multi-spectral fusion. The MAX version integrates lens and light source, with on-board focusing and lighting control. Type-C interface provides higher transmission bandwidth. Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.

Area Scan Camera, 5MP, 3rd Gen., USB3.0, Mono, MAX, 16mm liquid lens, white lighting, with lens cover (MV-CT2MU0050/G/16LC/WN) at a glance: 2448 × 2048 resolution, Stacked BSI sensor, 2/3" sensor format, 3.45 μm × 3.45 μm pixel size, USB 3.0, compatible with USB 2.0 interface and C-mount lens mount. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

PRO and MAX versions offer a waterproof connector. — PRO and MAX versions add precision temperature control for fast thermal stabilization. — On PRO and MAX colour models, automatic colour correction uses multi-spectral fusion. — The MAX version integrates lens and light source, with on-board focusing and lighting control. — Type-C interface provides higher transmission bandwidth. — Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.

Specifications

Product Model	MV-CT2MU0050/G/16LC/WN
Type	Area Scan Camera, 5MP, 3rd Gen., USB3.0, Mono, MAX, 16mm liquid lens, white lighting, with lens cover
Sensor Type	CMOS, global shutter
Sensor Model	Stacked BSI
Pixel Size	3.45 μm × 3.45 μm
Sensor Size	2/3"
Resolution	2448 × 2048
Dynamic Range	74.4 dB
SNR	42.4 dB
Gain	High full well capacity: 0 dB to 12.8 dB High sensitivity: 0 dB to 24 dB
Exposure Time	High full well capacity: 30 μs to 10 sec High sensitivity: 5 μs to 10 sec
Exposure Mode	Off/Once/Continuous exposure mode, supports Trigger Width and Trigger Controlled
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse Image	Supports horizontal and vertical reverse image output
Data Interface	USB 3.0, compatible with USB 2.0
Data Interface Type	Type-C interface
Digital I/O	8-pin M8 A-Code aviation connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power Supply	9 VDC to 24 VDC, supports USB 3.0 power supply
Lens Mount	C-mount
Temperature	Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Client Software	MVS or third-party software meeting with USB3 Vision Protocol
Operating System	32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux
Compatibility	USB3 Vision, GenICam
Certification	CE, RoHS, KC
