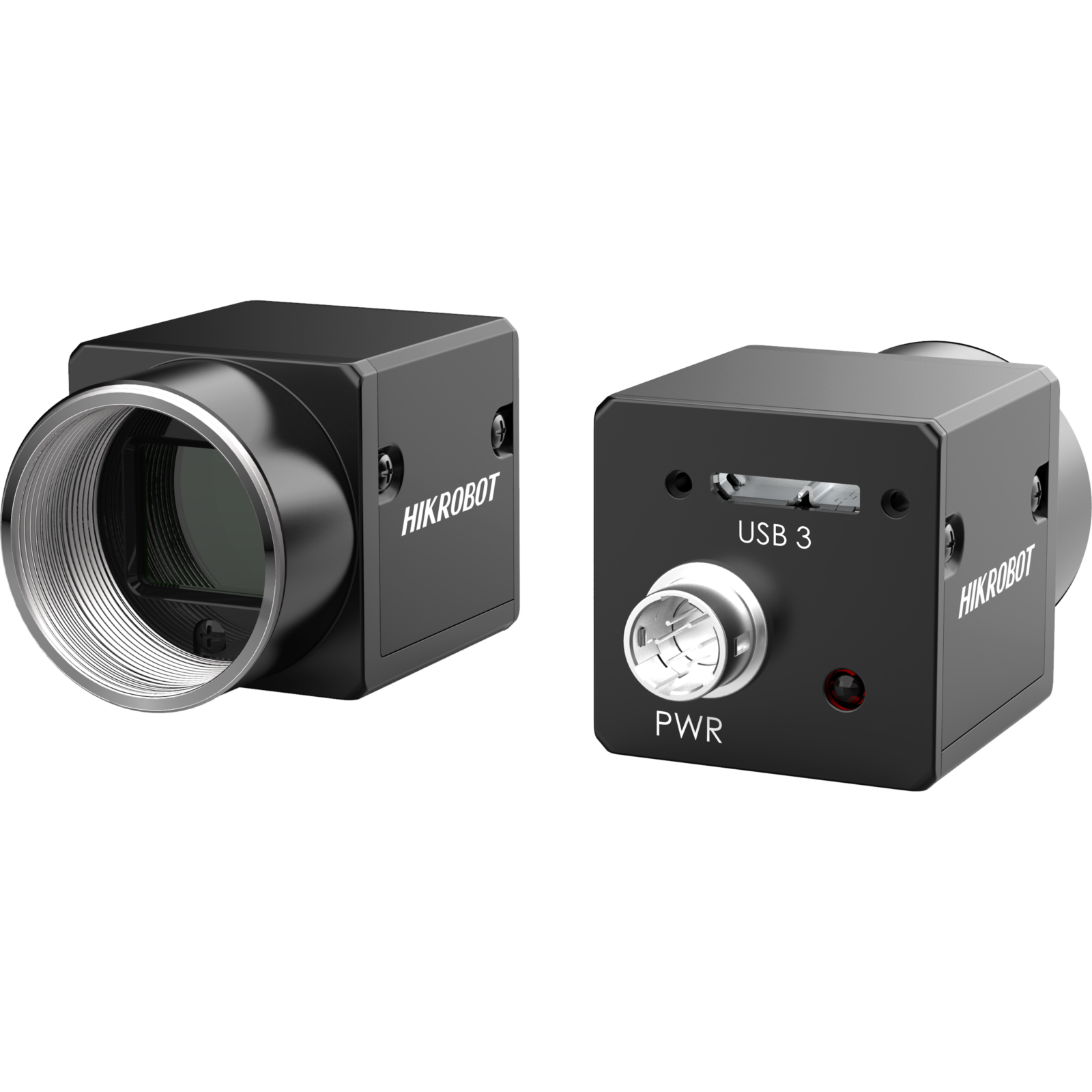

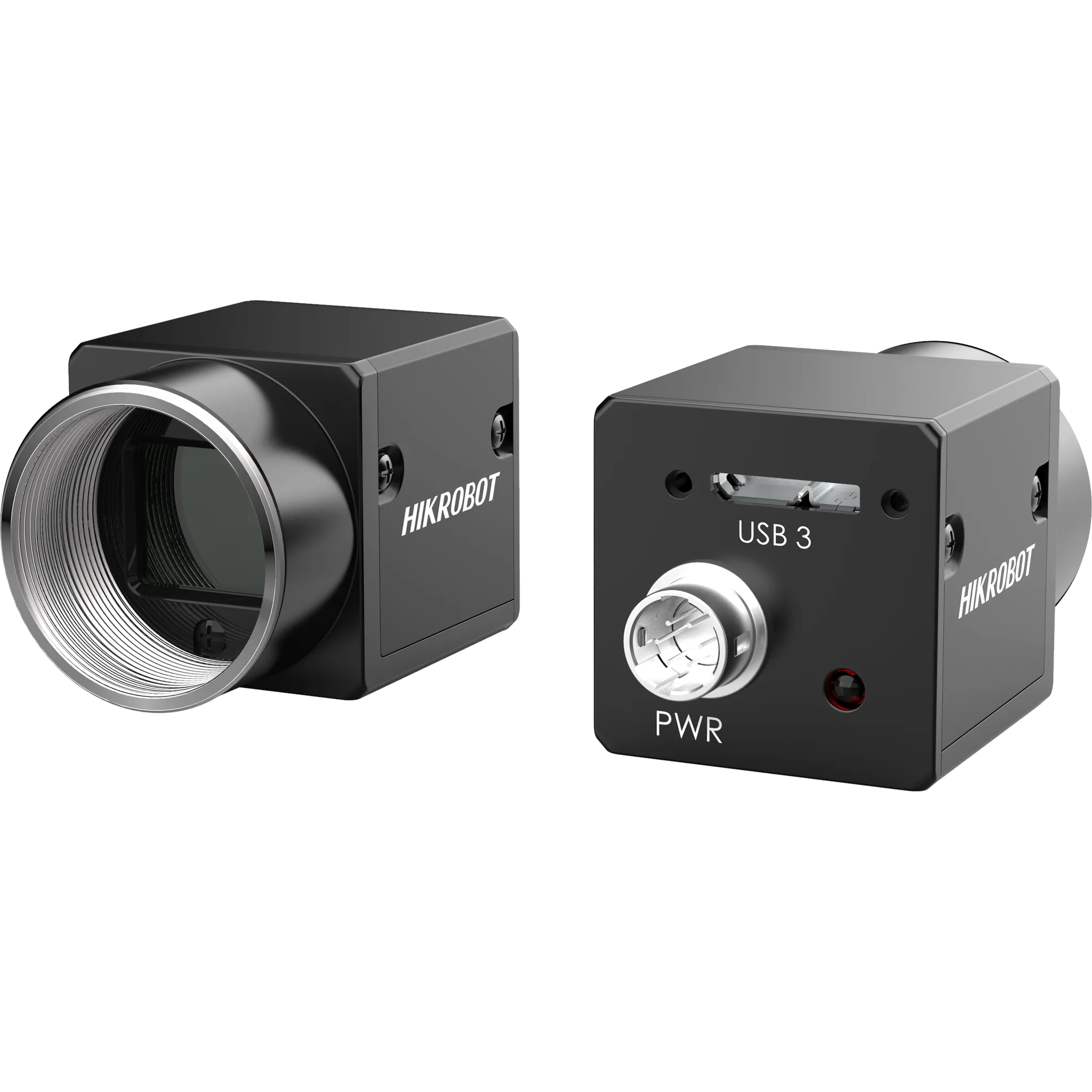

Area Scan Camera, 5MP, USB3, PYTHON5000, Mono
Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc.
- Offers auto and manual control of gain, exposure, LUT, and gamma correction.
- Supports hardware triggering, software triggering, and free-run mode.
- M2 screw holes lock down the USB3.0 cable.
- Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Camera Solutions
Area Scan Camera, 5MP, USB3, PYTHON5000, Mono is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CA050-20UM. Key data: resolution 2592 × 2048, sensor type CMOS, global shutter, max frame rate 71.8 fps @ 2592 × 2048, data interface USB3.0, compatible with USB2.0. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Supports hardware triggering, software triggering, and free-run mode. M2 screw holes lock down the USB3.0 cable. Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Product Highlights
Offers auto and manual control of gain, exposure, LUT, and gamma correction. — Supports hardware triggering, software triggering, and free-run mode. — M2 screw holes lock down the USB3.0 cable. — Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Specifications
| Product Model | MV-CA050-20UM |
|---|---|
| Type | Area Scan Camera, 5MP, USB3, PYTHON5000, Mono |
| Sensor Type | CMOS, global shutter |
| Sensor Model | PYTHON5000 |
| Pixel Size | 4.8 μm × 4.8 μm |
| Sensor Size | 1" |
| Resolution | 2592 × 2048 |
| Max Frame Rate | 71.8 fps @ 2592 × 2048 |
| Dynamic Range | 57.5 dB |
| SNR | 39.5 dB |
| Gain | 0 dB to 15 dB |
| Exposure Time | 59 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/10p/12/12p |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | USB3.0, compatible with USB2.0 |
| Digital I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2) |
| Power Supply | 12 VDC, supports USB3.0 power supply |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 56 g (0.12 lb.) |
| Ingress Protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client Software | MVS or third-party software meeting with USB3.0 Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 32/64-bit Linux |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Mono | Mono |
| Power Consumption 2 | Typ. 3.5 W @ 5 VDC (USB3.0 provides power supply) |
| Image Buffer | 128 MB |
