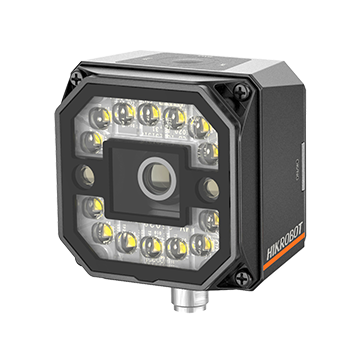

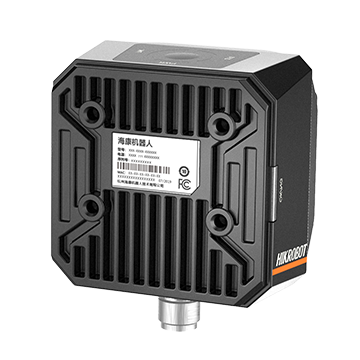

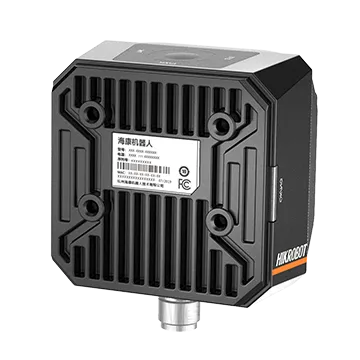

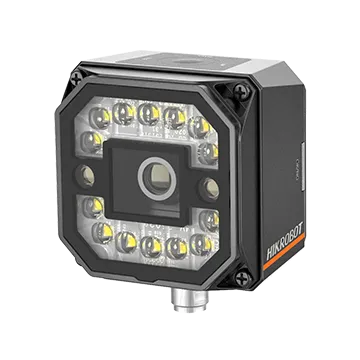

Compact Industrial Code Reader, 5MP
Adopts built-in deep learning algorithm to read codes with good robustness.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
A global-shutter CMOS sensor delivers high-quality images. Multiple I/O interfaces for input and output signals. 14 LED lamps with polarised and non-polarised modes. Two LED aiming lamps for easy installation and code alignment. On-device indicators show status and code-reading results.
Product Highlights
A built-in deep-learning algorithm reads codes robustly. — A global-shutter CMOS sensor delivers high-quality images. — Multiple I/O interfaces for input and output signals. — 14 LED lamps with polarised and non-polarised modes. — Two LED aiming lamps for easy installation and code alignment. — On-device indicators show status and code-reading results.
Specifications
| Product Model | MV-ID3050PM |
|---|---|
| Type | Compact Industrial Code Reader, 5MP |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, Pharmacode 2D codes: QR Code, Data Matrix, MicroQR, AZTEC, HanXin Stacked codes: PDF417 |
| Max Frame Rate | 50 fps |
| Max Reading Speed | 60 codes/sec |
| Sensor Type | CMOS, global shutter |
| Pixel Size | 3.4 μm × 3.4 μm |
| Sensor Size | 2/3" |
| Resolution | 2432 × 2048 |
| Exposure Time | 60 μs to 1 sec |
| Gain | 0 dB to 18 dB |
| Mono Color | Mono |
| Communication Protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC/SLMP, Ethernet/IP, ModBus, Fins, UDP |
| Data Interface | Fast Ethernet (100 Mbit/s) |
| Digital I/O | 17-pin M12 interface provides power supply and I/O, including non-isolated input (LineIn 0/1/2) × 3, non-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1. |
| Power Supply | 24 VDC |
| Focal Length | 8 mm;25 mm;12 mm;16 mm |
| Lens Mount | M12-mount, mechanical focus supported |
| Light Source | Spotlight white light. Spotlight red/blue/IR/UV light is optional. |
| Indicator | Power indicator (PWR), network indicator (LNK/ACT), status indicator (STS), result indicator (OK/NG) |
| Dimension | 65.2 mm × 65.2 mm × 47 mm (2.6" × 2.6" × 1.9") |
| Weight | Approx. 280 g (0.6 lb.) |
| Ingress Protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | IDMVS |
| Certification | CE, RoHS, KC |
| Power Consumption | Avg.: 10.6 W @ 24 VDC (light source enabled) Max.: 45 W @ 24 VDC (light source enabled) |
| Lens Cap | Half polarization lens cap by default. Polarization lens cap and transparent lens cap are optional. |
