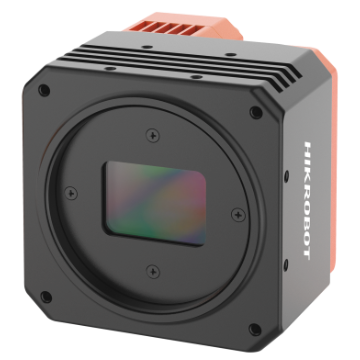

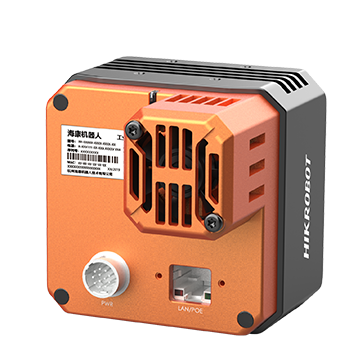

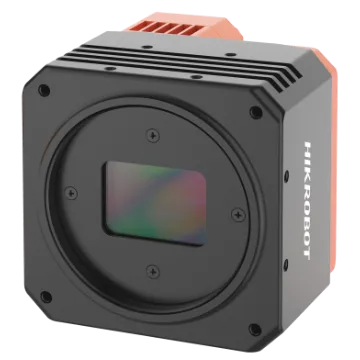

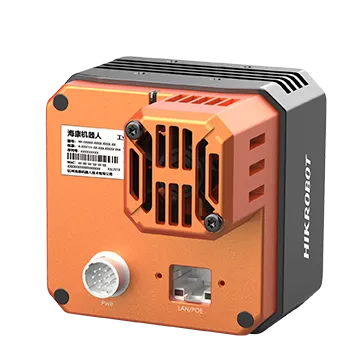

Area Scan Camera, 65MP, 10GigE, GMAX3265, Mono, M58-mount, with fan

Name: Area Scan Camera, 65MP, 10GigE, GMAX3265, Mono, M58-mount, with fan
Brand: HIKROBOT
SKU: MV-CH650-90TM-M58S-NF V2

Resolution of 9344 × 7000, and pixel size of 3.2 μm × 3.2 μm.

Send inquiry

Download datasheet (PDF)

Highlights

Resolution of 9344 × 7000 with 3.2 µm × 3.2 µm pixels.
Connects via 10 GigE, compatible with standard GigE networks.
Offers auto or manual white balance and exposure, plus manual gain, LUT, and gamma correction.
Compact body with panel mounting holes for flexible setup.
Works with the GigE Vision V2.0 protocol, the GenICam standard, and protocol-compliant third-party software.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-CH650-90TM-M58S-NF V2 Category: Area & Line Scan Cameras

Area Scan Camera, 65MP, 10GigE, GMAX3265, Mono, M58-mount, with fan is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CH650-90TM-M58S-NF V2. Key data: resolution 9344 × 7000, sensor type CMOS, global shutter, max frame rate 17.4 fps @ 9344 × 7000 Mono 8. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

Connects via 10 GigE, compatible with standard GigE networks. Offers auto or manual white balance and exposure, plus manual gain, LUT, and gamma correction. Compact body with panel mounting holes for flexible setup. Works with the GigE Vision V2.0 protocol, the GenICam standard, and protocol-compliant third-party software.

Area Scan Camera, 65MP, 10GigE, GMAX3265, Mono, M58-mount, with fan (MV-CH650-90TM-M58S-NF V2) at a glance: 9344 × 7000 resolution, Gpixel GMAX3265 sensor, 29.9 mm × 22.4 mm sensor format, 3.2 μm × 3.2 μm pixel size, up to 17.4 fps, Mono output, 10 Gigabit Ethernet (10000 Mbit/s) interface and M58*0.75, flange back length 11.48 mm lens mount. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

Resolution of 9344 × 7000 with 3.2 µm × 3.2 µm pixels. — Connects via 10 GigE, compatible with standard GigE networks. — Offers auto or manual white balance and exposure, plus manual gain, LUT, and gamma correction. — Compact body with panel mounting holes for flexible setup. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and protocol-compliant third-party software.

Specifications

Product Model	MV-CH650-90TM-M58S-NF V2
Type	Area Scan Camera, 65MP, 10GigE, GMAX3265, Mono, M58-mount, with fan
Sensor Type	CMOS, global shutter
Sensor Model	Gpixel GMAX3265
Pixel Size	3.2 μm × 3.2 μm
Sensor Size	29.9 mm × 22.4 mm
Resolution	9344 × 7000
Max Frame Rate	17.4 fps @ 9344 × 7000 Mono 8
Dynamic Range	64.4 dB
SNR	40 dB
Gain	1.25× to 6×
Exposure Time	18 μs to 10 sec
Exposure Mode	Off/Once/Continuous exposure mode
Pixel Format	Mono 8/10/10Packed/12/12Packed
Mono Color	Mono
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse Image	Supports horizontal and vertical reverse image output
Data Interface	10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s)
Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
Power Supply	9 VDC to 24 VDC
Lens Mount	M58*0.75, flange back length 11.48 mm
Dimension	M58-mount with fan: 74 mm × 74 mm × 78.8 mm (2.9" × 2.9" × 3.1")
Weight	M58-mount with fan: approx. 550 g (1.2 lb.)
Ingress Protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Client Software	MVS or third-party software meeting with GigE Vision Protocol
Operating System	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
Compatibility	GigE Vision V2.0, GenlCam
Certification	CE, RoHS, KC
Power Consumption 2	Typ. 11.8 W @ 12 VDC
