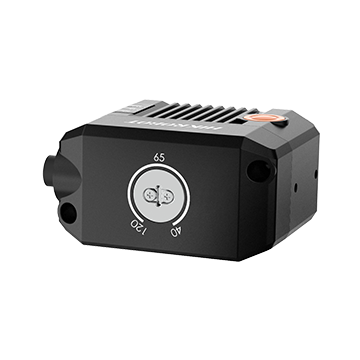

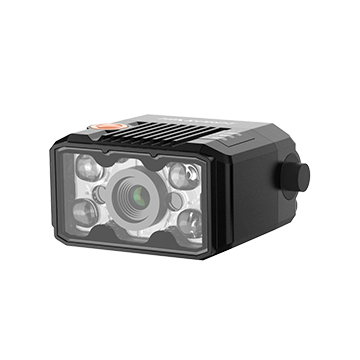

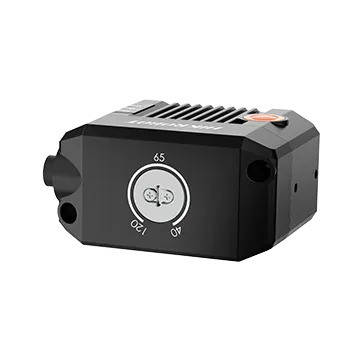

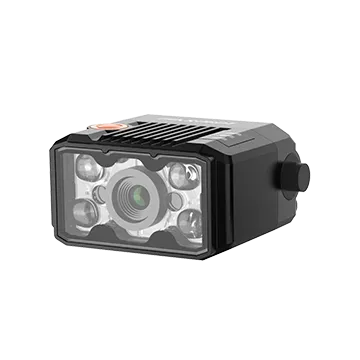

Compact Industrial Code Reader, 6mm focal length 1.6MP USB PRO Series
Compact design and small in size.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Aviation connector for single-cable wiring. An LED aiming light helps line up codes. Focus knob for manual focusing. Includes multiple IO interfaces and a plug-in power connector.
Product Highlights
Compact and small-footprint design. — Aviation connector for single-cable wiring. — An LED aiming light helps line up codes. — Focus knob for manual focusing. — Includes multiple IO interfaces and a plug-in power connector.
Specifications
| Product Model | MV-ID2016M-06S-WBN-U |
|---|---|
| Type | Compact Industrial Code Reader, 6mm focal length 1.6MP USB PRO Series |
| Symbologies | 1-dimensional codes: Code 39, Code 93, Code 128, ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE 2-dimensional codes: QR Code, Data Matrix |
| Max Frame Rate | 60 fps |
| Max Reading Speed | 68 codes/sec |
| Sensor Type | CMOS, global shutter |
| Pixel Size | 3.45 μm × 3.45 μm |
| Sensor Size | 1/2.9" |
| Resolution | 1408 × 1024 |
| Exposure Time | 16 μs to 1 sec |
| Gain | 0 dB to 15 dB |
| Communication Protocol | SmartSDK, USB |
| Data Interface | USB 3.0 |
| Digital I/O | 17-pin M12 connector provides data transmission. Device trigger via pressing button on side supported. |
| Power Supply | 5 VDC (USB 3.0 provides power supply) |
| Max Power Consumption | Approx. 4.6 W @ 5 VDC |
| Focal Length | 6.72 mm |
| Lens Mount | M10-mount, adjusting focus manually supported |
| Ambient Illumination | 0 lux to 50000 lux |
| Light Source | White |
| Aiming System | Green LED |
| Indicator | Power indicator (PWR), network indicator (LNK), and status indicator (STS) |
| Dimension | 46 mm × 38 mm × 25 mm (1.8" × 1.5" × 1.0") |
| Weight | Approx. 160 g (0.4 lb.) |
| Ingress Protection | IP65 |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | IDMVS |
| Certification | CE, RoHS, KC |
| Mono | Mono |
| Working Distance | 40 mm to 120 mm |
