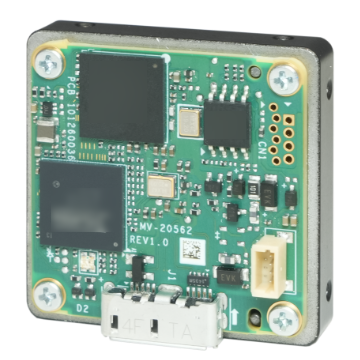

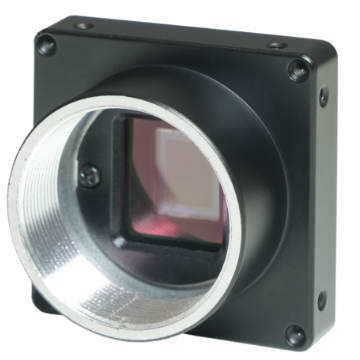

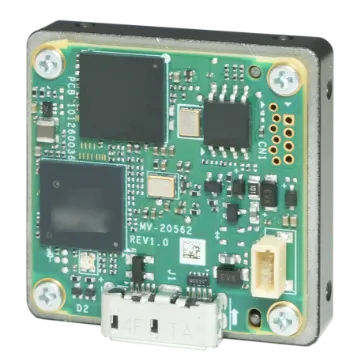

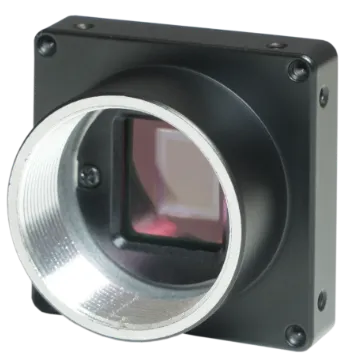

Board Level Camera, 6MP, USB3, IMX178, Color, C-mount, V4
Compact design for flexible installation.
- Compact design for flexible installation.
- Offers auto or manual gain, exposure, and white balance, plus manual gamma correction and LUT.
- HDR mode with adjustable ratio delivers high-contrast images.
- Supports hardware trigger, software trigger, and free-run modes.
- Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Camera Solutions
Board Level Camera, 6MP, USB3, IMX178, Color, C-mount, V4 is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CB060-10UC-C. Key data: resolution 3072 × 2048, sensor type CMOS, rolling shutter, max frame rate 60.9 fps @ 3072 × 2048 Bayer RG 8, data interface USB 3.0. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Offers auto or manual gain, exposure, and white balance, plus manual gamma correction and LUT. HDR mode with adjustable ratio delivers high-contrast images. Supports hardware trigger, software trigger, and free-run modes. Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Product Highlights
Compact design for flexible installation. — Offers auto or manual gain, exposure, and white balance, plus manual gamma correction and LUT. — HDR mode with adjustable ratio delivers high-contrast images. — Supports hardware trigger, software trigger, and free-run modes. — Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Specifications
| Product Model | MV-CB060-10UC-C |
|---|---|
| Type | Board Level Camera, 6MP, USB3, IMX178, Color, C-mount, V4 |
| Sensor Type | CMOS, rolling shutter |
| Sensor Model | Sony® IMX178 |
| Pixel Size | 2.4 μm × 2.4 μm |
| Sensor Size | 1/1.8" |
| Resolution | 3072 × 2048 |
| Max Frame Rate | 60.9 fps @ 3072 × 2048 Bayer RG 8 |
| Dynamic Range | 66 dB |
| SNR | 41.5 dB |
| Gain | 0 dB to 24 dB |
| Exposure Time | 8 μs to 1 sec |
| Exposure Mode | Off/ Once/ Continuous exposure mode, supports Global Reset and Trigger Rolling |
| Pixel Format | Mono 8/10/12, Bayer RG 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 |
| Mono Color | Color |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | USB 3.0 |
| Digital I/O | Bi-directional non-isolated I/O × 2 (Line 2, Line 5) |
| Power Supply | USB 3.0 power supply |
| Lens Mount | C-mount |
| Dimension | 35 mm × 35 mm × 8.6 mm (1.4" × 1.4" × 0.3") |
| Weight | Approx. 30 g (0.07 lb.) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 80% RH (no condensation) |
| Client Software | MVS or third-party software with USB3 Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenICam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 1.8 W @ 5 VDC |
