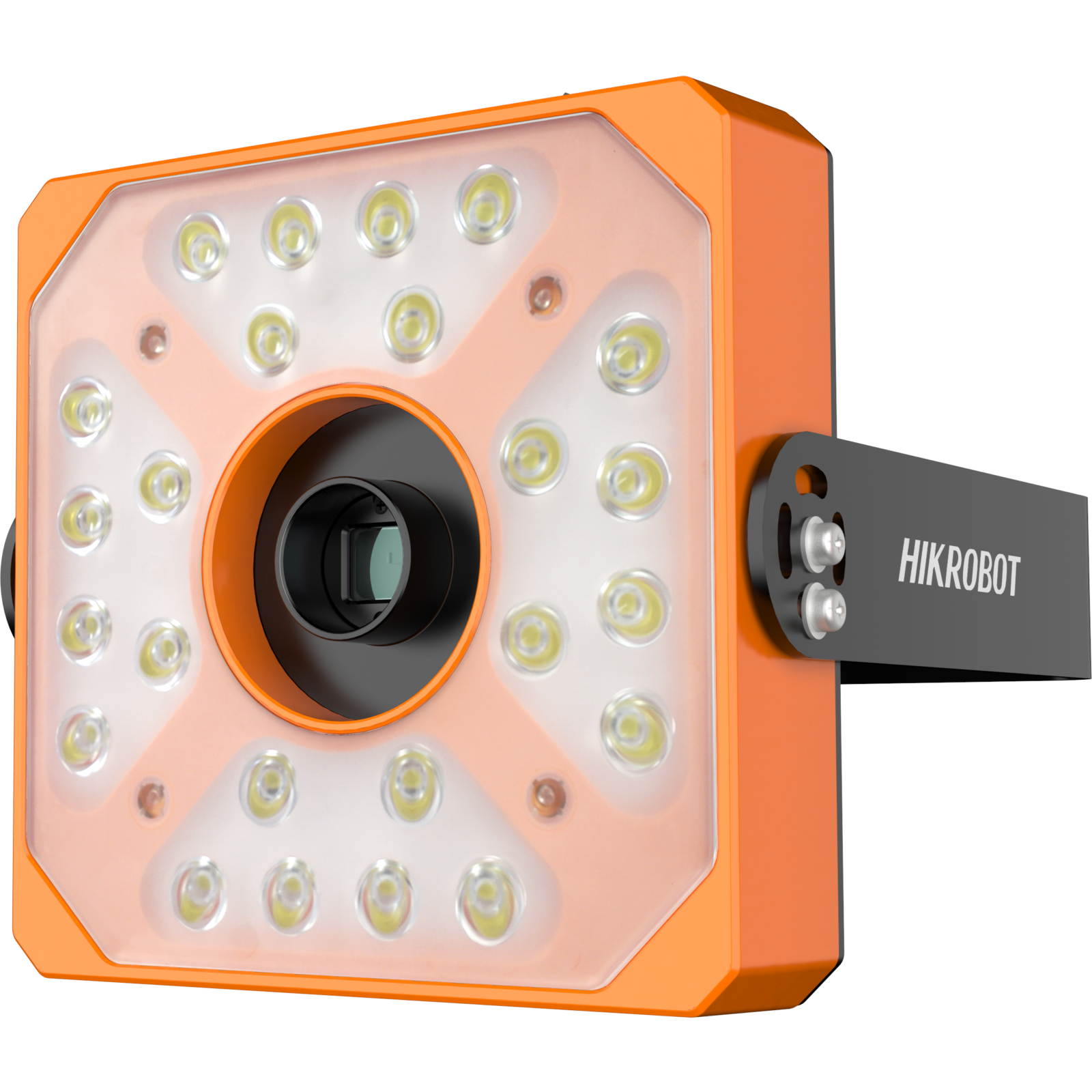

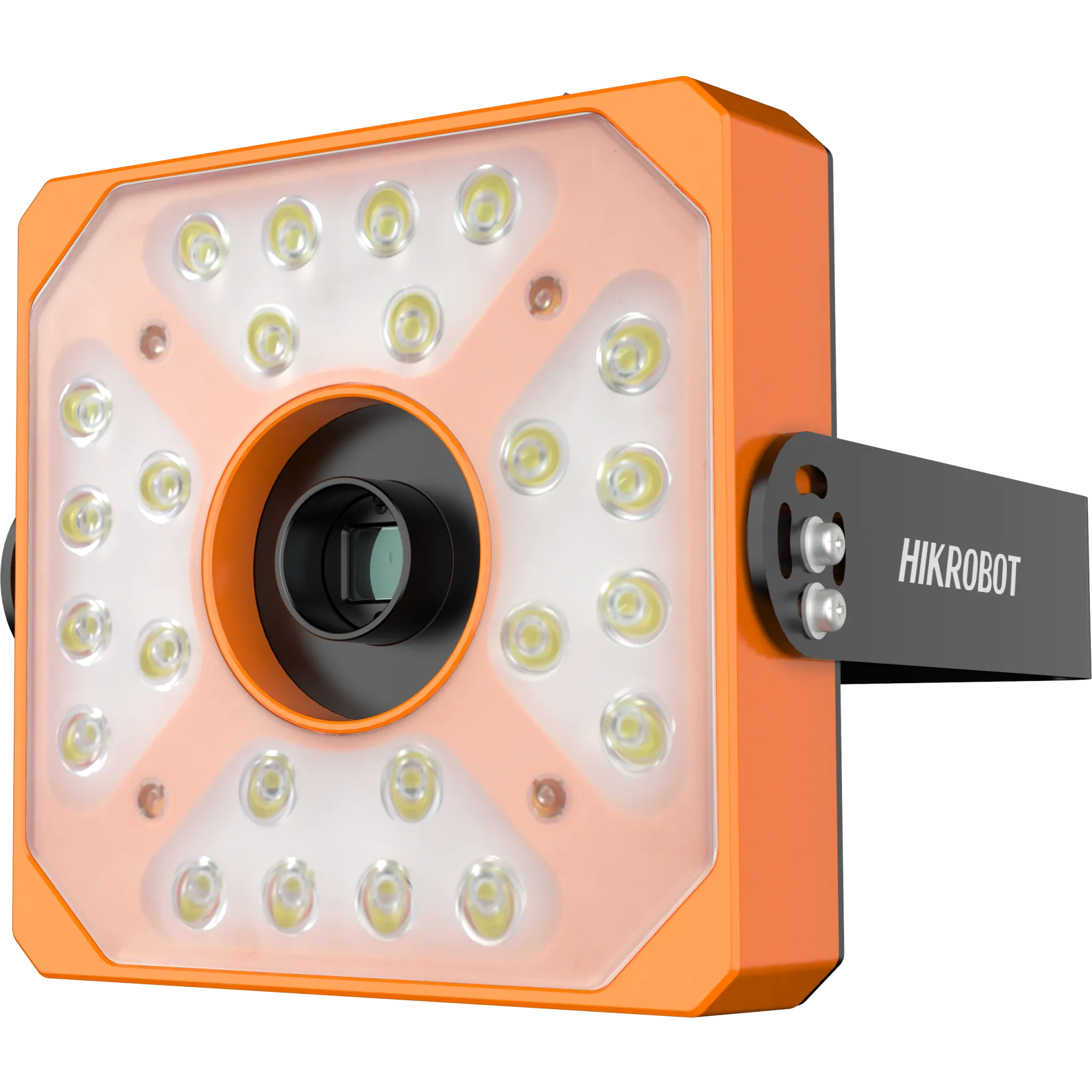

Logistic Code Reading Set, 6MP

Name: Logistic Code Reading Set, 6MP
Brand: HIKROBOT
SKU: MV-PD010003-06M-12C

Adopts code recognition technology.

Send inquiry

Download datasheet (PDF)

Highlights

Code-recognition technology.
Acquires and integrates data and images.
Local data storage with upload and tracking capability.
Integrated structure simplifies installation.
Centralised light output with high luminous efficiency.
Long service life with stable performance.
Delivers real-time data for logistics applications.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-PD010003-06M-12C Category: Fixed Code Reader

Logistic Code Reading Set, 6MP is a fixed-mount code reader from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-PD010003-06M-12C. Key data: resolution 3072 × 2048, data interface Gigabit Ethernet. Typical use is track-and-trace on production and logistics lines. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

Acquires and integrates data and images. Local data storage with upload and tracking capability. Integrated structure simplifies installation. Centralised light output with high luminous efficiency. Long service life with stable performance. Delivers real-time data for logistics applications.

Logistic Code Reading Set, 6MP (MV-PD010003-06M-12C) at a glance: 3072 × 2048 resolution, Mono sensor, 12 mm lens, 500 mm depth of field, up to 17 fps and Gigabit Ethernet interface. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

Code-recognition technology. — Acquires and integrates data and images. — Local data storage with upload and tracking capability. — Integrated structure simplifies installation. — Centralised light output with high luminous efficiency. — Long service life with stable performance. — Delivers real-time data for logistics applications.

Specifications

Product Model	MV-PD010003-06M-12C
Type	Logistic Code Reading Set, 6MP
Symbologies	1D codes: Code 39, Code 93, Code 128, Codabar, EAN 2D codes: QR Code, Data Matrix
Max Frame Rate	17 fps @3072 × 2048
Resolution	3072 × 2048
Mono Color	Mono
Depth Of Field	500 mm
Data Interface	Gigabit Ethernet
Digital I/O	6-pin connecting terminal provides power and I/O, including opto-isolated input × 1 (Line 0), and bi-directional non-isolated I/O × 1 (Line 2)
Power Supply	24 VDC
Max Power Consumption	20 W
Focal Length	12 mm
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity	20% to 80% RH, non-condensing
Client Software	MVS, Code Platform
Certification	CE, KC
Best Working Distance	900 mm
Field Of View Range	550 mm × 340 mm @10 mil
Operating System	32/64-bit Windows XP/7/10
Aperture	F2.8 to F16
Center Illuminance	5800 lux@1000 mm
Uniformity	0.53
Luminous Flux	2500 lm
Light Source Wavelength	420 nm to 730 nm
Color Temperature	5700 K
Pixel Format	Mono 8
Dimension Without Lens	164.2 mm × 149.6 mm × 159.1 mm (6.5" × 5.9" × 6.3")
Weight Without Lens	Approx. 990 g (2.2 lb.)
