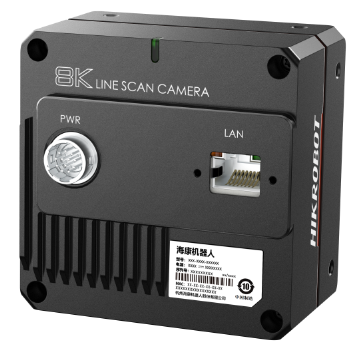

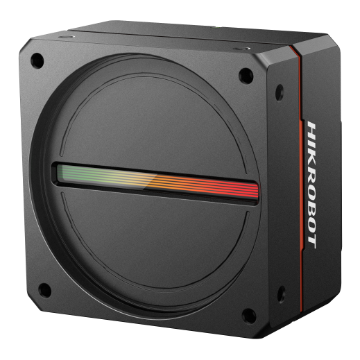

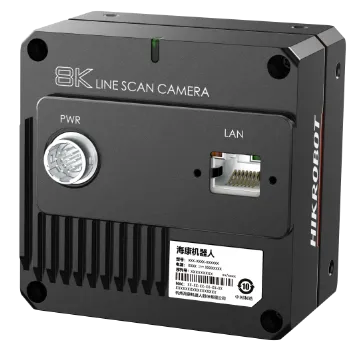

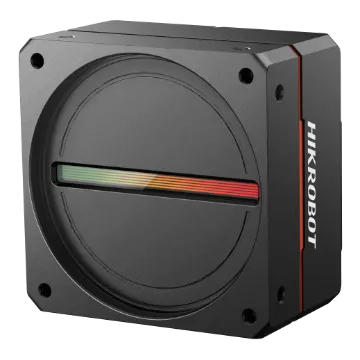

Line Scan Camera, 8K 7μm GigE, Gpixel, Color
Supports high bandwidth image compression mode, trigger-width exposure, RGB true color imaging, etc.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
ISP algorithms with manual gamma correction, flat-field correction, LUT, and black-level adjustment. Bi-directional I/O hardware design. Compact design for flexible installation. Works with the GigE Vision V2.0 protocol and the GenICam standard.
Product Highlights
High-bandwidth image compression, trigger-width exposure, and RGB true colour imaging. — ISP algorithms with manual gamma correction, flat-field correction, LUT, and black-level adjustment. — Bi-directional I/O hardware design. — Compact design for flexible installation. — Works with the GigE Vision V2.0 protocol and the GenICam standard.
Specifications
| Product Model | MV-CL083-92GC(V2.0) |
|---|---|
| Type | Line Scan Camera, 8K 7μm GigE, Gpixel, Color |
| Sensor Type | CMOS |
| Pixel Size | 7 μm × 7 μm |
| Resolution | 8192 × 3 |
| Dynamic Range | 63.4 dB |
| SNR | 40.8 dB |
| Gain | 1.0 × |
| Exposure Time | 3 μs to 10 ms |
| Exposure Mode | Off/ Once/ Continuous exposure mode, and supports trigger-width exposure |
| Pixel Format | Bayer RG 8/10, RGB 8, BGR 8, Mono 8 |
| Mono Color | Color |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse Image | Supports horizontal reverse image output |
| Data Interface | Gigabit Ethernet, compatible with Fast Ethernet |
| Digital I/O | 12-pin P10 connector provides power and I/O: configurable input or output × 4 (Line 0/1/3/4) and supports single-ended/differential |
| Power Supply | 12 VDC to 24 VDC |
| Lens Mount | M72*0.75, flange back length 12 mm, applicable to F-mount, C-mount and others via adapter |
| Dimension | 76 mm × 76 mm × 46.7 mm (3.0" × 3.0" × 1.8") |
| Weight | Approx. 400 g (0.9 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –20 °C to 50 °C (–4 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 5% Rh to 90% RH (no condesation) |
| Client Software | MVS or the third-party software meeting with GigE Vision protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 7.7 W @ 12 VDC |
| Max Line Rate | Standard mode: 14.1 kHz @ Bayer·RG·8/Mono·8, 7.7 kHz @ Bayer·RG·10, 4.7 kHz @ RGB·8/BGR·8 High-bandwidth mode: 33 kHz @ Bayer·RG·/Mono 8, 23.2 kHz @ Bayer·RG·10, 12.5 kHz @ RGB·8/BGR·8 |
| Trigger Mode | External trigger, internal trigger |
| External Trigger Mode | Line trigger, frame trigger, line + frame trigger |
| Image Mode | Supports 1-line |
