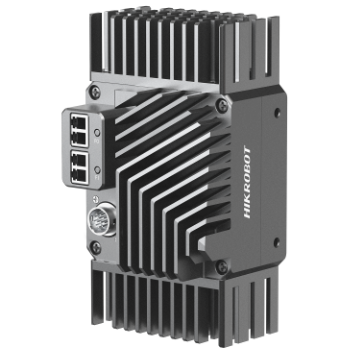

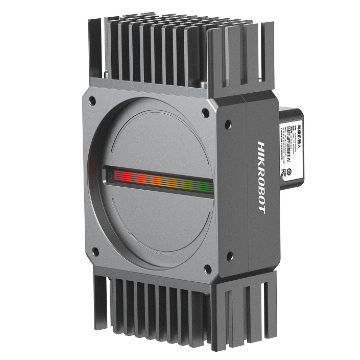

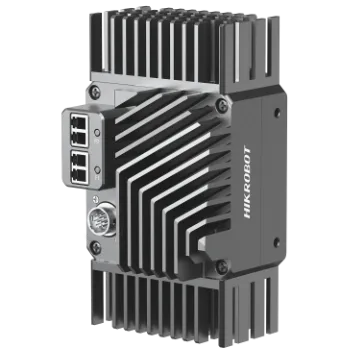

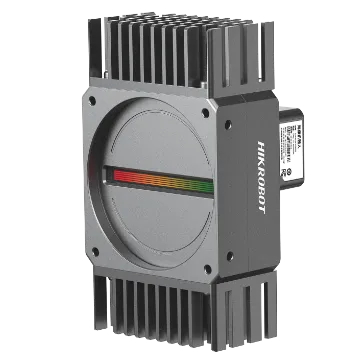

Line Scan Camera, 8K XoF(2 SPF+), mono
Adopts multiple ISP image processing technologies, such as Gamma correction, flat field correction, LUT, black level, etc.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Dual-channel XoFLink transmission with a maximum line rate of 240 kHz. Multiple exposure and acquisition modes with multi-Link topology. Compact design for flexible installation.
Product Highlights
ISP processing including gamma correction, flat-field correction, LUT, and black-level adjustment. — Dual-channel XoFLink transmission with a maximum line rate of 240 kHz. — Multiple exposure and acquisition modes with multi-Link topology. — Compact design for flexible installation.
Specifications
| Product Model | MV-CL081-B0F2M |
|---|---|
| Type | Line Scan Camera, 8K XoF(2 SPF+), mono |
| Sensor Type | CMOS |
| Pixel Size | 7 μm × 7 μm |
| Resolution | 8192 × 1 |
| Dynamic Range | 62.3 dB |
| SNR | 40 dB |
| Gain | 1.0 ×, 2.0 ×, 3.0 ×, 4.0 × |
| Exposure Time | 3 μs to 10 ms |
| Exposure Mode | Off/Once/Continuous exposure mode, and supports trigger-width exposure time |
| Pixel Format | Mono 8/10/12 |
| Mono Color | Mono |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse Image | Supports horizontal reverse image output |
| Data Interface | 2LC fiber connnector |
| Digital I/O | Not supported |
| Power Supply | 12 VDC to 24 VDC |
| Power Consumption | Typ. 14.7 W @ 12 VDC |
| Lens Mount | M72*0.75, flange back length 12 mm, applicable to F-mount via lens adapter |
| Dimension | 132 mm × 76 mm × 55.5 mm (5.2" × 3.0" × 2.2") |
| Weight | Approx. 600 g (1.3 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –20 °C to 50 °C (–4 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 5% RH to 90% RH (no condensation) |
| Client Software | MVS |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | XoFLink, GenlCam |
| Certification | CE, RoHS, KC |
| Max Line Rate | 240 kHz @ Mono 8 |
| Trigger Mode | External trigger, internal trigger |
| External Trigger Mode | Line trigger |
| Image Mode | 1-Line |
