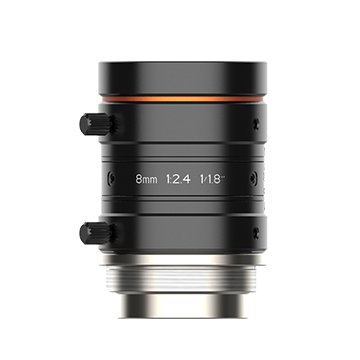

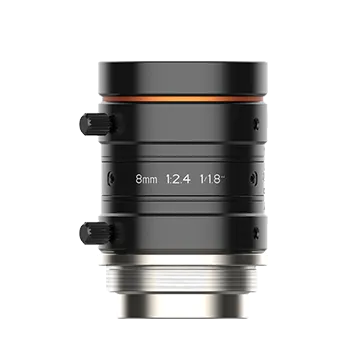

C-Mount Lens, 8mm, F2.4, 1/1.8″, 10MP
Ultra high resolution and consistency of image clarity
- Ultra-high resolution with consistent image clarity.
- Larger aperture, lower distortion, and higher relative illumination.
- Achromatic optical design improves imaging on colour cameras.
- Excellent vibration resistance, with optical-axis shift kept within one pixel.
- Stable performance at both high and low temperatures.
- Multi-layer broadband coating suits visible and near-infrared applications.
Camera Solutions
C-Mount Lens, 8mm, F2.4, 1/1.8″, 10MP is a machine vision lens from HIKROBOT, supplied in the DACH region by EQ Vision under article number MVL-HF0824M-10MP. Key data: focal length 8 mm, f number F2.4 to F16, mount C-mount, image size Ø9 mm (1/1.8"). Typical use is imaging onto industrial camera sensors. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Larger aperture, lower distortion, and higher relative illumination. Achromatic optical design improves imaging on colour cameras. Excellent vibration resistance, with optical-axis shift kept within one pixel. Stable performance at both high and low temperatures. Multi-layer broadband coating suits visible and near-infrared applications.
Product Highlights
Ultra-high resolution with consistent image clarity. — Larger aperture, lower distortion, and higher relative illumination. — Achromatic optical design improves imaging on colour cameras. — Excellent vibration resistance, with optical-axis shift kept within one pixel. — Stable performance at both high and low temperatures. — Multi-layer broadband coating suits visible and near-infrared applications.
Specifications
| Product Model | MVL-HF0824M-10MP |
|---|---|
| Type | C-Mount Lens, 8mm, F2.4, 1/1.8″, 10MP |
| Focal Length | 8 mm |
| F Number | F2.4 to F16 |
| Image Size | Ø9 mm (1/1.8") |
| Distortion | –0.67% |
| Minimum Object Distance | 0.1 m |
| Iris Control | Manual |
| Focus Control | Manual |
| Filter Thread | M27 × 0.5 |
| Mount | C-mount |
| Flange Back Length | 17.526 mm |
| Dimension | Ø29 mm × 34.8 mm (Ø1.1" x 1.4") |
| Weight | 70.9 g (0.2 lb.) |
| Temperature | –10°C to 50°C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Field Of View 2 | D(8.96 mm):58.81° H(7.38 mm):49.56° V(4.92 mm):34.04° |
