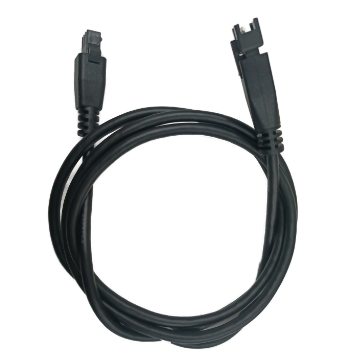

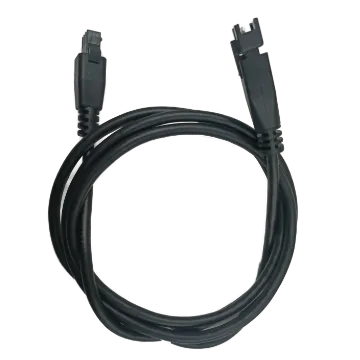

Cable,SMR-03V-B to SMR-03V-BC，highflex，5m
Provides various connector types for various machine vision light source interfaces.
Highlights
- Multiple connector types cover a variety of machine-vision light-source interfaces.
- Available in various lengths to suit different installation distances; note that voltage drop may occur beyond 30 m.
Not found what you are looking for?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Send inquiry
Camera Solutions
Cable,SMR-03V-B to SMR-03V-BC, highflex, 5m is a machine vision light from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-LW-H-005-1-S. Typical use is creating stable, repeatable illumination. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Cable,SMR-03V-B to SMR-03V-BC, highflex, 1m (MV-LW-H-001-1-S)
- MV-LW-H-003-1-19M8A
- Cable,SMR-03V-B to SMR-03V-BC, highflex, 3m (MV-LW-H-003-1-S)
- MV-LW-H-005-1-19M8A
- Cable,SMR-03V-B to SMR-03V-BC, highflex, 7m (MV-LW-H-007-1-S)
- MV-LW-H-010-1-19M8A
- Cable,SMR-03V-B to SMR-03V-BC, highflex, 10m (MV-LW-H-010-1-S)
- MV-LW-H-015-1-19M8A
Description
Available in various lengths to suit different installation distances; note that voltage drop may occur beyond 30 m.
Product Highlights
Multiple connector types cover a variety of machine-vision light-source interfaces. — Available in various lengths to suit different installation distances; note that voltage drop may occur beyond 30 m.
Specifications
| Product Model | MV-LW-H-005-1-S |
|---|---|
| Type | Cable,SMR-03V-B to SMR-03V-BC，highflex，5m |
| Temperature | Working temperature: 0 °C to 80 °C (32 °F to 176 °F) Storage temperature: –20 °C to 80 °C (–4 °F to 176 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Channel | 1 |
| Ingress Protection | IP55 (under correct installation) |
| Certification | RoHS 2.0 |
| End A Connector | SMR-03V-B |
| End B Connector | SMR-03V-BC |
| Length | 5 m |
| Cable Diameter | Φ5 mm |
| Cable Jacket | PVC |
| Min Bending Radius | 60 mm |
| Connector Durability | 2000 times |
| Flame Resistance Rating | VW-1 |
| Insulation | ≥ 20 MΩ/KM |
| Withstand Voltage Capability | 30 V |
| Cable Mechanical | 24AWG*3C |
| Max U Type Bending Cycles | 5 million times |
