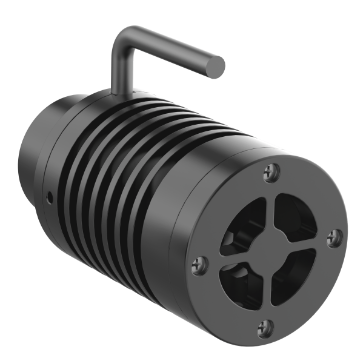

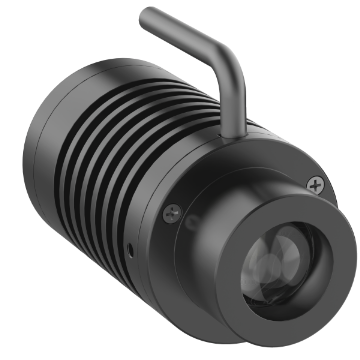

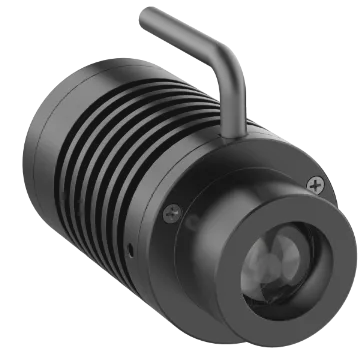

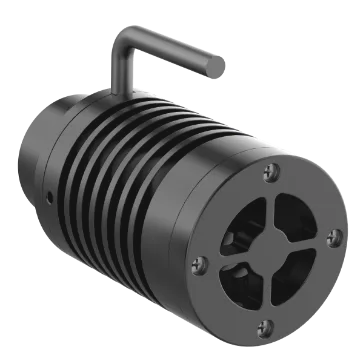

dot-lighting with high brightness，white，10W/3.1V
Provides round direct light source to achieve uniform illumination in the center area.
- Round direct-light source delivers uniform centre illumination.
- High-focus design with high brightness; centre surface illuminance greater than 2000 klux.
- Ultra-compact design for extremely narrow installation spaces.
Camera Solutions
dot-lighting with high brightness, white, 10W/3.1V is a machine vision light from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-LDFM-H-20-10-W. Key data: color White, power 9 W. Typical use is creating stable, repeatable illumination. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
High-focus design with high brightness; centre surface illuminance greater than 2000 klux. Ultra-compact design for extremely narrow installation spaces.
Product Highlights
Round direct-light source delivers uniform centre illumination. — High-focus design with high brightness; centre surface illuminance greater than 2000 klux. — Ultra-compact design for extremely narrow installation spaces.
Specifications
| Product Model | MV-LDFM-H-20-10-W |
|---|---|
| Type | dot-lighting with high brightness，white，10W/3.1V |
| Color | White |
| Center Illuminance | > 400K lux@WD=100 mm |
| Best Working Distance | 50 ~ 500 mm |
| Wavelength | / |
| Color Temperature | 6000 ~ 7000K |
| Power | 9 W |
| Connector Type | 12M-5A |
| Dimension | 75.3 mm × Ø40 mm |
| Weight | 0.1 kg |
| Cable Length | 1 m |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 80°C (–4 °F to 176 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Safety Class | RG2 |
| Safety Distance | 5.40 m |
| Optical Outlet Diameter | Ø18.5 mm |
