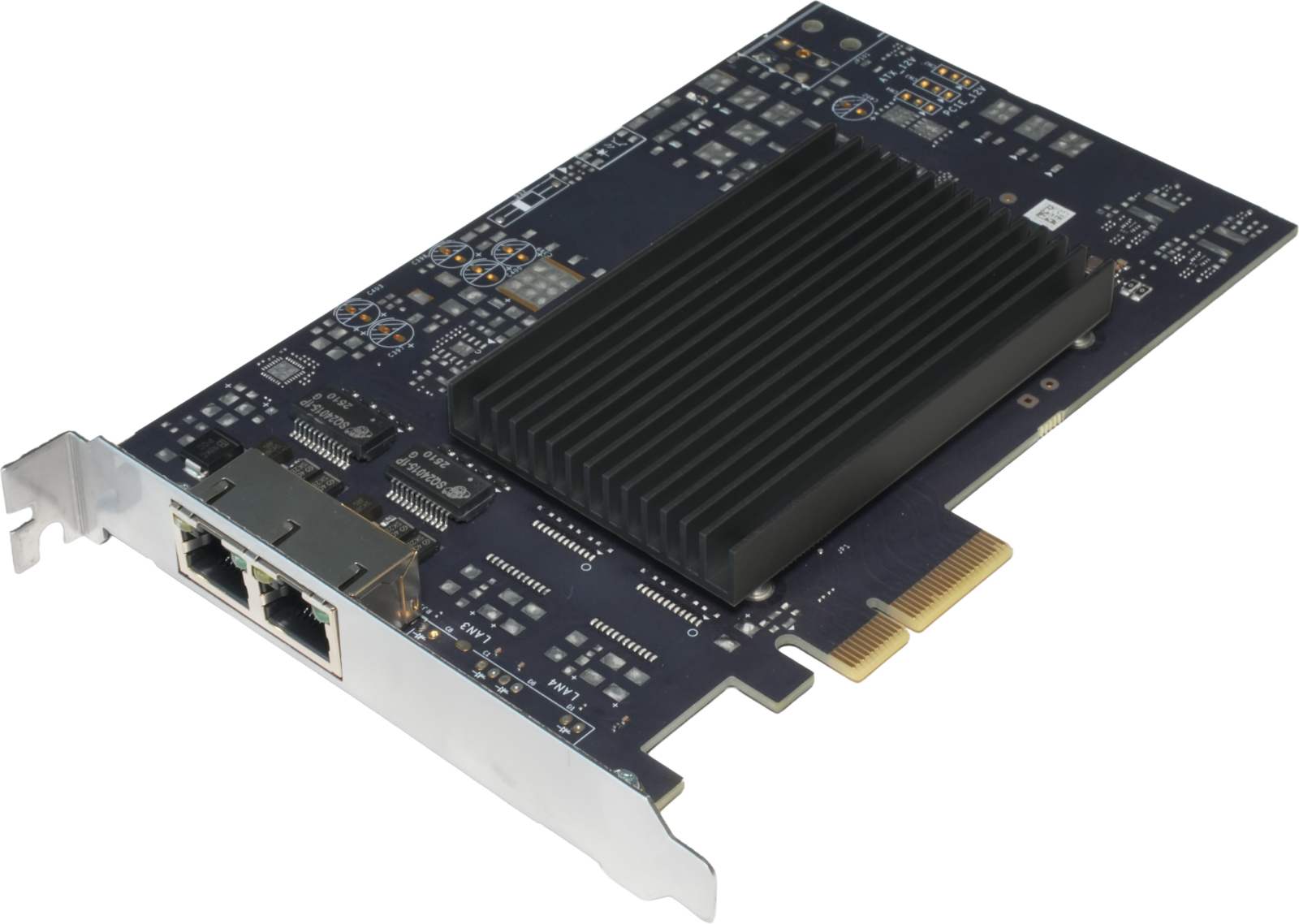

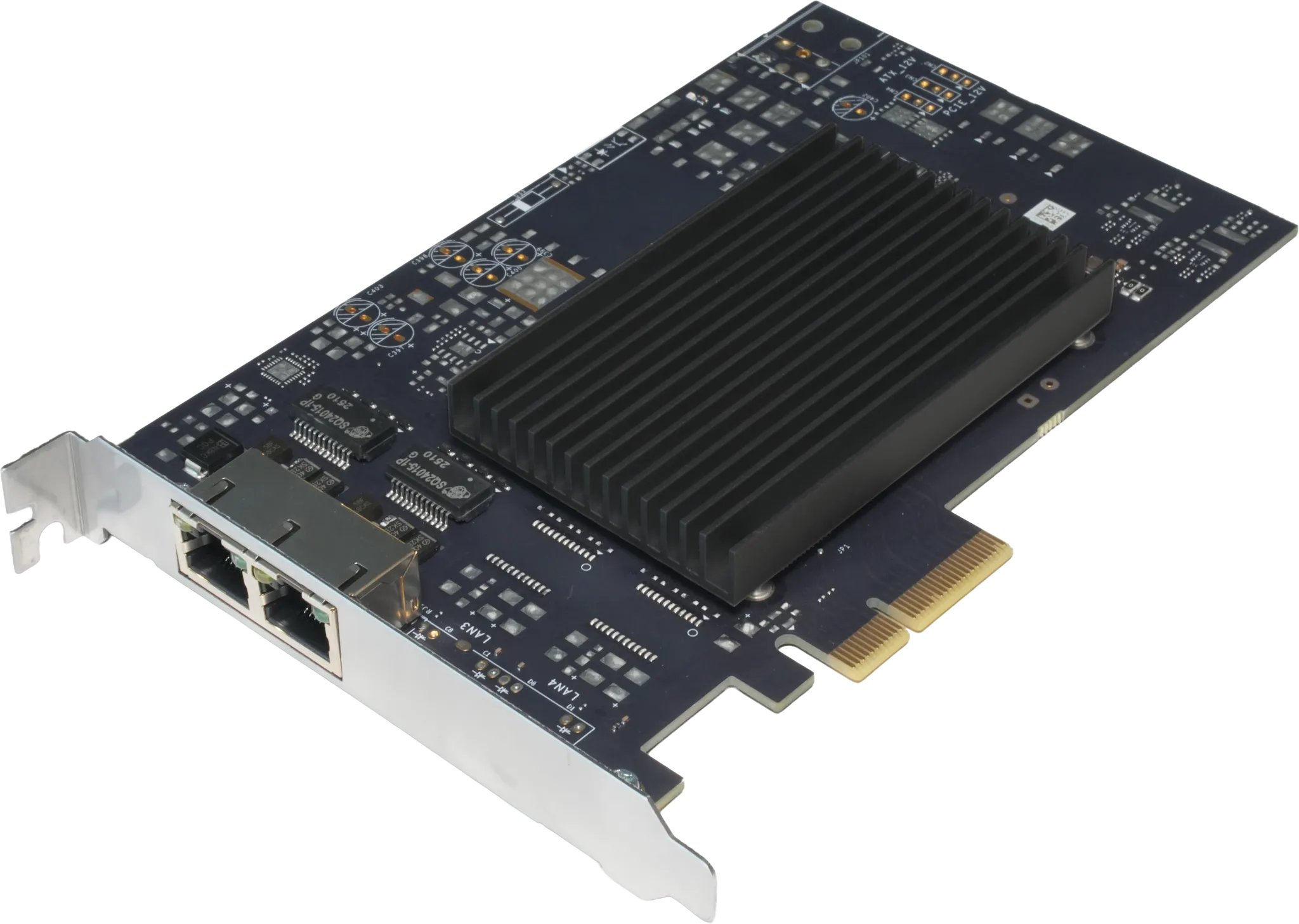

Dual 2.5G Ethernet Adaptor
Supports IEEE 802.3 protocol.
- Complies with the IEEE 802.3 standard.
- PCI-E Gen2 ×4 bus interface.
- Multiple independent 2.5 GigE ports.
- Supports 10/100/1000/2500 Mbps network rates.
- Jumbo frames up to 9 KB supported.
- Fits 3U and 4U chassis.
Camera Solutions
Dual 2.5G Ethernet Adaptor is a vision component from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-GE4002. Key data: certification CE, RoHS, KC. Typical use is connecting and powering machine vision systems. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
PCI-E Gen2 ×4 bus interface. Multiple independent 2.5 GigE ports. Supports 10/100/1000/2500 Mbps network rates. Jumbo frames up to 9 KB supported. Fits 3U and 4U chassis.
Product Highlights
Complies with the IEEE 802.3 standard. — PCI-E Gen2 ×4 bus interface. — Multiple independent 2.5 GigE ports. — Supports 10/100/1000/2500 Mbps network rates. — Jumbo frames up to 9 KB supported. — Fits 3U and 4U chassis.
Specifications
| Product Model | MV-GE4002 |
|---|---|
| Type | Dual 2.5G Ethernet Adaptor |
| Certification | CE, RoHS, KC |
| Interface | RJ45 × 2 RJ45 × 4 |
| Interconnect | PCI-E gen2 × 4 |
| Delivery Bandwidth | 2000 MB/s (max. transmission bandwidth) |
| Standard | IEEE 802.3 |
| Camera Type Supported | GigE industrial camera, 2.5 GigE industrial camera |
| Camera Quantity Supported | 2 at most 4 at most |
| Camera Connection Speed | 10/100/1000/2500 Mbps |
| Stream | 2 4 |
| Power Consumption | 4 W, 6.3 W |
| Dimension | 181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9") |
| Temperature | Working temperature: 0 °C to 55 °C (32 °F to 131 °F) Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
| Humidity | 10% RH to 95% RH (no condensation) |
| Operating System | Windows 7/10/11, Ubuntu18.04 to 24.04 on 64-bit Linux |
| Weight | Approx. 182 g (0.4 lb.), Approx. 190 g (0.4 lb.) |
