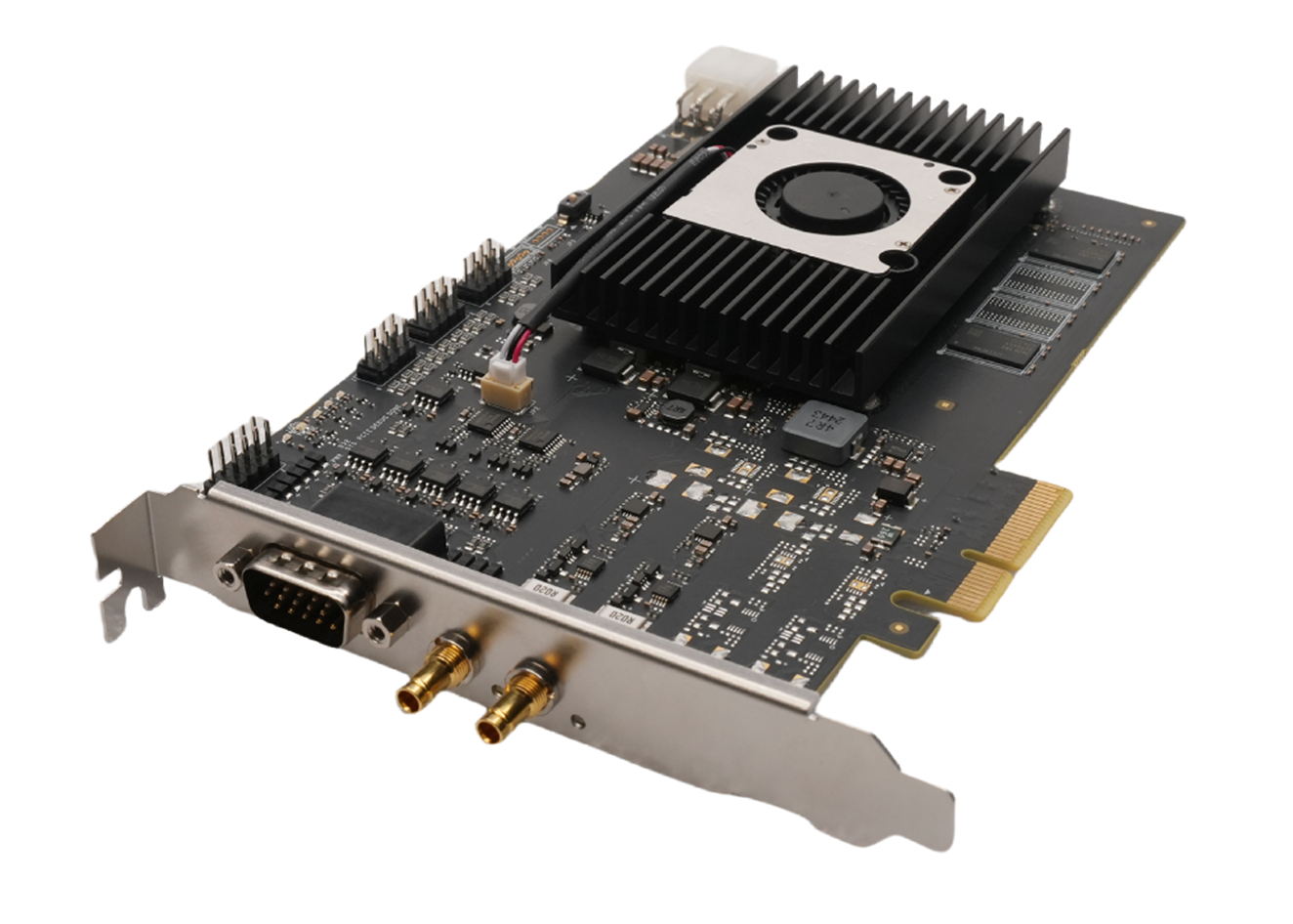

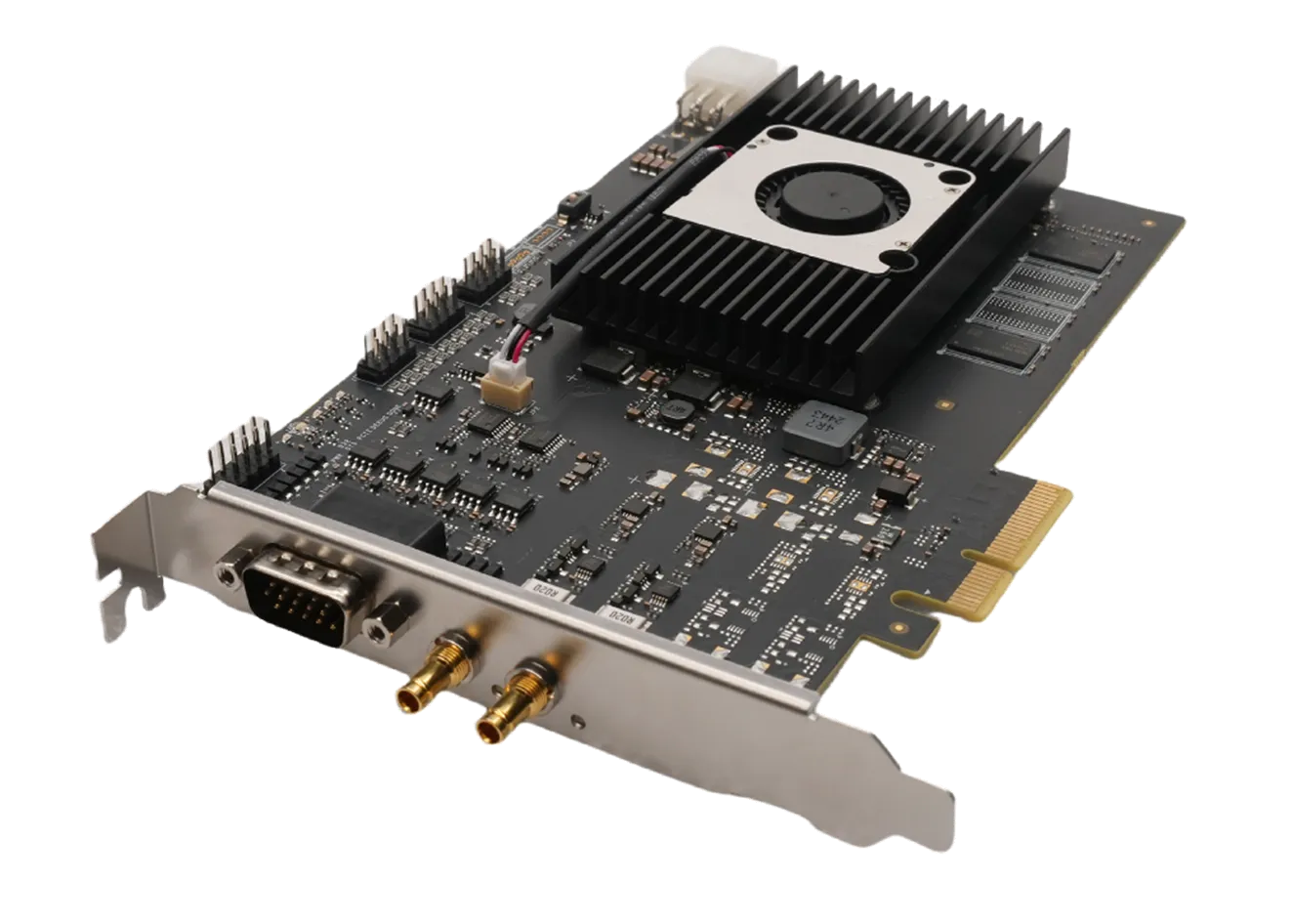

Dual CXP-6 Frame Grabber
Supports CXP-6 protocol with each DIN connector accessing up to 6.25 Gbps data transfer speed.
- Supports CXP-6 protocol with each DIN connector accessing up to 6.25 Gbps.
- PoCXP supported, with up to 13 W per channel.
- Indicators show frame-grabber status in real time.
- Multiple I/O connectors handle input and output.
- Includes an SDK for custom development.
- Complies with the GenICam standard.
Camera Solutions
Dual CXP-6 Frame Grabber is a vision component from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-GX1102. Key data: certification RoHS, CE, KC. Typical use is connecting and powering machine vision systems. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
PoCXP supported, with up to 13 W per channel. Indicators show frame-grabber status in real time. Multiple I/O connectors handle input and output. Includes an SDK for custom development. Complies with the GenICam standard.
Product Highlights
Supports CXP-6 protocol with each DIN connector accessing up to 6.25 Gbps. — PoCXP supported, with up to 13 W per channel. — Indicators show frame-grabber status in real time. — Multiple I/O connectors handle input and output. — Includes an SDK for custom development. — Complies with the GenICam standard.
Specifications
| Product Model | MV-GX1102 |
|---|---|
| Type | Dual CXP-6 Frame Grabber |
| Certification | RoHS, CE, KC |
| Interface | DIN 1.0/2.3 × 4, DIN 1.0/2.3 × 2 |
| On Board Memory | 4 GB DDR4-RAM, 2 GB DDR4-RAM |
| Interconnect | PCI-E gen3 × 4 |
| Delivery Bandwidth | 3400 MB/s (max. transmission bandwidth) 3350 MB/s (sustained transmission bandwidth) |
| Standard | CoaXPress 1.0/1.1 |
| Power Output | PoCXP, each channel provides 13 W @ 24 VDC at most |
| Camera Type Supported | CXP-6 connector industrial camera |
| Camera Quantity Supported | 4 at most, 2 at most |
| Camera Connection Speed | 1.25/2.5/3.125/5/6.25 Gbps (CXP-1/2/3/5/6) |
| Stream | 4, 2 |
| Stream Indicator | 4, 2 |
| Pixel Format | Mono 8/10/12/16 Bayer 8/10/12/16 RGB 8 |
| I/O Type | Configurable input/output × 11, compatible with single-ended/differential. I/O on bracket: Line 0 to Line 6 supports input and output (3.3 VDC to 24 VDC) I/O on PCB: Line 7 to Line 10 supports input and output (3.3 VDC to 24 VDC) |
| Connector | I/O on bracket: DB15 male header I/O on PCB: 9-pin header (2.54 mm interval, 2 × 5, 10-pin hole) |
| Power Consumption | Typ. 11.1 W (without PoCXP), Typ. 8.8 W (without PoCXP) |
| Dimension | 181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9") |
| Temperature | Working temperature: 0 °C to 55 °C (32 °F to 131 °F) Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
| Humidity | 10% RH to 95% RH (no condensation) |
| Client Software | MVS |
| Operating System | Windows 7/10/11, Ubuntu18.04 to 24.04 on 64-bit Linux |
| Bus Indicator | 1 |
