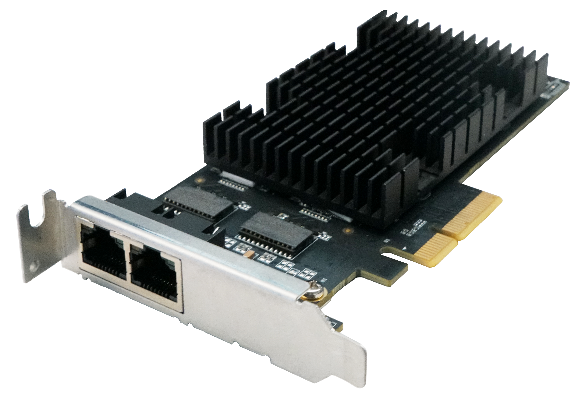

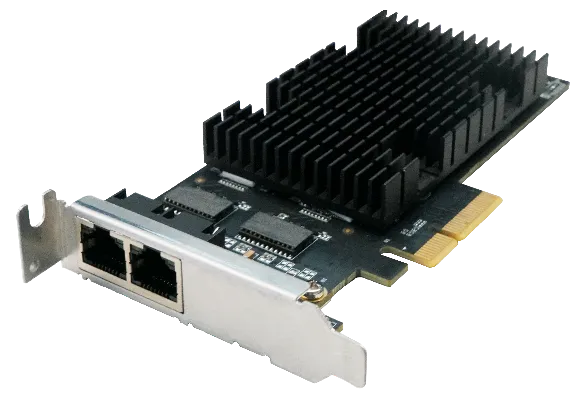

Dual GbE Adaptor Low profile V2.0
Supports IEEE 802.3 protocol.
Highlights
- Complies with the IEEE 802.3 standard.
- Multiple independent RJ45 connectors.
- 2U chassis compatible.
Not found what you are looking for?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Send inquiry
Camera Solutions
Dual GbE Adaptor Low profile V2.0 is a vision component from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-GE2002L V2.0. Key data: certification CE, RoHS, KC. Typical use is connecting and powering machine vision systems. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Multiple independent RJ45 connectors. 2U chassis compatible.
Product Highlights
Complies with the IEEE 802.3 standard. — Multiple independent RJ45 connectors. — 2U chassis compatible.
Specifications
| Product Model | MV-GE2002L V2.0 |
|---|---|
| Type | Dual GbE Adaptor Low profile V2.0 |
| Certification | CE, RoHS, KC |
| Interface | RJ45 × 2 |
| Interconnect | PCI-E gen2 × 4 |
| Delivery Bandwidth | 860 MB/s (max. transmission bandwidth) 800 MB/s (sustained transmission bandwidth) |
| Standard | IEEE 802.3 |
| Camera Type Supported | GigE industrial camera |
| Camera Quantity Supported | 2 at most |
| Camera Connection Speed | 10/100/1000 Mbps |
| Stream | 2 |
| Power Consumption | Typ. 4.3 W |
| Dimension | 161.4 mm × 79.2 mm × 20.7 mm (6.4" × 3.1" × 0.8") |
| Temperature | Working temperature: 0 °C to 60 °C (32 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 10% RH to 95% RH (no condensation) |
| Operating System | Windows 7/10/11, Linux |
| Weight | 125 g (0.3 lb.) |
