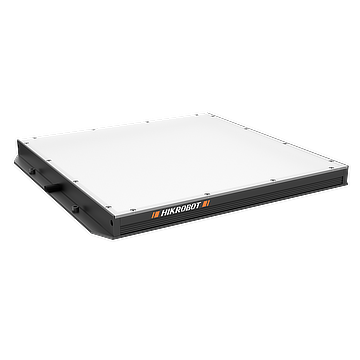

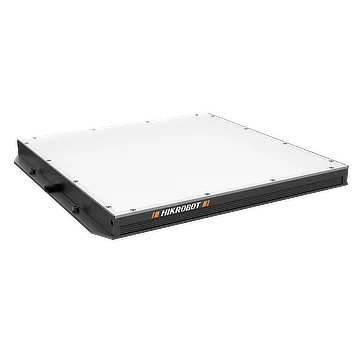

Flat lighting，200×200，white
Adopts high-density array LED design, and provides excellent lighting uniformity.
Highlights
- A high-density LED array delivers excellent lighting uniformity.
- Side mounting lugs allow flexible installation.
Not found what you are looking for?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Send inquiry
Camera Solutions
Flat lighting, 200×200, white is a machine vision light from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-LBSS-H-200-200-W. Key data: emitting area dimension 200 mm × 200 mm, color White, power 66 W. Typical use is creating stable, repeatable illumination. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Flat lighting, 150x150, white (MV-LBSS-H-150-150-W)
- Flat-type lightingV2.0, 150x150, white (MV-LBSS-H-150-150-W2)
- Flat-type lightingV2.0, 200x200, blue (MV-LBSS-H-200-200-B2)
- Flat-type lightingV2.0, 200x200, red (MV-LBSS-H-200-200-R2)
- Flat-type lightingV2.0, 200x200, white (MV-LBSS-H-200-200-W2)
- Flat-type lightingV2.0, 250x150, blue (MV-LBSS-H-250-150-B2)
- Flat-type lightingV2.0, 250x150, red (MV-LBSS-H-250-150-R2)
- Flat lighting, 250x150, white (MV-LBSS-H-250-150-W)
Description
Side mounting lugs allow flexible installation.
Flat lighting，200×200，white (MV-LBSS-H-200-200-W) at a glance: White light, 66 W power, 200 mm × 200 mm emitting area, 232 mm × 213 mm × 18 mm outer dimensions, SMR-03V-B connector, 1 m cable and weighs 0.8 kg. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.
Product Highlights
A high-density LED array delivers excellent lighting uniformity. — Side mounting lugs allow flexible installation.
Specifications
| Product Model | MV-LBSS-H-200-200-W |
|---|---|
| Type | Flat lighting，200x200，white |
| Color | White |
| Color Temperature | 6000 ~ 7000K |
| Power | 66 W |
| Connector Type | SMR-03V-B |
| Dimension | 232 mm × 213 mm × 18 mm |
| Weight | 0.8 kg |
| Cable Length | 1 m |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Diffuse Plate Included | Included |
| Emitting Area Dimension | 200 mm × 200 mm |
| Center Illuminance Irradiance | ≥ 80000 lux@100 mm |
