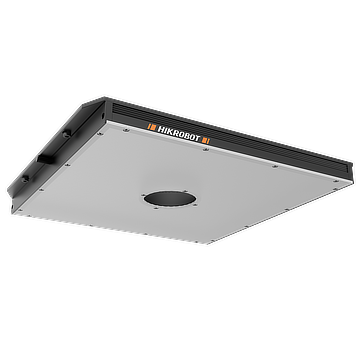

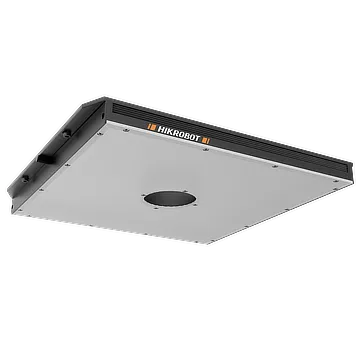

Flat lighting with hole，450×320，white
Adopts high-density array LED design.
Highlights
- Uses a high-density LED array.
- Centre opening (round or square) enables front lighting.
- Side mounting lugs allow flexible installation.
Not found what you are looking for?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Send inquiry
Camera Solutions
Flat lighting with hole, 450×320, white is a machine vision light from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-LBES-H-450-320-W. Key data: emitting area dimension 450 mm × 320 mm, color White, power 198 W. Typical use is creating stable, repeatable illumination. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Flat lighting with hole, 400x300, white (MV-LBES-H-400-300-W)
- Flat lighting with holeV2.0, 400*300, white (MV-LBES-H-400-300-W2)
- Flat lighting with holeV2.0, 450*320, blue (MV-LBES-H-450-320-B2)
- Flat lighting with holeV2.0, 450*320, red (MV-LBES-H-450-320-R2)
- Flat lighting with holeV2.0, 450*320, white (MV-LBES-H-450-320-W2)
- Flat lighting with holeV2.0, 50*50, blue (MV-LBES-H-50-50-B2)
- Flat lighting with holeV2.0, 50*50, red (MV-LBES-H-50-50-R2)
- Flat lighting with hole, 50x50, white (MV-LBES-H-50-50-W)
Description
Centre opening (round or square) enables front lighting. Side mounting lugs allow flexible installation.
Flat lighting with hole，450×320，white (MV-LBES-H-450-320-W) at a glance: White light, 198 W power, 450 mm × 320 mm emitting area, 488 mm × 335 mm × 21 mm outer dimensions, Dual-channel 19M-2A connector, 1 m cable and weighs 3.2 kg. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.
Product Highlights
Uses a high-density LED array. — Centre opening (round or square) enables front lighting. — Side mounting lugs allow flexible installation.
Specifications
| Product Model | MV-LBES-H-450-320-W |
|---|---|
| Type | Flat lighting with hole，450x320，white |
| Color | White |
| Wavelength | / |
| Color Temperature | 6000 ~ 7000K |
| Power | 198 W |
| Connector Type | Dual-channel 19M-2A |
| Dimension | 488 mm × 335 mm × 21 mm |
| Bore Dimension | Φ70 mm |
| Weight | 3.2 kg |
| Cable Length | 1 m |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Diffuse Plate Included | Included |
| Emitting Area Dimension | 450 mm × 320 mm |
| Center Illuminance Irradiance | ≥ 16000 lux@600 mm |
