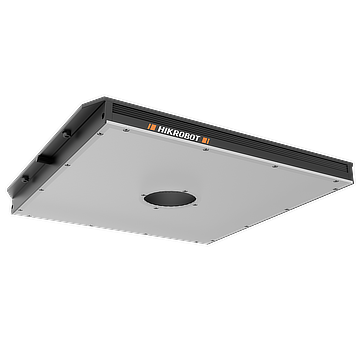

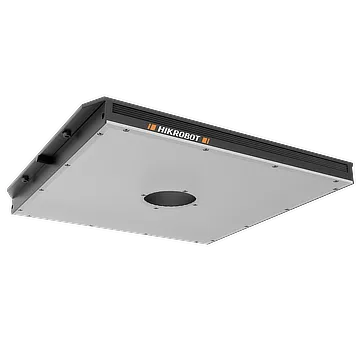

Flat lighting with holeV2.0，120*120，blue
Adopts high-density array LED design.
Highlights
- Uses a high-density LED array.
- Centre opening (round or square) enables front lighting.
- Side mounting lugs allow flexible installation.
Not found what you are looking for?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Send inquiry
Camera Solutions
Flat lighting with holeV2.0, 120*120, blue is a machine vision light from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-LBES-H-120-120-B2. Key data: emitting area dimension 120 mm × 120 mm, color Blue, power 15.3 W, input voltage 24 VDC. Typical use is creating stable, repeatable illumination. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Flat lighting with holeV2.0, 100*100, blue (MV-LBES-H-100-100-B2)
- Flat lighting with holeV2.0, 100*100, red (MV-LBES-H-100-100-R2)
- Flat lighting with hole, 100x100, white (MV-LBES-H-100-100-W)
- Flat lighting with holeV2.0, 100*100, white (MV-LBES-H-100-100-W2)
- Flat lighting with holeV2.0, 120*120, red (MV-LBES-H-120-120-R2)
- Flat lighting with hole, 120x120, white (MV-LBES-H-120-120-W)
- Flat lighting with holeV2.0, 120*120, white (MV-LBES-H-120-120-W2)
- Flat lighting with holeV2.0, 150*150, blue (MV-LBES-H-150-150-B2)
Description
Centre opening (round or square) enables front lighting. Side mounting lugs allow flexible installation.
Flat lighting with holeV2.0，120*120，blue (MV-LBES-H-120-120-B2) at a glance: Blue light, 470 nm wavelength, 15.3 W power, 120 mm × 120 mm emitting area, 152 mm × 133 mm × 18 mm outer dimensions, SMR-03V-B connector, 1 m cable and weighs 0.4 kg. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.
Product Highlights
Uses a high-density LED array. — Centre opening (round or square) enables front lighting. — Side mounting lugs allow flexible installation.
Specifications
| Product Model | MV-LBES-H-120-120-B2 |
|---|---|
| Type | Flat lighting with holeV2.0，120*120，blue |
| Color | Blue |
| Wavelength | 470 nm |
| Color Temperature | / |
| Power | 15.3 W |
| Connector Type | SMR-03V-B |
| Dimension | 152 mm × 133 mm × 18 mm |
| Bore Dimension | Ø 40 mm |
| Weight | 0.4 kg |
| Cable Length | 1 m |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Diffuse Plate Included | Included |
| Emitting Area Dimension | 120 mm × 120 mm |
| Center Illuminance Irradiance | ≥ 1800 lux@200 mm |
| Input Voltage | 24 VDC |
