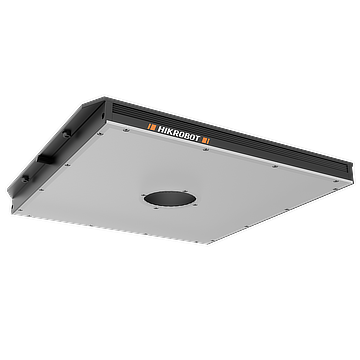

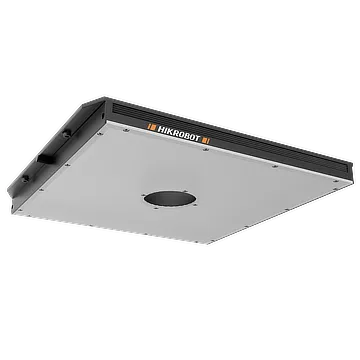

Flat lighting with holeV2.0，250*200，red
Adopts high-density array LED design.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Centre opening (round or square) enables front lighting. Side mounting lugs allow flexible installation.
Product Highlights
Uses a high-density LED array. — Centre opening (round or square) enables front lighting. — Side mounting lugs allow flexible installation.
Specifications
| Product Model | MV-LBES-H-250-200-R2 |
|---|---|
| Type | Flat lighting with holeV2.0，250*200，red |
| Color | Red |
| Wavelength | 625 nm |
| Color Temperature | / |
| Power | 45.7 W |
| Connector Type | SMR-03V-B |
| Dimension | 282 mm × 213 mm × 19 mm |
| Bore Dimension | Ø 60 mm |
| Weight | 1 kg |
| Cable Length | 1 m |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Diffuse Plate Included | Included |
| Emitting Area Dimension | 250 mm × 200 mm |
| Center Illuminance Irradiance | ≥ 6500 lux@200 mm |
| Input Voltage | 24 VDC |
