Flat-type lightingV2.0，50×30，white
Adopts high-density array LED design, and provides excellent lighting uniformity.
Highlights
- A high-density LED array delivers excellent lighting uniformity.
- Side mounting lugs allow flexible installation.
Not found what you are looking for?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Send inquiry
Camera Solutions

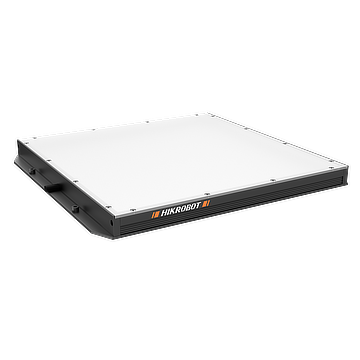

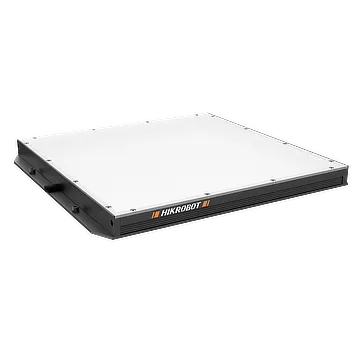

Flat-type lightingV2.0, 50×30, white is a machine vision light from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-LBSS-H-50-30-W2. Key data: emitting area dimension 50 mm × 30 mm, color White, power 3.4 W, input voltage 24 VDC. Typical use is creating stable, repeatable illumination. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Flat-type lightingV2.0, 400x300, white (MV-LBSS-H-400-300-W2)
- Flat-type lightingV2.0, 50x30, blue (MV-LBSS-H-50-30-B2)
- Flat-type lightingV2.0, 50x30, red (MV-LBSS-H-50-30-R2)
- Flat lighting, 50x30, white (MV-LBSS-H-50-30-W)
- Flat-type lightingV2.0, 50x50, blue (MV-LBSS-H-50-50-B2)
- Flat-type lightingV2.0, 50x50, red (MV-LBSS-H-50-50-R2)
- Flat lighting, 50x50, white (MV-LBSS-H-50-50-W)
- Flat-type lightingV2.0, 50x50, white (MV-LBSS-H-50-50-W2)
Description
Side mounting lugs allow flexible installation.
Flat-type lightingV2.0，50×30，white (MV-LBSS-H-50-30-W2) at a glance: White light, 3.4 W power, 50 mm × 30 mm emitting area, 82 mm × 43 mm × 18 mm outer dimensions, SMR-03V-B connector, 1 m cable and weighs 0.1 kg. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.
Product Highlights
A high-density LED array delivers excellent lighting uniformity. — Side mounting lugs allow flexible installation.
Specifications
| Product Model | MV-LBSS-H-50-30-W2 |
|---|---|
| Type | Flat-type lightingV2.0，50x30，white |
| Color | White |
| Wavelength | / |
| Color Temperature | 6000 ~ 7000K |
| Power | 3.4 W |
| Connector Type | SMR-03V-B |
| Dimension | 82 mm × 43 mm × 18 mm |
| Weight | 0.1 kg |
| Cable Length | 1 m |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Diffuse Plate Included | Included |
| Emitting Area Dimension | 50 mm × 30 mm |
| Center Illuminance Irradiance | ≥ 6000 lux@100 mm |
| Input Voltage | 24 VDC |
| Cooling Mode | Natural cooling |
