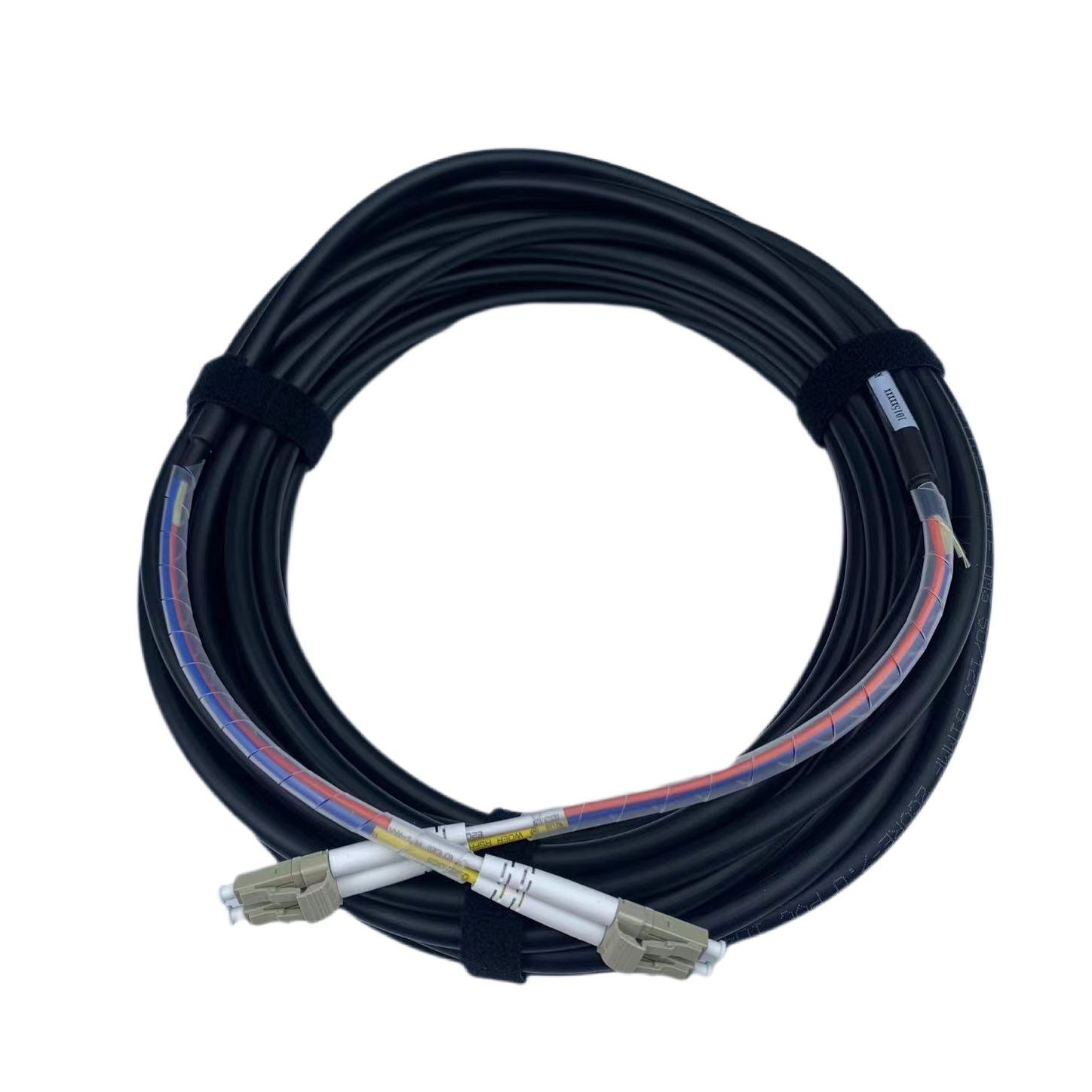

Fiber Optic Cable, LC (2-core) to LC (2-core), 5 m
The high flex 10 GigE optical fiber patch cord, with central wavelength 850 nm and multimode 50 μm/125 μm, can be used for data transmission of 10 GigE optical fiber port in static scenes.
Not found what you are looking for?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Send inquiry
Camera Solutions
Fiber Optic Cable, LC (2-core) to LC (2-core), 5 m is a vision component from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-AC10G-2LC-2LC-ST-5m. Key data: certification RoHS. Typical use is connecting and powering machine vision systems. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Product Highlights
High-flex 10 GigE optical fibre patch cord, 850 nm, 50 µm/125 µm multimode, for static-installation 10 GigE cameras.
Specifications
| Product Model | MV-AC10G-2LC-2LC-ST-5m |
|---|---|
| Type | Fiber Optic Cable, LC (2-core) to LC (2-core), 5 m |
| End A Connector | LC (2-core) |
| End B Connector | LC (2-core) |
| Cable Diameter | 6.5 mm |
| Length | 5 m |
| Cable Color | Black |
| Connector Durability | 200 mating cycles |
| Applicable Scenario | Static scenes |
| Working Temperature | –20 °C to 75 °C (–4 °F to 167 °F) |
| Certification | RoHS |
| Packaging | Individual package |
| Fiber Type | Multimode 50 μm/125 μm |
| Central Wavelength | 850 nm |
| Insertion Loss | ≤ 0.30 dB |
| Return Loss | ≥ 36 dB |
