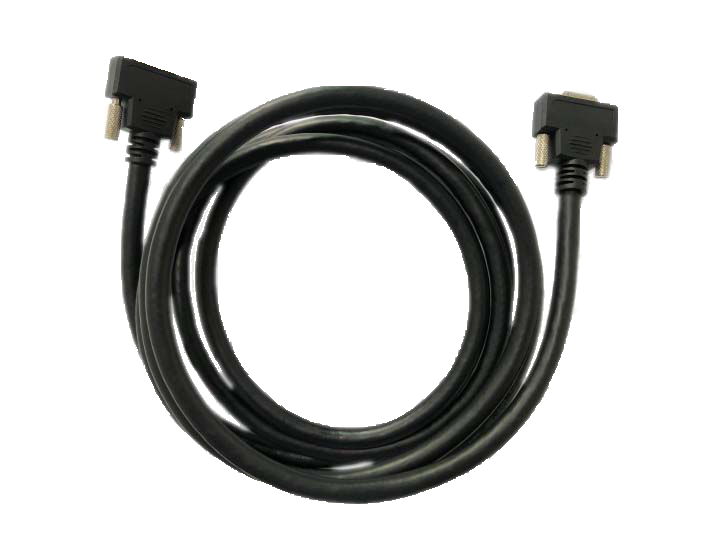

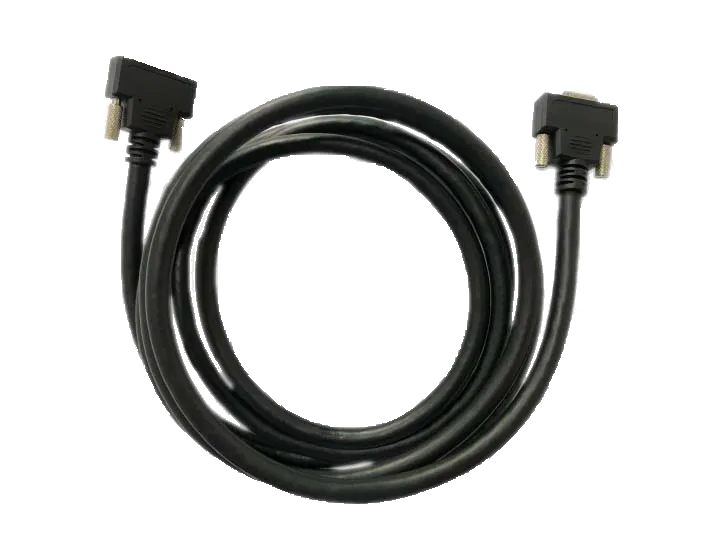

Camera Link Cable, MDR26 to MDR26, 7 m, High-Flex
The Camera Link Flex Data Cable can be used for data transmission of Camera Link interface cameras, and is available in a variety of lengths.
Not found what you are looking for?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Send inquiry
Camera Solutions
Camera Link Cable, MDR26 to MDR26, 7 m, High-Flex is a vision component from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-ACCL-MDR-MDR-HF-7m. Key data: certification UL. Typical use is connecting and powering machine vision systems. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Product Highlights
Camera Link Flex Data Cables carry Camera Link data and are available in multiple lengths.
Specifications
| Product Model | MV-ACCL-MDR-MDR-HF-7m |
|---|---|
| Type | Camera Link Cable, MDR26 to MDR26, 7 m, High-Flex |
| End A Connector | MDR26 |
| End B Connector | MDR26 |
| Cable Diameter | 9.5 mm |
| Length | 7 m |
| Cable Mechanical | UL20276 |
| Jacket | PVC |
| Cable Color | Black |
| Connector Durability | ≥500 cycles |
| Min Bending Radius | 114 mm |
| Applicable Scenario | Drag chain |
| Max Voltage | 30 VDC |
| Working Temperature | -20°C~80°C |
| Certification | UL |
| Packaging | Individual package |
| Max U Type Bending Cycles | 5 million times |
| Connector Model | made in China |
