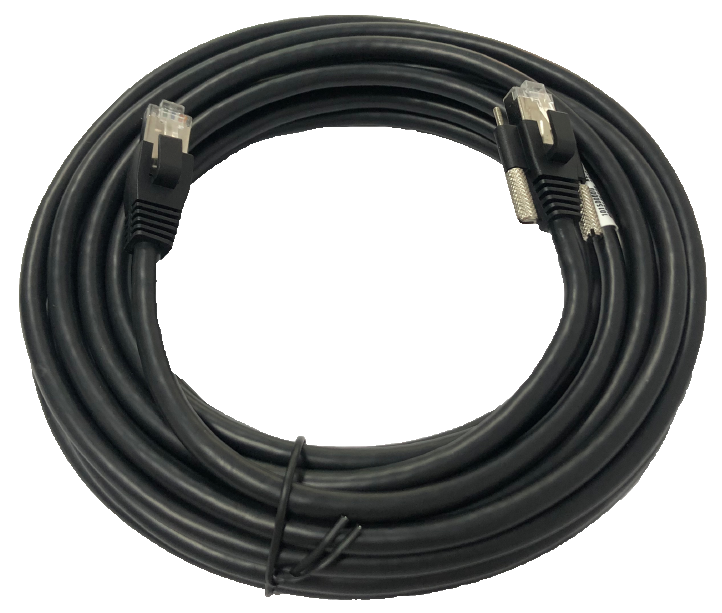

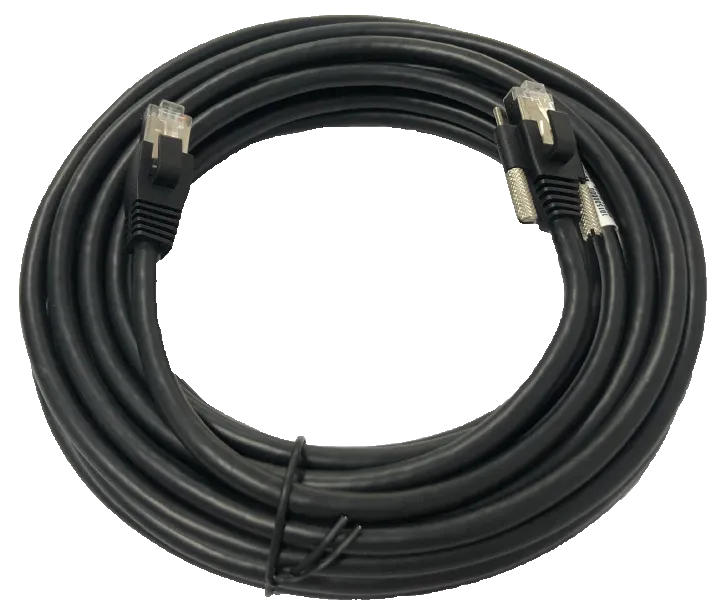

GigE Cable, RJ45 (with locking stud) to RJ45, 10 m, High-Flex
The RJ45 High Flex Gigabit Ethernet Cable can be used for data transmission of RJ45 Gigabit Ethernet interface cameras, and is available in a variety of lengths.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Product Highlights
RJ45 High Flex Gigabit Ethernet Cables carry data for RJ45 GigE cameras; available in multiple lengths.
Specifications
| Product Model | MV-ACG-RJ45s-RJ45-HF-10m |
|---|---|
| Type | GigE Cable, RJ45 (with locking stud) to RJ45, 10 m, High-Flex |
| End A Connector | RJ45 (with locking stud) |
| End B Connector | RJ45 |
| Cable Diameter | 6.5 mm |
| Length | 10 m |
| Cable Mechanical | 4P*26#+AB |
| Jacket | PVC |
| Cable Color | Black |
| Connector Durability | ≥750 cycles |
| Min Bending Radius | 78 mm |
| Applicable Scenario | Tank chain |
| Max Voltage | 30 VDC |
| Working Temperature | -20°C~ 75°C |
| Certification | RoHS2.0,UL |
| Packaging | Individual package |
| Max U Type Bending Cycles | 5 million times |
