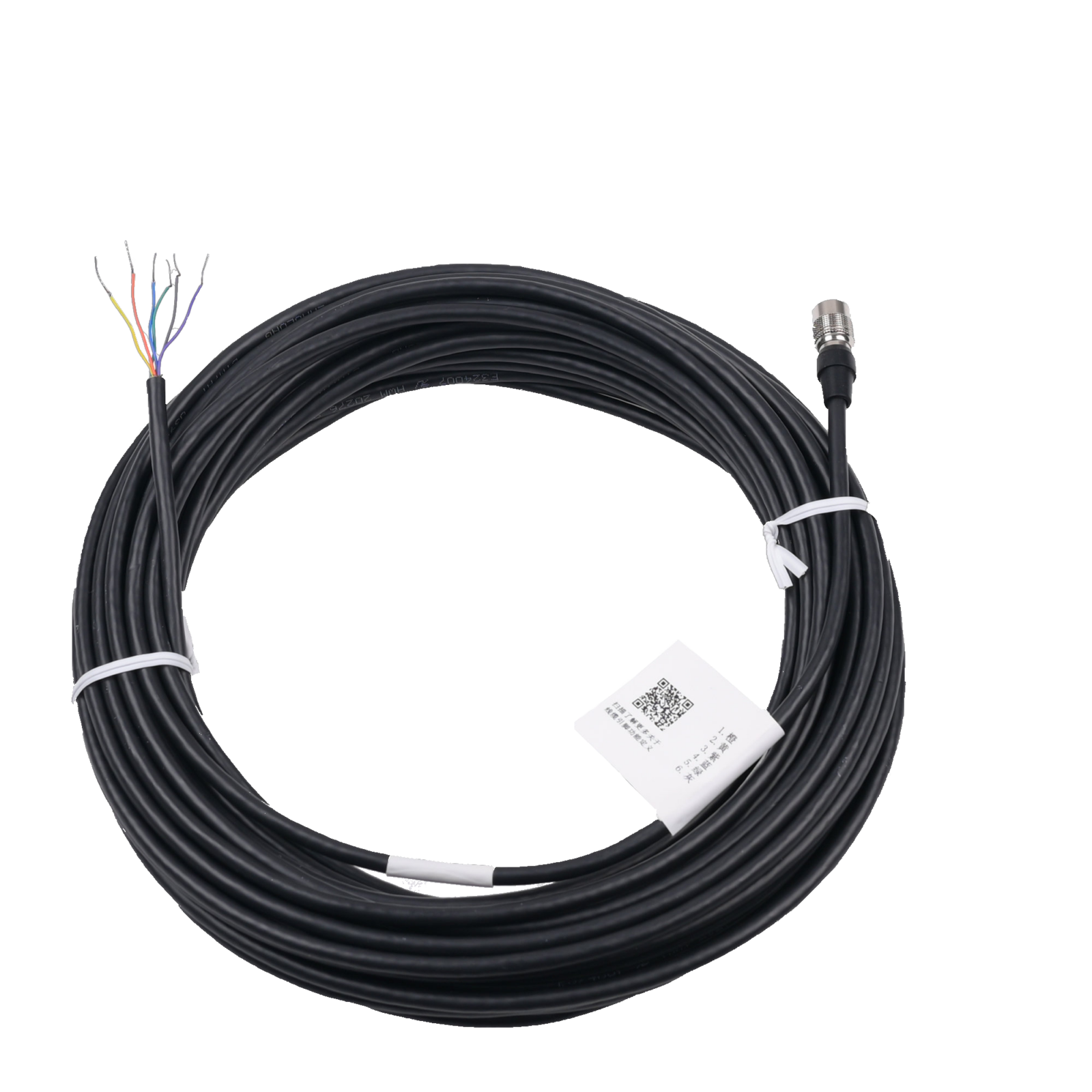

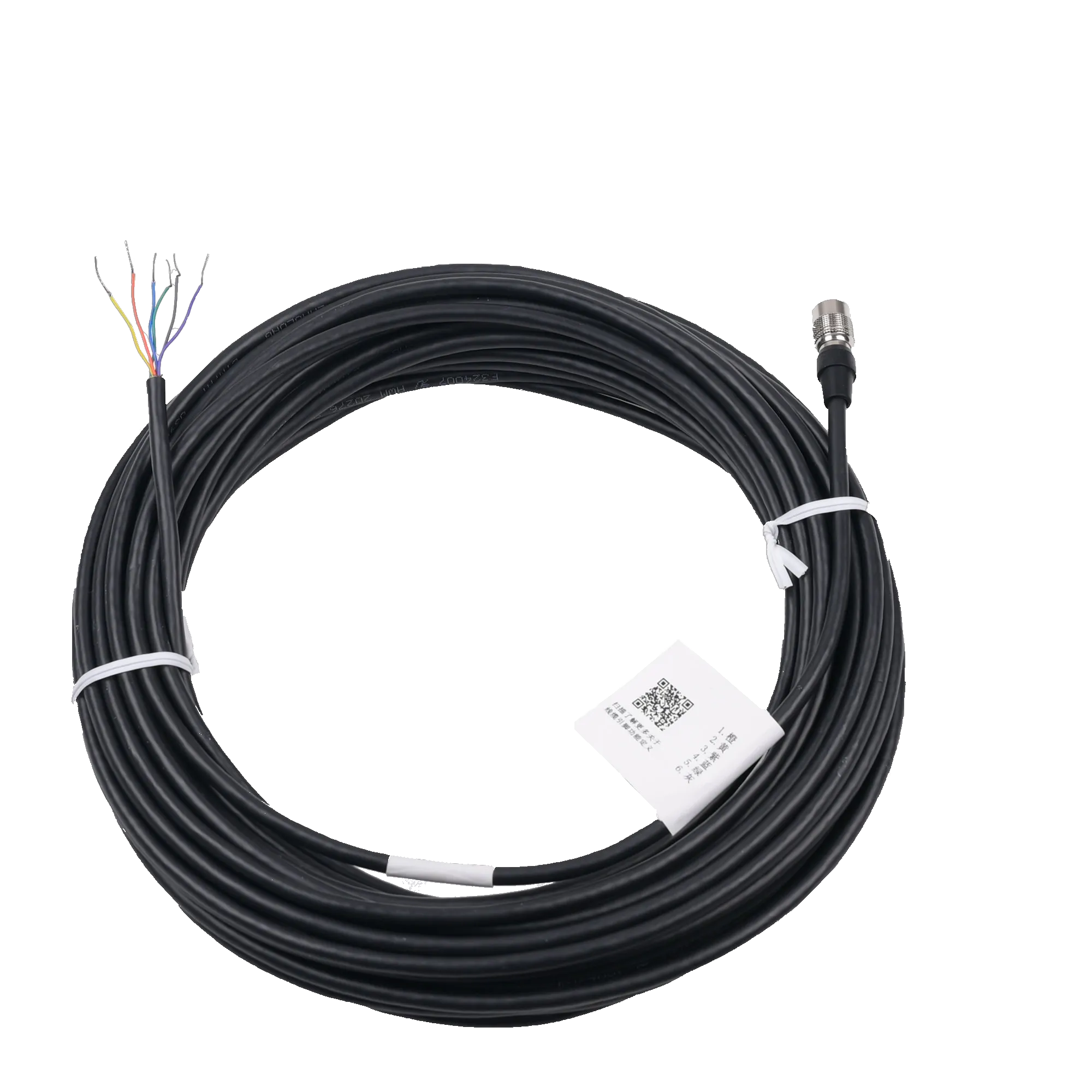

Power & I/O Cable, P7 6-pin, Female to Open, 10 m
The 6-pin P7 Standard Power&I/O Cable can be used to power the camera, I/O signal wiring, and is available in a variety of lengths.
Not found what you are looking for?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Send inquiry
Camera Solutions
Power & I/O Cable, P7 6-pin, Female to Open, 10 m is a vision component from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-ACP-H6p-open-ST-10m. Key data: certification RoHS2.0,UL. Typical use is connecting and powering machine vision systems. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Power & I/O Cable, P7 6-pin, Female, Black insulator, Solder type to Open, 15 m, Super-Flex (MV-ACP-H6p-open-SF-15m)
- Power & I/O Cable, P7 6-pin, Female, Black insulator, Solder type to Open, 3 m, Super-Flex (MV-ACP-H6p-open-SF-3m)
- Power & I/O Cable, P7 6-pin, Female, Black insulator, Solder type to Open, 5 m, Super-Flex (MV-ACP-H6p-open-SF-5m)
- Power & I/O Cable, P7 6-pin, Female, Black insulator, Solder type to Open, 7 m, Super-Flex (MV-ACP-H6p-open-SF-7m)
- Power & I/O Cable, P7 6-pin, Female to Open, 15 m (MV-ACP-H6p-open-ST-15m)
- Power & I/O Cable, P7 6-pin, Female to Open, 1 m (MV-ACP-H6p-open-ST-1m)
- Power & I/O Cable, P7 6-pin, Female to Open, 30 m (MV-ACP-H6p-open-ST-30m)
- Power & I/O Cable, P7 6-pin, Female to Open, 3 m (MV-ACP-H6p-open-ST-3m)
Product Highlights
6-pin P7 Standard Power & I/O Cables power the camera and carry I/O signals; available in multiple lengths.
Specifications
| Product Model | MV-ACP-H6p-open-ST-10m |
|---|---|
| Type | Power & I/O Cable, P7 6-pin, Female to Open, 10 m |
| End A Connector | P7 6-pin,Femal |
| End B Connector | Open |
| Cable Diameter | 5.0 mm |
| Length | 10 m |
| Cable Mechanical | 26#×2P+26#×2C+AB |
| Jacket | PVC |
| Cable Color | Black |
| Connector Durability | ≥ 750 cycles |
| Min Bending Radius | 60 mm |
| Applicable Scenario | Static scene |
| Max Voltage | 30 VDC |
| Working Temperature | -20°C~75°C |
| Certification | RoHS2.0,UL |
| Packaging | Individual package |
| Connector Model | made in China |
