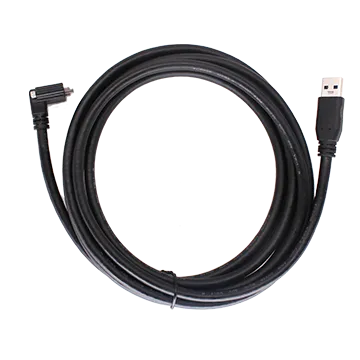

USB3.0 Cable, Micro-B male (with screw), Angle (down) to A male, 3 m
The USB3.0 Standard (Angle) Data Cable can be used for data transmission and power supply of USB3.0 interface cameras, and is available in a variety of lengths.
Not found what you are looking for?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Send inquiry
Camera Solutions
USB3.0 Cable, Micro-B male (with screw), Angle (down) to A male, 3 m is a vision component from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-ACU3-MBMs(down)-AM-ST-3m. Key data: certification RoHS,UL. Typical use is connecting and powering machine vision systems. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- USB3.0 AOC fiber cable (MV-ACU3-MBMs-AM-SF-7m)
- USB3.0 Cable, Micro-B male (with screw) to A male, 0.5 m (MV-ACU3-MBMs-AM-ST-0.5m)
- USB3.0 Cable, Micro-B male (with screw) to A male, 1 m (MV-ACU3-MBMs-AM-ST-1m)
- USB3.0 Cable, Micro-B male (with screw) to A male, 2 m (MV-ACU3-MBMs-AM-ST-2m)
- USB3.0 Cable, Micro-B male (with screw) to A male, 3 m (MV-ACU3-MBMs-AM-ST-3m)
- USB3.0 Cable, Micro-B male (with screw), Angle (down) to A male, 0.5 m (MV-ACU3-MBMs(down)-AM-ST-0.5m)
- USB3.0 Cable, Micro-B male (with screw), Angle (down) to A male, 1 m (MV-ACU3-MBMs(down)-AM-ST-1m)
- USB3.0 Cable, Micro-B male (with screw), Angle (down) to A male, 2 m (MV-ACU3-MBMs(down)-AM-ST-2m)
Product Highlights
USB 3.0 Standard Angled Data Cables carry data and supply power for USB 3.0 cameras; available in multiple lengths.
Specifications
| Product Model | MV-ACU3-MBMs(down)-AM-ST-3m |
|---|---|
| Type | USB3.0 Cable, Micro-B male (with screw), Angle (down) to A male, 3 m |
| End A Connector | Micro-B male (with screw) ,Angle (down) |
| End B Connector | A male |
| Cable Diameter | 6.8 mm |
| Length | 3 m |
| Cable Mechanical | (26#*1P+EAM)*2+26#*1P*20#*2C+AEB |
| Jacket | Nitrile PVC |
| Cable Color | Black |
| Connector Durability | >750 cycles |
| Min Bending Radius | 81.6 mm |
| Applicable Scenario | Static scene |
| Max Voltage | 5 VDC |
| Working Temperature | -20°C~ 80°C |
| Certification | RoHS,UL |
| Packaging | Individual package |
