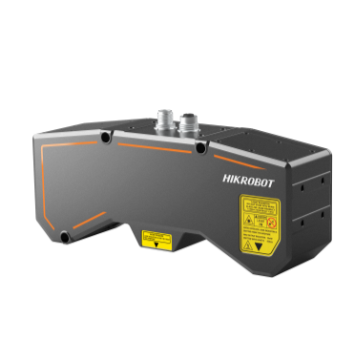

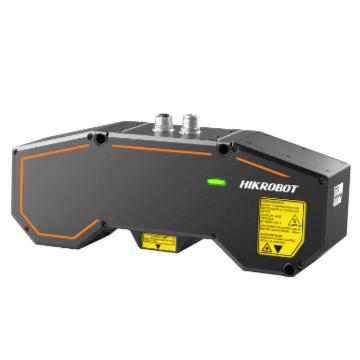

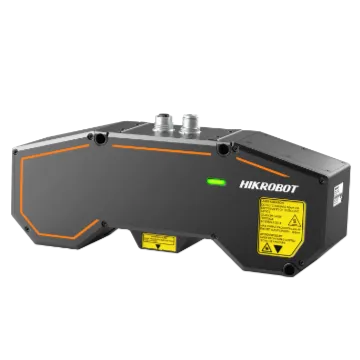

3D Camera DP3060-01D, ref. distance 60 mm, Z-range 20.5 mm
Dual-mode image sensor to eliminate blind area of FOV and suppress stray light.
- Dual-mode image sensor eliminates FOV blind spots and suppresses stray light.
- Built-in heater maintains operating temperature in cold environments.
- High-frame-rate chip scans at up to 19 kHz.
- Multiple exposure modes for wider dynamic range.
- Image integration algorithm delivers complete point cloud data.
- Multiple filter modes for stable point cloud data.
Camera Solutions
3D Camera DP3060-01D, ref. distance 60 mm, Z-range 20.5 mm is a 3D sensor from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-DP3060-01D(海外标配). Key data: reference distance 60 mm, measurement range z axis 20.5 mm. Typical use is height, volume and profile measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Built-in heater maintains operating temperature in cold environments. High-frame-rate chip scans at up to 19 kHz. Multiple exposure modes for wider dynamic range. Image integration algorithm delivers complete point cloud data. Multiple filter modes for stable point cloud data.
Product Highlights
Dual-mode image sensor eliminates FOV blind spots and suppresses stray light. — Built-in heater maintains operating temperature in cold environments. — High-frame-rate chip scans at up to 19 kHz. — Multiple exposure modes for wider dynamic range. — Image integration algorithm delivers complete point cloud data. — Multiple filter modes for stable point cloud data.
Specifications
| Product Model | MV-DP3060-01D(海外标配) |
|---|---|
| Type | 3D Camera DP3060-01D, ref. distance 60 mm, Z-range 20.5 mm |
| Data Points Profile | 3200 |
| Reference Distance | 60 mm |
| Measurement Range Z Axis | 20.5 mm |
| Measurement Range X Axis | 27.5 mm @ near field of view 30.5 mm @ reference distance 33.5 mm @ far field of view |
| Resolution Z Axis | 1.45 μm to 2.17 μm |
| Repeatability Z Axis | 0.44 μm @ data that sensor tests gauge block on optical platform |
| Linearity Z Axis Of Mr | 0.008 |
| Profile Data Interval | 8.9 μm to 11.1 μm |
| Scan Frame Rate | 1.3 kHz (within max. measurement range), max. 19 kHz (in ROI mode) |
| Data Output | Profile data, depth image, brightness image, width image |
| Trigger Mode | Software trigger, hardware trigger (differential encoder) |
| Laser Safety Class | Class 3R |
| Wavelength | 405 nm |
| Data Interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 12-pin M12 interface provides power and I/O, including differential input × 3 (Line 0/3/6), differential output × 1 (Line 1), and RS-232 × 1 |
| Power Consumption | Typ. 21 W @ 24 VDC |
| Power Supply | 24 VDC |
| Dimension | 258 mm × 97.5 mm × 66 mm (10.2" × 3.8" × 2.6") |
| Weight | Approx. 1510 g (3.3 lb.) |
| Ingress Protection | IP67 |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Client Software | 3DMVS, VM3D, or other 3D software |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended) |
