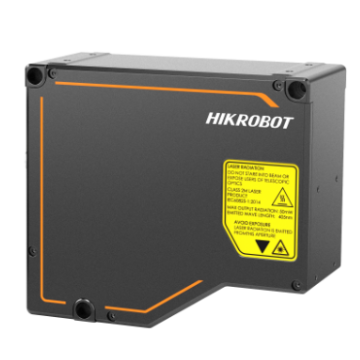

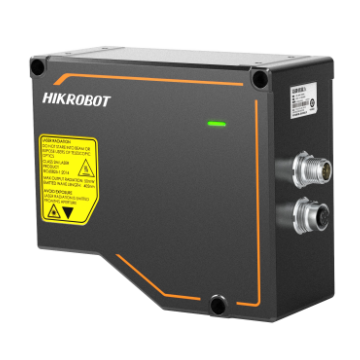

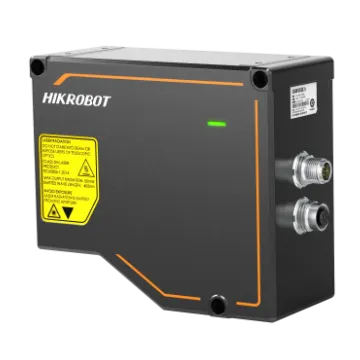

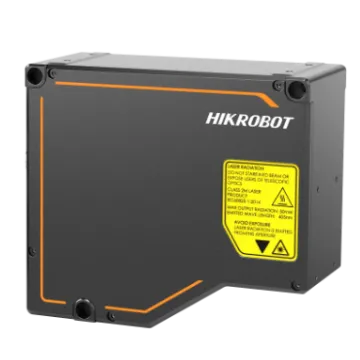

3D Camera DP3062-01P, ref. distance 61.5 mm, Z-range 10 mm
Built-in high-accuracy algorithm and accuracy is up to submicron level.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
High-frame-rate sensor scans at up to 46.7 kHz. Offers multiple exposure modes for robust imaging. Multi-frame integration provides complete contours. Multiple filter modes deliver stable data. ROI selection with auto settings for simpler operation.
Product Highlights
Built-in high-accuracy algorithm reaches submicron precision. — High-frame-rate sensor scans at up to 46.7 kHz. — Offers multiple exposure modes for robust imaging. — Multi-frame integration provides complete contours. — Multiple filter modes deliver stable data. — ROI selection with auto settings for simpler operation.
Specifications
| Product Model | MV-DP3062-01P |
|---|---|
| Type | 3D Camera DP3062-01P, ref. distance 61.5 mm, Z-range 10 mm |
| Data Points Profile | 3200 |
| Reference Distance | 61.5 mm |
| Measurement Range Z Axis | 10 mm |
| Measurement Range X Axis | 16.6 mm @ near field of view 17.8 mm @ reference distance 19 mm @ far field of view |
| Resolution Z Axis | 0.5 μm to 0.8 μm |
| Repeatability Z Axis | 0.1 μm @ data that sensor tests gauge block on optical platform |
| Linearity Z Axis Of Mr | 0.01 |
| Profile Data Interval | 5.2 μm to 5.9 μm |
| Scan Frame Rate | 1.3 kHz (within max. measurement range), max. 19 kHz (in ROI mode) |
| Data Output | Profile data, depth image, brightness image |
| Trigger Mode | Software trigger, hardware trigger (differential encoder) |
| Laser Safety Class | Class 3B |
| Wavelength | 405 nm |
| Data Interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 12-pin M12 interface provides power and I/O, including differential input × 3 (Line 0/3/6), differential output × 1 (Line 1), and RS-232 × 1 |
| Power Consumption | Typ. 13.8 W @ 24 VDC |
| Power Supply | 24 VDC |
| Dimension | 136.5 mm × 120 mm × 60.5 mm (5.4" × 4.7" × 2.4") |
| Weight | Approx. 1080 g (2.4 lb.) |
| Ingress Protection | IP67 |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Client Software | 3DMVS, VM3D, or third-party 3D software |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended) |
