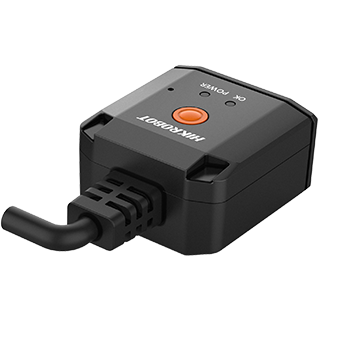

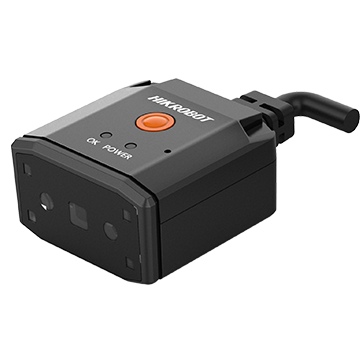

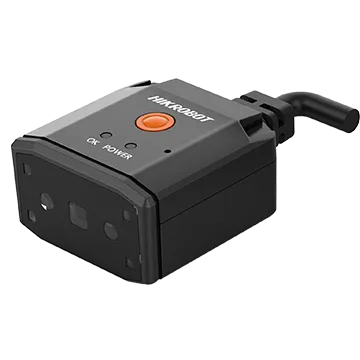

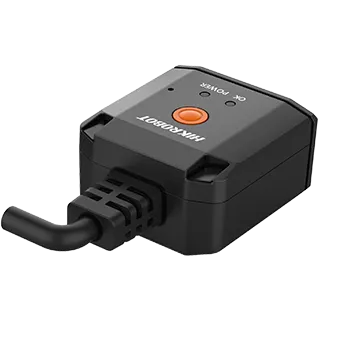

MV-ID2013EMI-05H-RBN-U
Compact design and small in size.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Includes multiple I/O interfaces and a plug-in power connector. An LED aiming light helps line up codes. A buzzer and indicator signal device status. One-click parameter setup keeps operation simple. Built-in light-source control allows flexible configuration.
Product Highlights
Compact and small-footprint design. — Includes multiple I/O interfaces and a plug-in power connector. — An LED aiming light helps line up codes. — A buzzer and indicator signal device status. — One-click parameter setup keeps operation simple. — Built-in light-source control allows flexible configuration.
Specifications
| Product Model | MV-ID2013EMI-05H-RBN-U |
|---|---|
| Type | MV-ID2013EMI-05H-RBN-U |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, EAN8, EAN13, ITF 14, ITF 25, CodaBar, EAN, UPCA, UPCE 2D codes: QR Code, Data Matrix, MicroQR, AZTEC, HanXin Stacked codes: PDF417 |
| Max Frame Rate | 50 fps |
| Max Reading Speed | 30 codes/sec |
| Sensor Type | CMOS, global shutter |
| Pixel Size | 2.7 μm × 2.7 μm |
| Sensor Size | 1/4" |
| Resolution | 1024 × 1280 |
| Exposure Time | 60 μs to 6000 μs |
| Gain | 1 dB to 28 dB |
| Communication Protocol | SmartSDK, USB (HID, CDC) |
| Depth Of Field | Code 39 (3 mil): 35 mm to 65 mm Code 39 (5 mil): 30 mm to 75 mm EAN 13 (13 mil): 55 mm to 105 mm Data Matrix (5 mil): 30 mm to 65 mm Data Matrix (10 mil): 25 mm to 90 mm Code 128 (10 mil): 25 mm to 105 mm QR Code (10 mil): 25 mm to 95 mm |
| Data Interface | USB 2.0 |
| Digital I/O | DB15 connector provides data transmission. Supports device triggering and restarting via pressing button on side. |
| Power Supply | 5 VDC (Recommended: USB 3.0 provides power supply) |
| Max Power Consumption | Avg.: 2.2 W @ 5 VDC; max.: 4.5 W @ 5 VDC |
| Focal Length | 4.63 mm |
| Lens Mount | M5.8-mount |
| Ambient Illumination | 0 lux to 10000 lux |
| Light Source | Red |
| Aiming System | Green LED |
| Indicator | Power indicator (POWER), status indicator (OK/NG) |
| Dimension | 45 mm × 43 mm × 25 mm (1.8" × 1.7" × 1.0") |
| Weight | Approx. 68.5 g (0.2 lb.) |
| Ingress Protection | IP54 |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | IDMVS |
| Certification | CE, RoHS, KC |
| Mono | Mono |
