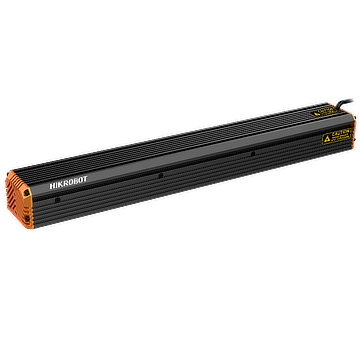

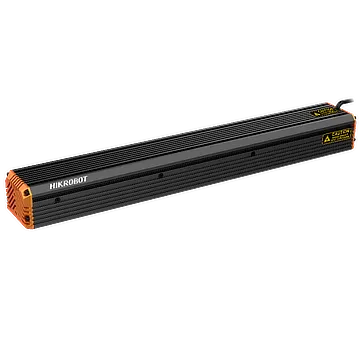

Bar Light MV-LLDS-H-350-40-R
The irradiation direction and angle can be adjusted freely.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Mounts from multiple sides for installation flexibility. Uses premium LEDs for bright, stable, consistent illumination.
Product Highlights
Beam direction and angle adjust freely. — Mounts from multiple sides for installation flexibility. — Uses premium LEDs for bright, stable, consistent illumination.
Specifications
| Product Model | MV-LLDS-H-350-40-R |
|---|---|
| Type | MV-LLDS-H-350-40-R |
| Color | Red |
| Best Working Distance | 30 mm to 500 mm |
| Wavelength | 625 nm |
| Color Temperature | W: 6000K to 7500K |
| Power | 20.9 W |
| Connector Type | SMR-03V-B |
| Dimension | 333 mm × 40 mm × 30 mm |
| LED Rows | 6 |
| Weight | 0.66 kg |
| Cable Length | 1 m |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Diffuse Plate Included | PMMA |
| Emitting Area Dimension | 321 mm × 31.6 mm |
| Safety Class | No danger |
| Safety Distance | / |
