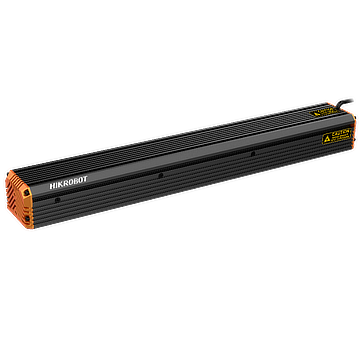

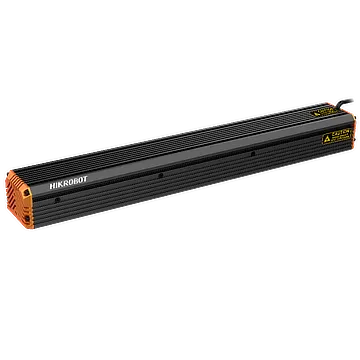

Bar Light MV-LLDS-H-400-40-IR850
The irradiation direction and angle can be adjusted freely.
- Beam direction and angle adjust freely.
- Mounts from multiple sides for installation flexibility.
- Uses premium LEDs for bright, stable, consistent illumination.
Camera Solutions
Bar Light MV-LLDS-H-400-40-IR850 is a machine vision light from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-LLDS-H-400-40-IR850. Key data: emitting area dimension 366 mm × 31.6 mm, color IR850, power 33.8 W. Typical use is creating stable, repeatable illumination. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Mounts from multiple sides for installation flexibility. Uses premium LEDs for bright, stable, consistent illumination.
Product Highlights
Beam direction and angle adjust freely. — Mounts from multiple sides for installation flexibility. — Uses premium LEDs for bright, stable, consistent illumination.
Specifications
| Product Model | MV-LLDS-H-400-40-IR850 |
|---|---|
| Type | MV-LLDS-H-400-40-IR850 |
| Color | IR850 |
| Best Working Distance | 30 mm to 500 mm |
| Wavelength | 850 nm |
| Color Temperature | W: 6000K to 7500K |
| Power | 33.8 W |
| Connector Type | SMR-03V-B |
| Dimension | 378 mm × 40 mm × 30 mm |
| LED Rows | 6 |
| Weight | 0.74 kg |
| Cable Length | 1 m |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Diffuse Plate Included | PMMA |
| Emitting Area Dimension | 366 mm × 31.6 mm |
| Safety Class | No danger |
| Safety Distance | / |
